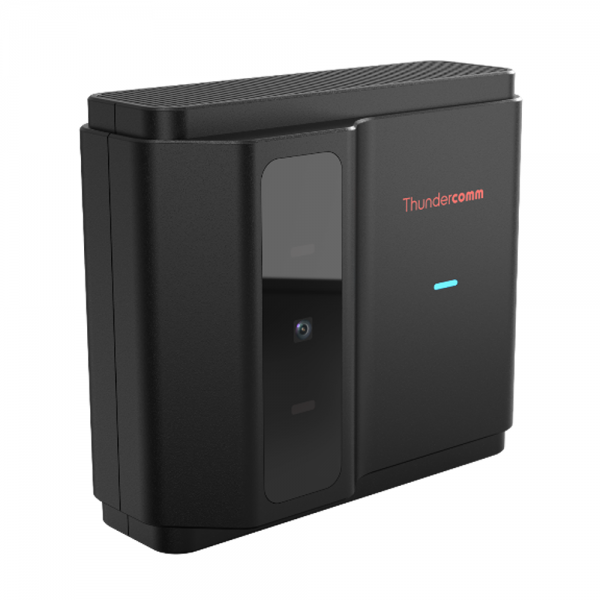

TurboX AOCVS Reference Kit

TurboX AOCVS Reference Kit is a low power AI vision solution based on Qualcomm AOCVS (Always On Computer Vision Sensor), which consists of an integrated ultra-low power imaging sensor and a processor running AI vision algorithms including face detection, people detection and object detection etc. TurboX AOCVS Reference Kit battery powered, it includes built-in reference algorithms, training tools as well as the back-end system for device and AI models management.

Product Features

ultra-low-power

Ultra low power

Always-on intelligent vision @

<1mW average end-to-end power

aocvs-low-cost

Low cost
Low single digits for HW&

CV algorithms

aocvs-privacy

Privacy
Images can be optionally not stored

or emitted sends only data output

Typical Use Case

Mini Retail Channel

  • Object Detection for shelf product inventory
  • People Detection to wake up retail system for interactivity
  • People auto counting and heat maps

Smart Surveillance

  • Always on Intelligent Occupancy Trigger for intrusion detection
  • Occupancy sensing for regulating HVAC / Lighting systems
  • Indoor activities monitor and immobility detection for elderly Care

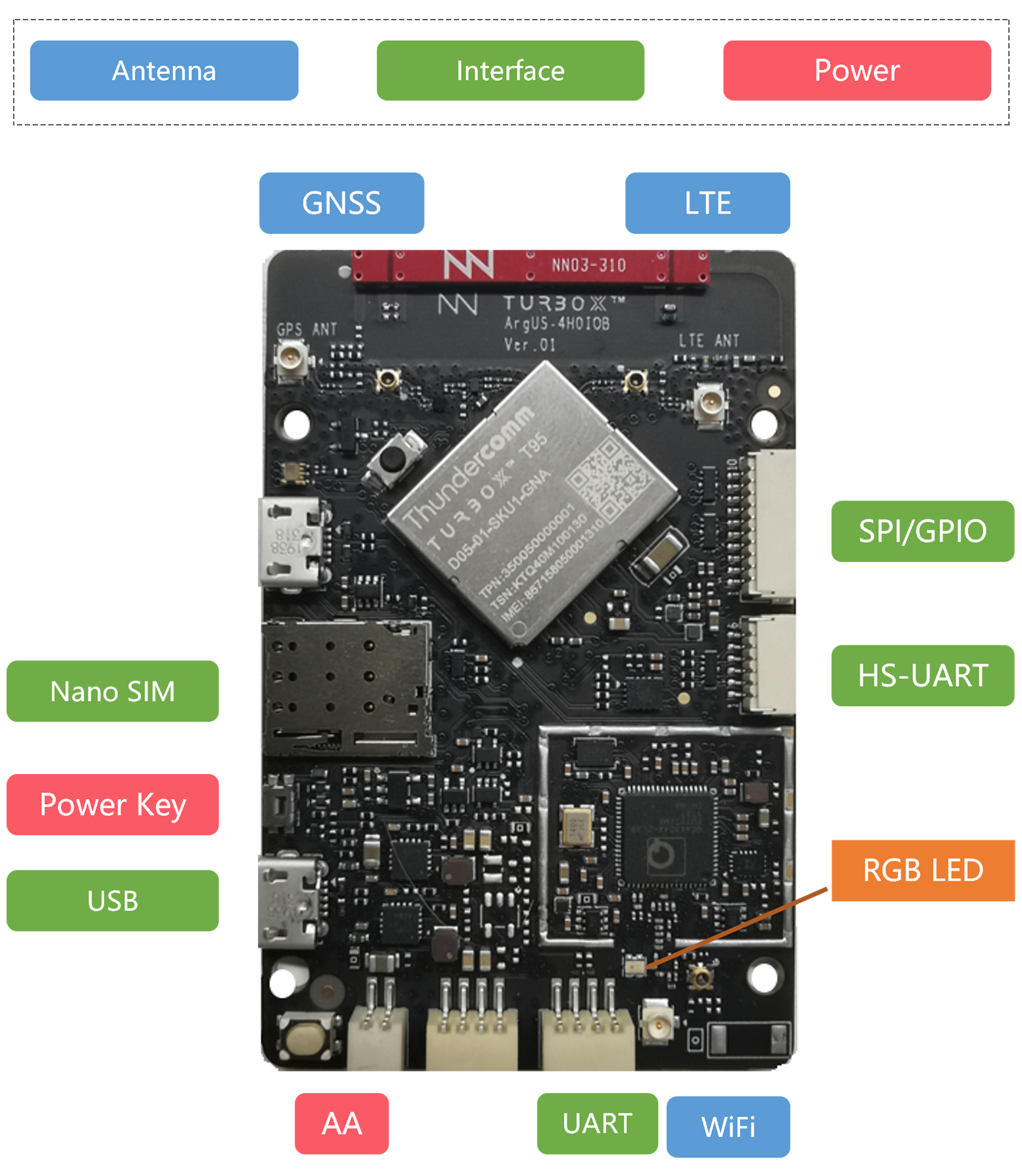

MDM9205 based LPAI Vision Main Board

CategoryDescriptionRemark
Dimension40 x 75 x 5 mmCustomizable
ChipsetMDM9205Cortex A7 up to 800MHz
Air InterfaceLTECat.NB, LTE Cat.MGlobal Multi-Band support
GNSS
WiFi   (for location only)No data communication
SensorAccelerometer + Gyro
Temperature + Humidity
Ambient Light Sensor
InterfaceUART,   HS-UART,   JTAGFor debugging
SPI/GPIOFor AOCVS
SIMNano   SIMeSIM   optional
USBMicro   Type BFW   Download / Debug
Power4 x   AA BatteryLi-FeS2 Battery Recommended
LED3   colors status LED
KeyPower   / Function Key

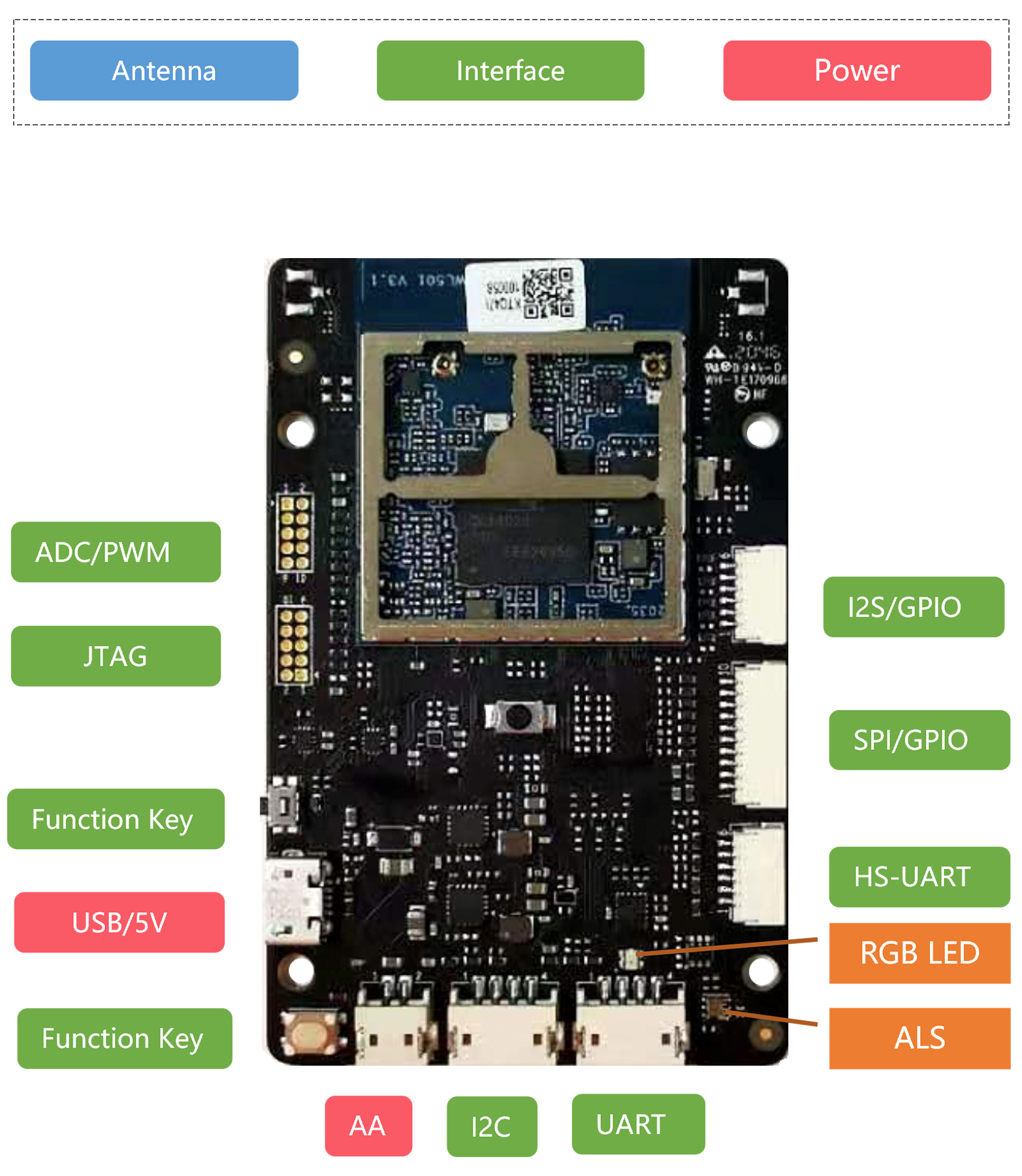

QCA4020 based LPAI Vision Main Board

CategoryDescriptionRemark
Dimension40 x 75 x 5 mmCustomizable
ChipsetQCA4020Cortex M4
Air InterfaceDual-Band   802.11 a/b/g/nsingle   stream 1x1
BLE   5.0
ZigBee   15.4
SensorAccelerometer + Gyro
Temperature + Humidity
Ambient Light Sensor
InterfaceUART,   HS-UART,   JTAG, SPI
SPI/GPIOFor AOCVS
USBMicro   Type BFW   Download / Debug
Power4 x   AA BatteryLi-FeS2 Battery Recommended
LED3   colors status LED
KeyFunction Key

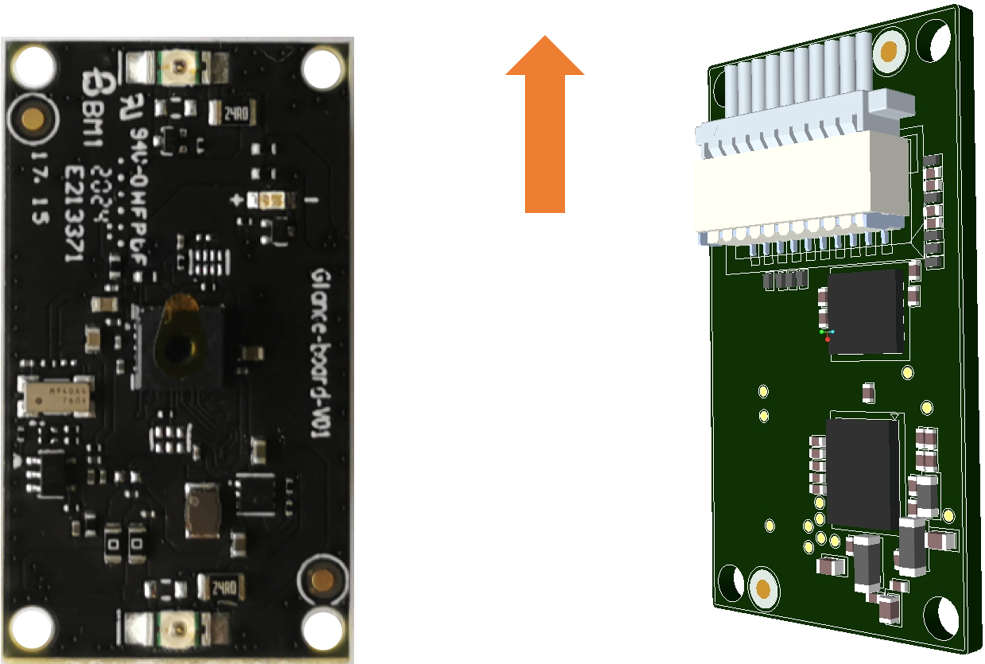

QCC112 based AOCVS Module

CategoryDescriptionRemark
Dimension30 x 17 x 3 mmCustomizable
ProcessorQCC112CortexM0
Image Sensor ModuleImage Sensor + LensFOV=70º   (H), 90º(D)
Visible   Distance 10m
Light   conditions:100 to 1,000 lux
InterfaceSH1.0   10pins ConnectorPower 1.8v/3.3v,   SPI, RST, GNS
