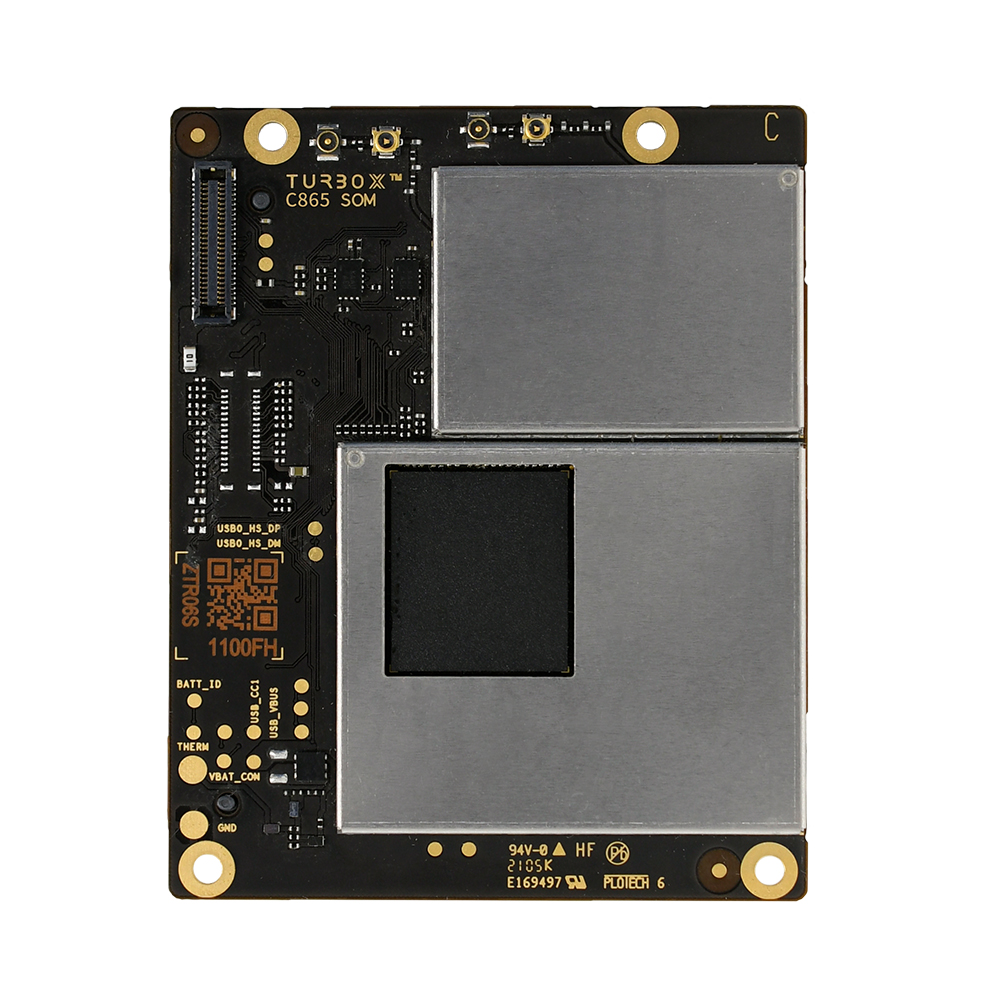

Thundercomm TurboX™ C865 SOM is a highly integrated System On Module (SOM) which is powered by premium-tier Qualcomm Snapdragon™ QCS8250 processor. TurboX™ C865 supports Android, featuring in advanced AI increases, optimized 5G system, huge camera and video advancements and evolved graphics. It is an ideal platform for IoT products require high computing power, 5G connection, advanced camera capability, and superior graphics performance.

Overview

C865 SOM Applications

Service Robot

Industrial Robot/Control

Automated Guided Vehicle

Self-driving Vehicle for logistics

Consumption/Entertainment Robot

Industrial Drone

C865 SOM Features

5th generation Qualcomm AI Engine is 2x more powerful than its predecessor

15 TOPS AI performance while using lower power

All-new Qualcomm Hexagon Tensor Accelerator

New CV-ISP operates at 2 Giga-pixels per second

C865 SOM

No limit HD slow-motion video capture at 960 FPS

First Dolby Vision for video capture on mobile

Kryo CPU provides 25% faster performance

True 10-bit HDR gaming and first-ever updatable GPU drivers on mobile

Specifications

Category Description
Platform Snapdragon™ QCS8250
Qualcomm® Kryo™ 585
Qualcomm® Adreno™ 650 GPU, Adreno 665 VPU, Adreno 995 DPU
Qualcomm® Hexagon™ DSP with quad HVX
Qualcomm SpectraTM 480 image processing
Memory 8GB +128GB
Connectivity WiFi: QCA6391 (802.11 a/b/g/n/ac/ax, 2x2Mino)
Encode 8K@30fps (H.264/H.265/VP8)
Decode 8K@60fps (H.264/H.265/ VP8/VP9)
Display Interfaces 2x MIPI-DSI 4-lane ；Support 5040*2160@60fps
Camera Interfaces 6x MIPI-CSI, 4-lane,(2.5 Gbps per lane) supports CMOS and CCD sensors up to 64 MP sensors
Other Interfaces 1 x  Sound Wire, 2x RF connector for WiFi, 2 x USB 3.1, 2 x SSC I/F for sensor, 2 x PCIE, 1 x UART, 1 x SDC for micro-SD, 6 x DMICs, 2 x Speakers, GPIOs
Operating Environment Operation Temperature: –25℃ ~ +75℃
Operation  Humidity: 5%~95%, non-condensing
Voltage 3.8V ~ 4.2V
Dimension 45 x 56 x 9mm B2B Connector
OS Support Android 10
