AI Kit
Thundercomm AI Kit is the most powerful on-device AI vision enabled edge device for developers. Thundercomm AI Kit helps developers and terminal manufacture to port their AI algorithm and AI application. It is designed with Qualcomm® SDA845 and provide device for development, algorithm SDK, develop guide and demo code.
Applications:

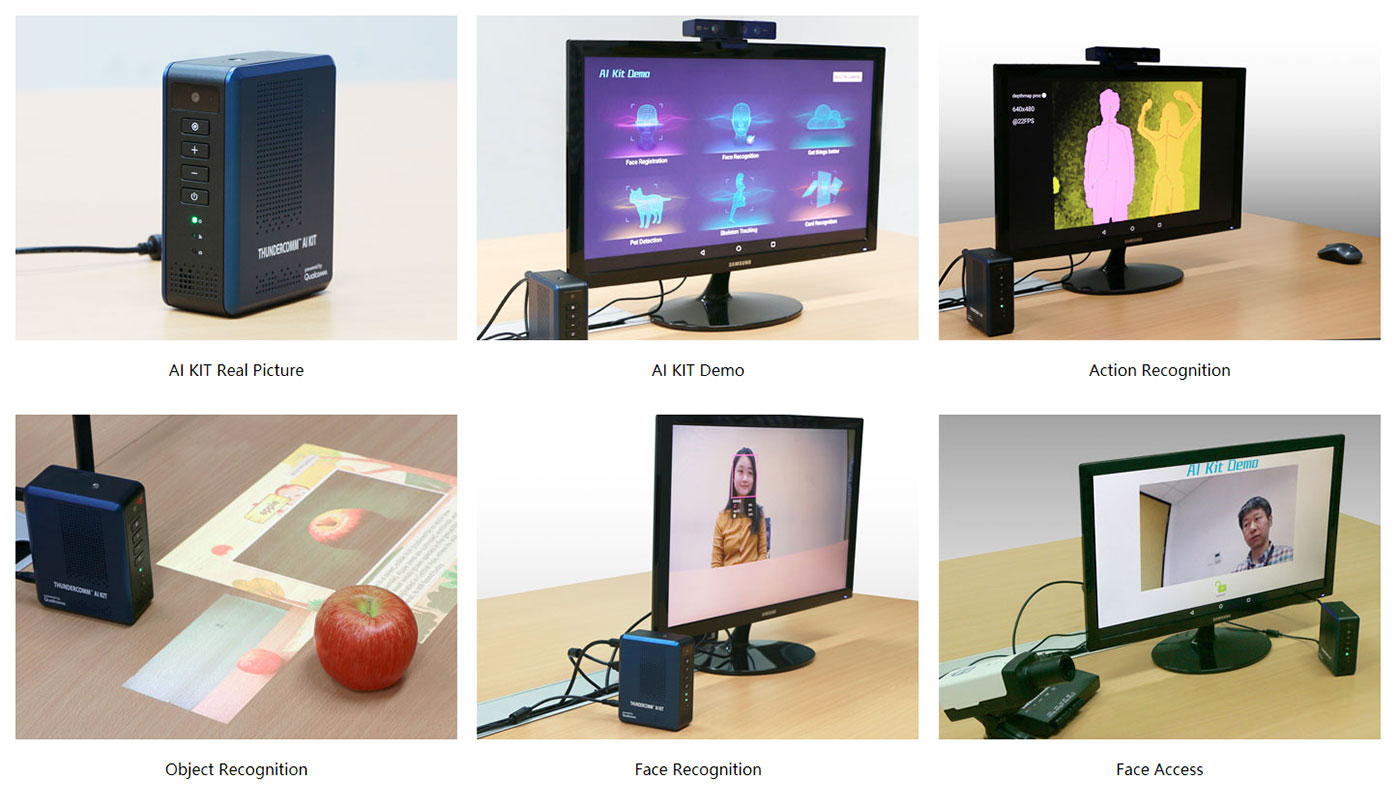

TurboX AI KIT Show

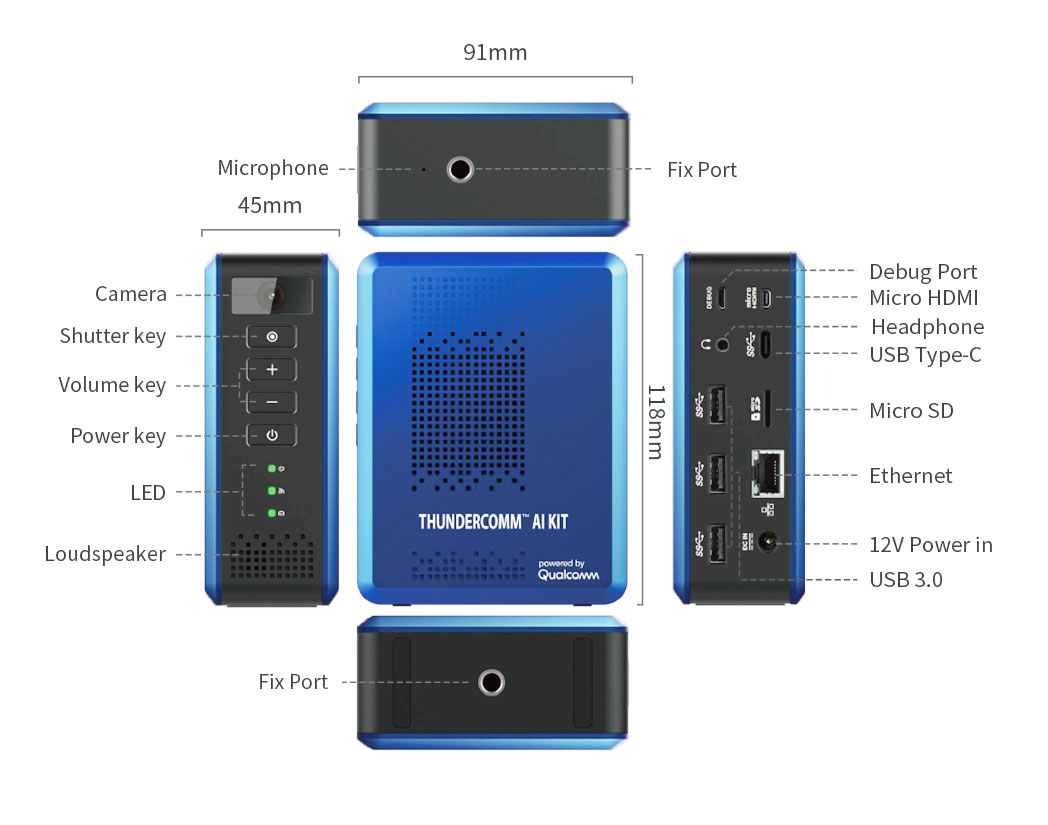

AI Kit Interface Diagram
AI Kit Advantage
Algorithm SDK
Algorithm SDK includes some optimized algorithm and demo application's source code, such as face recognition and object detection. Developers can use algorithm SDK to develop their own AI application. Also, developers can integrated their own AI algorithm to demo application conveniently.
Powerful computing
AI KIT integrates newest Qualcomm Hexagon 685 DSP, new vector engine and heterogeneous computing (CPU,DSP and GPU), providing more than 450Gflop computing power to do AI visual processing of 4k video.
Flexible visual solution
Support multiple camera solution, including built-in Ultra HD camera, USB3.0 camera and IP Camera.
Product Hardware SPEC
| Module | Item | Spec |
| Computing | CPU | Qualcomm SDA845 processor, 8x Qualcomm® Kryo™ 385 @ 2.8GHz |
| GPU | Adreno 630 GPU | |
| DSP | Hexgan 685 DSP | |
| ISP | Qualcomm Spectra™ 280 image sensor processor | |
| Memory | RAM | 8GB LPDDR4 |
| ROM | 64GB UFS2.1 | |
| SD Card | Support MicroSD Card | |
| Camera | Built in Camera | 8MP, FOV 120 degree; |
| External Camera | USB3.0 camera (accessory, not included in release) | |
| Display | HDMI | 1x Micro HDMI, 4k Ultra HD |
| Type C | 4k Ultra HD | |
| Video | VPU | Support for HDR10, HLG, and H.265 (HEVC) 4k@60fps video capture |
| Audio | Speaker | 1x speaker |
| Audio out | 1x Headsetout | |
| Microphone | 1x microphone | |
| Wireless Connectivity | WIFI | 2.4G/5G,802.11 a/b/g/n/ac 2x2 MIMO |
| Wired Connectivity | USB | 3x USB3.0 host, 1x 3.0 Type C |
| Ethernet | 1x GbE. | |
| Debug Port | Micro USB | 1x Micro USB (connecting to serial port for debug purpose) |
| Indicator | LED | RGB Led: Power status, WIFI status, Ethernet status; |
| Input | Buttons | Power key/ Volume up/down key/Camera snapshot key |
| Sensors | 9-axis sensor | Gyroscope & accelerometer & geomagnetic sensor |
| Power | Power charging | 12v DC |
Product Software SPEC
| Module | Feature |
|---|---|
| OS | Android O |
| AI Framework | Tensorflow, Caffe/Caffe2, ONNX,SNPE |
| AI Algorithm SDK | Face Detection & Face Recognition & Emotion Detection & Age Detection & Gender Detection algorithm |
| Object Detection algorithm | |
| AI Sample Application | Face Recognition & Emotion Detection & Age Detection & Gender Detection algorithm demo |
| Objection Detection algorithm demo | |
| Camera | Support USB3.0 Camera, 1080p@30fps, Accessing USB camera with standard camera API in Android SDK |
| Ultra HD camera preview, recording and snapshot | |
| RTSP Client | |
| Graphic | OpenGLES3.2, OpenCL2.0 full |
| Type | Category | Document Name | Update Date |
| Public Documents | Development Guide | Qualcomm Neural Processing SDK Programming Guide | - |
| SDK Package | Qualcomm Neural Processing SDK | - | |
| Private Documents | Get the Private Documents > | ||
