11. RUBIK Pi 3蓝牙工具 rubikpi_btapp使用指南

11.1 启动蓝牙并完成配对

1. 运行 app。

   rubikpi_btapp

   主菜单显示如下。主菜单中包含了支持的各功能模块，输入对应编号进入相应模块菜单（其中 0：退出程序，99：打印帮助信息，1：回到上一级菜单）。

   BSA_trace 1@ 01/01 00h:31m:18s:746ms: BSA_MgtOpenInit
   BSA_trace 2@ 01/01 00h:31m:18s:746ms: BSA_MgtOpen (/usr/src/rubikpi-btapp/)
   Created thread with thread_id=  8119f120
   BSA_trace 3@ 01/01 00h:31m:18s:746ms: bsa_cl_mgt_init
   BSA_trace 4@ 01/01 00h:31m:18s:746ms: UIPC_Init
   BSA_trace 5@ 01/01 00h:31m:18s:746ms: UIPC_Open ChId:3

   *****************Main Menu menu*******************
            1 ==>main
            2 ==>manager
            3 ==>opp
            4 ==>a2dp
            5 ==>pan
            6 ==>pbap
            7 ==>sap
            8 ==>hfp ag
            9 ==>hfp client
            10 ==>hfp sw
            11 ==>av
            12 ==>data gw
            13 ==>fm
            14 ==>ftp
            15 ==>hid dev
            16 ==>hid host
            17 ==>headless
            18 ==>health
            19 ==>map
            20 ==>nsa
            21 ==>ctn
            22 ==>3d
            23 ==>test
            24 ==>vsc
            25 ==>ble
            26 ==>ble_ancs
            27 ==>ble_cscc
            28 ==>ble_blp
            29 ==>ble_eddystone
            30 ==>ble_hrc
            31 ==>ble_htp
            32 ==>ble_pm
            33 ==>ble_rscc
            34 ==>ble_tvselect
            35 ==>ble_wifi
            99 ==>help
            0 ==>quit
    ****************************************************
   Select action =>

2. 输入“2”并按回车进入 manager 菜单（其中包含了 bt 基本的配对连接功能）。manager 菜单显示如下。

   Select action => 2

   *****************manager menu*******************
            1 ==>main_menu
            99 ==>help_menu
            0 ==>quit
    ****************************************************
   Bluetooth Application Manager menu:
           2 => Init
           3 => Abort Discovery
           4 => Discovery
           5 => Discovery test
           6 => Bonding
           7 => Cancel Bonding
           8 => Remove device from security database
           9 => Services Discovery (all services)
           10 => Device Id Discovery
           11 => Set local Device Id
           12 => Get local Device Id
           13 => Stop Bluetooth
           14 => Restart Bluetooth
           15 => Accept Simple Pairing
           16 => Refuse Simple Pairing
           17 => Enter BLE Passkey
           18 => Act As HID Keyboard (SP passkey entry)
           19 => Read Device configuration
           20 => Read Local Out Of Band data
           21 => Enter remote Out Of Band data
           22 => Set device visibility
           23 => Set device BLE visibility
           24 => Set AFH Configuration
           25 => Set Tx Power Class2 (specific FW needed)
           26 => Set Tx Power Class1.5 (specific FW needed)
           27 => Change Dual Stack Mode (currently:DUAL_STACK_MODE_BSA)
           28 => Set Link Policy
           29 => Enter Passkey
           30 => Get Remote Device Name
           31 => RSSI Measurement
           32 => Tx Power Measurement
           33 => Set class of device
           96 => Kill BSA server
           97 => Connect to BSA server
           98 => Disconnect from BSA server
           0 => Exit
   Select action =>


3. 初始化 manager。

   注意

   其他菜单需要基于 manager 中建立的 socket 进行通信，所以在执行其他菜单操作之前需要先执行 manager 初始化操作。

   输入“2”开始初始化：

   Select action => 2
   DEBUG: app_mgr_read_config: Enable:1
   DEBUG: app_mgr_read_config: Discoverable:1
   DEBUG: app_mgr_read_config: Connectable:1
   DEBUG: app_mgr_read_config: Name:BSA_HOGP
   DEBUG: app_mgr_read_config: Bdaddr be:ef:be:ef:25:6a
   DEBUG: app_mgr_read_config: ClassOfDevice:00:04:24 => Audio/Video
   DEBUG: app_mgr_read_config: RootPath:/usr/src/rubikpi-btapp/pictures
   DEBUG: app_mgr_read_config: Default PIN (4):0000
   ERROR: app_xml_read_db: open(/usr/src/rubikpi-btapp/bt_devices.xml) failed
   ERROR: app_mgr_read_remote_devices: app_xml_read_db failed:-1
   ERROR: app_mgr_config: No remote device database found
   BSA_trace 6@ 01/01 00h:33m:52s:562ms: BSA_DmGetConfigInit
   BSA_trace 7@ 01/01 00h:33m:52s:562ms: BSA_DmGetConfig
   DEBUG: app_mgr_get_bt_config: Enable:1
   DEBUG: app_mgr_get_bt_config: Discoverable:1
   DEBUG: app_mgr_get_bt_config: Connectable:1
   DEBUG: app_mgr_get_bt_config: Name:BSA_HOGP
   DEBUG: app_mgr_get_bt_config: Bdaddr be:ef:be:ef:25:6a
   DEBUG: app_mgr_get_bt_config: ClassOfDevice:00:04:24
   DEBUG: app_mgr_get_bt_config: First host disabled channel:79
   DEBUG: app_mgr_get_bt_config: Last host disabled channel:79
   DEBUG: app_mgr_sec_set_security:
   BSA_trace 8@ 01/01 00h:33m:52s:564ms: BSA_SecSetSecurityInit
   BSA_trace 9@ 01/01 00h:33m:52s:564ms: BSA_SecSetSecurity
   Add all devices found in database
   ERROR: app_xml_read_si_db: open(/usr/src/rubikpi-btapp/si_devices.xml) failed
   ERROR: app_read_xml_si_devices: app_xml_read_si_db failed: -1
   BSA_trace 10@ 01/01 00h:33m:52s:564ms: BSA_DmSetConfigInit
   DEBUG: app_mgr_set_bt_config: Enable:1
   DEBUG: app_mgr_set_bt_config: Discoverable:1
   DEBUG: app_mgr_set_bt_config: Connectable:1
   DEBUG: app_mgr_set_bt_config: Name:BSA_HOGP
   DEBUG: app_mgr_set_bt_config: Bdaddr be:ef:be:ef:25:6a
   DEBUG: app_mgr_set_bt_config: ClassOfDevice:00:04:24
   DEBUG: app_mgr_set_bt_config: First host disabled channel:79
   DEBUG: app_mgr_set_bt_config: Last host disabled channel:79
   BSA_trace 11@ 01/01 00h:33m:52s:565ms: BSA_DmSetConfig
   BSA_trace 12@ 01/01 00h:33m:52s:676ms: BSA_TmReadVersionInit
   BSA_trace 13@ 01/01 00h:33m:52s:676ms: BSA_TmReadVersion
   Server status:0
   FW Version:3.6.6.1154
   BSA Server Version:BSA0107_00.26.00_qcom_qcs6490
   BSA Server Version Information:Use_local_timestamp_for_logs_20240814
   DEBUG: app_dm_get_dual_stack_mode: Get DualStackMode
   BSA_trace 14@ 01/01 00h:33m:52s:678ms: BSA_DmGetConfigInit
   BSA_trace 15@ 01/01 00h:33m:52s:678ms: BSA_DmGetConfig
   Current DualStack mode:DUAL_STACK_MODE_BSA
   Select action =>


4. 搜索设备。

   输入“4”搜索设备（由于应用与服务之间通信采用异步通信，所以需要等待一段时间才能打印出搜索到的设备）。

   Select action => 4
   Start Regular Discovery
   BSA_trace 16@ 01/01 01h:45m:29s:988ms: BSA_DiscStartInit
   BSA_trace 17@ 01/01 01h:45m:29s:988ms: BSA_DiscStart
   Select action => New Discovered device:0
           Bdaddr:69:00:83:7f:b1:15
           Name:
           ClassOfDevice:00:00:00 => Misc device
           Services:0x00000000 ()
           Rssi:-47
           DeviceType:BLE InquiryType:BLE AddressType:Random
           Extended Information:
               Flags:0x1a [LE_General Controller_LE/BR/EDR Host_LE/BR/EDR]
               TxPower:12 dB
               Manufacturer Specific CompanyId:0x004C [Apple, Inc.]:
                   Data: 10 05 65 1C 6D B4 B4
   ......
   ......
   Discovery complete

5. 配对。

   输入“6”进入 bonding 菜单，这时会将之前搜索到的 dev 打印出来，输入对应的 dev 编号就可以与相应的设备进行配对绑定，然后根据提示通过输入“15”或“16”确定是否接受配对（“15”为接受，“16”为拒绝），接受之后就会完成配对的流程，配对成功。

   Dev:0
           Bdaddr:5a:20:4e:6e:f7:57
           Name:
           ClassOfDevice:00:00:00 => Misc device
           Rssi:-55
   ......

   可以通过 7 => Cancel Bonding 取消已经绑定的蓝牙设备。

11.2 蓝牙文件传输

在主菜单下输入“3+回车”，进入 opp 菜单，进行文件传输测试：

Select action => 3

*****************opp menu*******************
         1 ==>main_menu
         99 ==>help_menu
         0 ==>quit
 ****************************************************
Bluetooth Application OPP Menu:
    2 => opp server enable
    3 => opp server disable
    4 => ops enable auto accept
    5 => ops disconnect device
    6 => opp client enable
    7 => opp client disable
    8 => push vcard
    9 => exchange vcard
    10 => pull vcard
    11 => push /usr/src/rubikpi-btapp/test_file.txt
    12 => opc disconnect device
    13 => discovery
    0 => Exit
Select action =>

• 接收文件测试

1. 上一节中执行 rubikpi-btapp 程序的终端以下简称终端 1。另外起一个终端 2，进入到蓝牙应用路径下（/usr/src/rubikpi-btapp/），使用如下命令新建接收目录 push。

   mkdir push

2. 回到终端 1 的 opp 菜单下，输入“2”使能 opp server 端。

   Select action => 2
   app_start_ops
   BSA_trace 6@ 01/01 00h:40m:39s:334ms: BSA_OpsEnableInit
   BSA_trace 7@ 01/01 00h:40m:39s:334ms: BSA_OpsEnable
   app_start_ops Status: 0
   Select action =>


3. 输入“4”使能自动接收，然后使用与魔方派3配对的对端设备发送测试文件，这时魔方派3就会自动将接收到的文件保存在 push 路径下，发送完成后，通过终端 2 在 push 路径下就可以看到刚刚传输的文件。

   Select action => 4
   BSA_trace 8@ 01/01 00h:41m:54s:528ms: BSA_OpsAccessInit
   app_ops_auto_accept
   DEBUG: app_ops_auto_accept: app_ops Auto - oper:1 access:4 Name:/usr/src/rubikpi-btapp/push/
   BSA_trace 9@ 01/01 00h:41m:54s:528ms: BSA_OpsAccess
   app_ops Auto - oper:2 access:4 Name:/usr/src/rubikpi-btapp/pull/Abdul Iqbal.vcf
   BSA_trace 10@ 01/01 00h:41m:54s:530ms: BSA_OpsAccess
   Select action =>


4. 输入“3”关闭 server 端。

   Select action => 3
   app_stop_ops
   BSA_trace 11@ 01/01 00h:42m:52s:588ms: BSA_OpsDisableInit
   BSA_trace 12@ 01/01 00h:42m:52s:588ms: BSA_OpsDisable
   Select action =>


• 发送文件测试

1. 通过终端 2 进入到应用路径下（usr/src/rubikpi-btapp/）,新建想要传输的文件 test_file.txt 并用如下命令写入内容：

   touch ./test_file.txt
   echo RUBIKPI_TEST > test_file.txt

2. 回到终端 1 的 opp 菜单，输入“6”使能 opp client 端。

   Select action => 6
   app_opc_start
   BSA_trace 13@ 01/01 00h:44m:27s:670ms: BSA_OpcEnableInit
   BSA_trace 14@ 01/01 00h:44m:27s:670ms: BSA_OpcEnable
   app_opc_start Status: 0
   Select action =>

3. 输入“11”准备发送测试文件，然后选择想要发送到的对端设备编号并回车，这时对端设备准备接收文件，当文件接收完毕后，输入“7”关闭 client 端。

11.3 蓝牙音频测试

• 音频播放测试

  a. 在主菜单中输入“11”进入 av 模式。

  Select action => 11

  *****************av menu*******************
           1 ==>main_menu
           99 ==>help_menu
           0 ==>quit
   ****************************************************
  Bluetooth Application AV menu
    AV Point To Point menu:
      2 => Abort Discovery
      3 => Start Discovery
      4 => Display local source points
      5 => AV Register (Create local source point)
      6 => AV DeRegister (Remove local source point)
      7 => AV Open (Connect)
      8 => AV Close (Disconnect)
      9 => AV Play AVK Stream
      10 => AV Play Tone
      11 => AV Toggle Tone
      12 => AV Play File
      13 => AV Start Playlist
      14 => AV Play Microphone
      15 => Accept Request
      16 => Refuse Request
      17 => AV Stop
      18 => AV Pause
      19 => AV Resume
      20 => AV Send RC Command (Inc Volume)
      21 => AV Send RC Command (Dec Volume)
      22 => AV Close RC
      23 => AV Send Absolute Vol RC Command
      24 => AV Configure UIPC
      25 => AV Change Content Protection (Currently:NONE)
      26 => AV Test SEC codec
      27 => AV Set Tone sampling frequency
      28 => AV Send Meta Response to Get Element Attributes Command
      29 => AV Send Meta Response to Get Play Status Command
      30 => AV Send Metadata Change Notifications
      31 => Change AV file for PTS test
      32 => Reset folder location for PTS test
      0 => Exit
  DEBUG: app_uipc_tx_thread: Starting UIPC Tx thread
  DEBUG: app_uipc_tx_thread: Waiting for play start
  DEBUG: app_playlist_create: New file Audio file found:2c.wav
  DEBUG: app_playlist_create: New file Audio file found:Remix_48K_2ch_16bit.wav
  WAV format of: /usr/src/rubikpi-btapp/test_files/av/2c.wav
      codec(PCM) ch(2) bits(16) rate(44100)
  WAV format of: /usr/src/rubikpi-btapp/test_files/av/Remix_48K_2ch_16bit.wav
      codec(PCM) ch(2) bits(16) rate(48000)
  app_av_cb.soundfile_list_size:2
  BSA_trace 6@ 01/01 00h:46m:41s:124ms: BSA_AvEnableInit
  BSA_trace 7@ 01/01 00h:46m:41s:124ms: BSA_AvEnable
  BSA_trace 8@ 01/01 00h:46m:41s:127ms: BSA_AvRegisterInit
  BSA_trace 9@ 01/01 00h:46m:41s:127ms: BSA_AvRegister
  BSA_trace 10@ 01/01 00h:46m:41s:134ms: UIPC_Open ChId:5
  BSA_trace 11@ 01/01 00h:46m:41s:134ms: uipc_rb_open name:rb_av id:5 size:20001 flags:x2
  BSA_trace 12@ 01/01 00h:46m:41s:134ms: uipc_rb_open: Size = 20001
  BSA_trace 13@ 01/01 00h:46m:41s:134ms: uipc_rb_open: Buffer = 0x7f97074010
  BSA_trace 14@ 01/01 00h:46m:41s:134ms: uipc_rb_open: semid = 0
  BSA_trace 15@ 01/01 00h:46m:41s:134ms: uipc_rb_open: wr_lockid = 1
  BSA_trace 16@ 01/01 00h:46m:41s:134ms: uipc_rb_open: wr_lockid.val = 20000
  BSA_trace 17@ 01/01 00h:46m:41s:134ms: uipc_cl_av_open AV channel opened
  BSA_trace 18@ 01/01 00h:46m:41s:134ms: UIPC_Ioctl ChId:5 Request:UIPC_WRITE_BLOCK (3)
  BSA_trace 19@ 01/01 00h:46m:41s:134ms: BSA_AvRegisterInit
  BSA_trace 20@ 01/01 00h:46m:41s:134ms: BSA_AvRegister
  Select action =>


  b. 输入“3”开始发现蓝牙音频设备，等待发现完成。

  c. 输入“7”进入连接模式。

  Select action => 7
  Bluetooth AV Open menu:
      0 Device from XML database (already paired)
      1 Device found in last discovery
  Select source =>


  d. 输入“1”，然后从刚刚扫描的列表中找到想要连接的蓝牙设备，输入对应的设备编号，开始配对。这里以设备 0 为例。

  Select source => 1
  Dev:0
          Bdaddr:60:6b:4d:3e:93:26
          Name:
          ClassOfDevice:00:00:00 => Misc device
          Rssi:-65
  Dev:1
  ......
  Select device =>

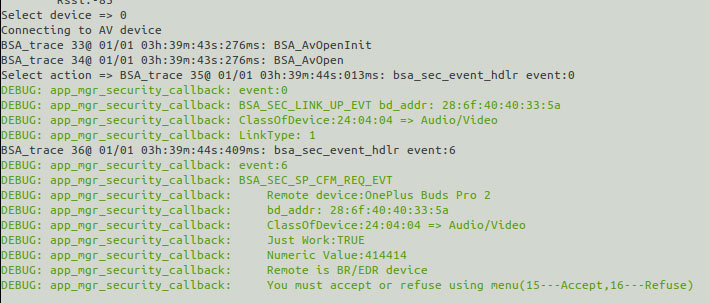

  e. 输入“15”或“16”确定是否接受连接请求。



  接受后，开始配对流程，直到蓝牙设备连接成功。

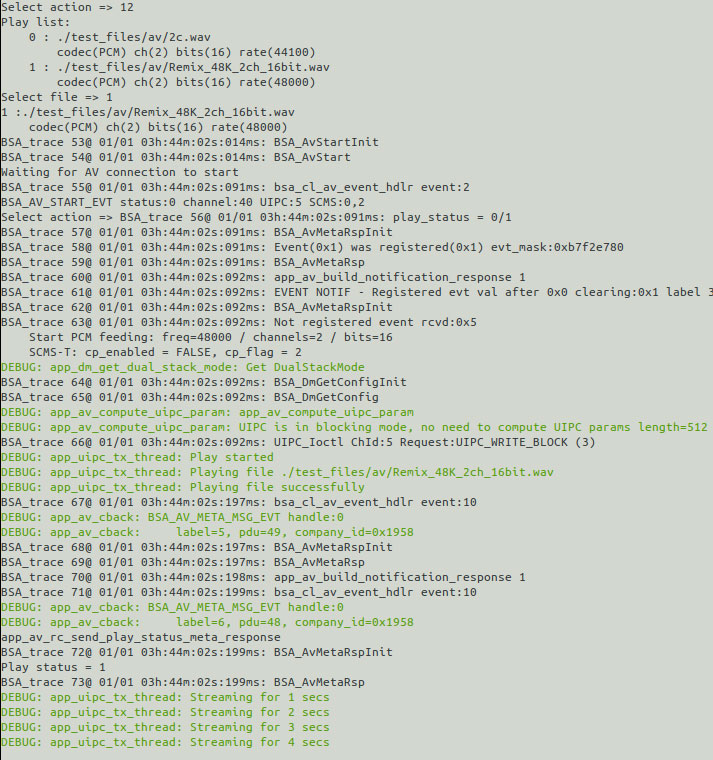

  f. 输入“12”进入播放菜单，选择想要播放的测试音频，开始播放。这时蓝牙音频设备就能够有声音输出了。



• 蓝牙录音测试

  a. 在主菜单输入“8”进入 ag 模式。

  Select action => 8

  *****************hfp ag menu*******************
           1 ==>main_menu
           99 ==>help_menu
           0 ==>quit
   ****************************************************
  Bluetooth Application HFP AG menu:
      2  => Initialize
      3  => Deinitialize
      4  => Discover Headset
      5  => Enable
      6  => Disable
      7  => Register
      8  => Deregister
      9  => Connect
      10  => Disconnect
      11  => Open audio
      12  => Close audio
      13  => Record audio file
      15 => Accept Request
      16 => Refuse Request
      14  => Stop record audio file
      17  => Play audio file
      18  => Stop Playing audio file
      19  => Display SCO route config
      20  => Indicate incoming call
      21  => PickUp call
      22  => HangUp call
      0  => Quit
  Select action =>


  b. 输入“2”初始化 ag 模式。

  c. 输入“4”发现蓝牙耳机，等待搜索完成。

  d. 输入“9”进入连接菜单。

  Select action => 9
  DEBUG: app_ag_open: Entering
  Bluetooth AG menu:
      0 Device from XML database (already paired)
      1 Device found in last discovery
  Select source =>

  e. 输入“1”从扫描结果中选择想要连接的蓝牙设备。

  f. 输入设备编号开始连接。

  g. 输入“15”或“16”确定是否接受连接。

  You must accept or refuse using menu(15---Accept,16---Refuse)

  h. 输入“11”打开 SCO 链路。

  再另开一个终端 3 执行如下命令：

  systemctl stop pulseaudio

  #开始录制蓝牙耳机麦克风音频
  agmcap /home/root/my.wav -D 100 -d 101 -r 16000 -b 16 -c 1 -i MI2S-LPAIF_VA-TX-PRIMARY -dkv 0xA3000003 -p 120 -n 2

  #ctrl+c结束录制

  systemctl start pulseaudio

  录制音频的保存路径为 /home/root/my.wav。

  mkdir /data/misc/display -p




  export PATH=/usr/bin:$PATH
  export EXTRALAYERS="meta-qcom-qim-product-sdk"
  export MACHINE=qcm6490-idp
  export DISTRO=qcom-wayland
  source setup-environment
  export CUST_ID="213195"
  export FWZIP_PATH="/home/scm/prj/6490PI/src/vendor/thundercomm/prebuilt/BP-BINs"
  export BB_ENV_PASSTHROUGH_ADDITIONS="$BB_ENV_PASSTHROUGH_ADDITIONS FWZIP_PATH CUST_ID"






  export PATH=/usr/bin:$PATH
  export EXTRALAYERS="meta-qcom-qim-product-sdk"
  export MACHINE=qcm6490-idp
  export DISTRO=rubikpi-debian
  source setup-environment
  export CUST_ID="213195"
  export FWZIP_PATH="/home/scm/prj/6490PI/src/vendor/thundercomm/prebuilt/BP-BINs"
  export BB_ENV_PASSTHROUGH_ADDITIONS="$BB_ENV_PASSTHROUGH_ADDITIONS FWZIP_PATH CUST_ID"


11.4 软件版本信息

带参数-v执行 rubikpi_btapp 程序，显示版本信息

rubikpi_btapp -v
