D660/D660Pro SOM

Thundercomm TurboX D660/D660Pro SOM是一款高度集成的智能模组,集成了多种系统功能,包括Qualcomm SDA660/SDM660处理器、内存、PMIC、音频CODEC和多模式无线连接。D660Pro SOM是一款多频段无线广域网模块,具有多种特性,包括LTE-FDD/TDD、WCDMA、CDMA、GSM和GNSS,可以帮助客户获得更多的价值定位,从而缩短产品开发周期,降低开发成本。

产品介绍

D660/D660Pro SOM典型连接框图

产品规格书

分类1分类2描述
平台芯片Qualcomm® Snapdragon™ SDA660/SDM660
CPU8x Qualcomm® Kryo™ 260 CPU,Up to 2.2 GHz
GPUQualcomm® Adreno™ 512 GPU, OpenGL® ES 3.2, Vulkan, DX12 FL 12, OpenCL 2.0 full profile
DSPQualcomm® Hexagon™ 680 DSP
操作系统Android 9
内存和存储LPDDR4x 3GB + eMMC 32GB/ LPDDR4x 4GB + eMMC 64GB
多媒体显示2x MIPI-DSI 4-lane, Up to 2560 × 1600 10 bit at 60 Hz
相机Qualcomm Spectra™ 160 Camera ISP: Dual 14-bit ISPs, 3x MIPI-CSI 4-lane, up to 25MP single or 16MP dual cameras
解码4K30 8 bit VP9/H264/VP8/MPEG4 and 10 bit HEVC
编码4K30 HEVC/H264/VP8/MPEG4
连接WiFi/BT802.11a/b/g/n/ac 2.4/5Ghz 2×2 MIMO & Bluetooth 5.0
Wireless WAN

(D660Pro Only)

SDR660 Transceiver, Downlink Carrier Aggregation (2CA)
1 SKU to support worldwide bands
• GSM / WCDMA / CDMA / LTE-FDD / LTE-TDD
• GPS/GLONASS/Beidou/Galileo
接口接口1 X USB 3.1, 1 X USB 2.0, 1 X SDIO 3.0, 2 X UIM , 1 X JTAG, 1 X Vibrator Driver, 3 X Flash LED Driver , 3 X LED Driver, 7 X BLSP, GPIO

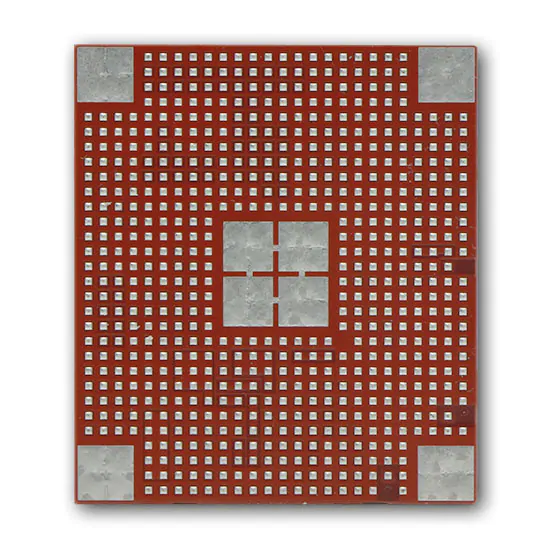

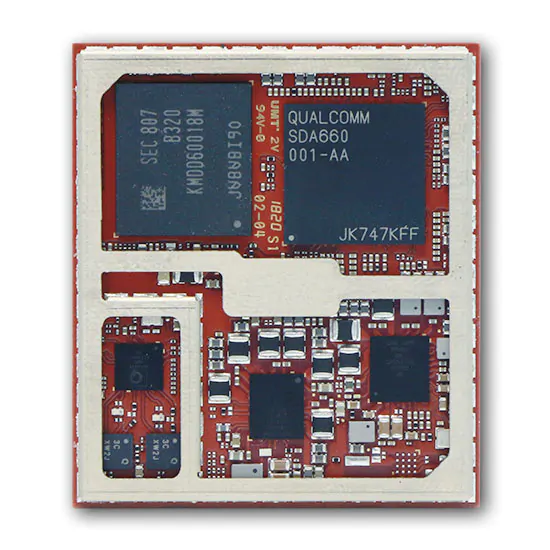

尺寸尺寸D660: 40 x 35 x 2.89 mm

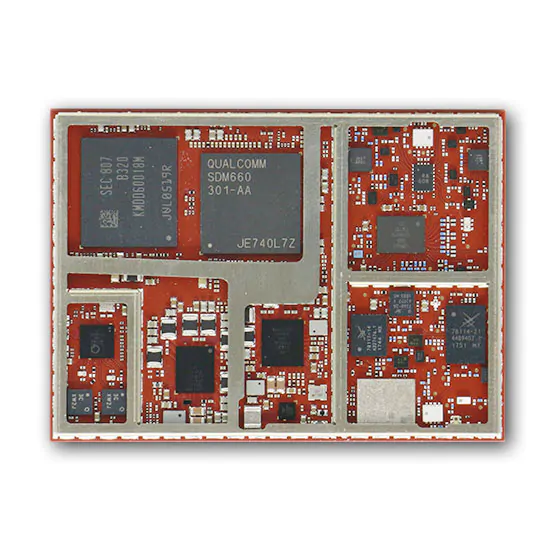

D660Pro:40 x 55 x 2.89 mm
系统环境电源+4.2V/3A input
运行温度-25℃ ~ +75℃
存储温度-30℃ ~ +85℃
运行湿度5%~95%, non-condensing
