D660/D660Pro SOM

Thundercomm TurboX™ D660/D660Pro SOM is a highly integrated System On module (SOM) which integrates system features with Qualcomm SDA660/SDM660 Processor, Memory, PMIC, Audio CODEC and multiple mode wireless connectivity. The D660Pro SOM is a multi-band Wireless WAN module with LTE-FDD/TDD, WCDMA, CDMA, GSM and GNSS features. It can help customers to get more value proposition to shorten product development cycle time and reduce development cost.

Overview

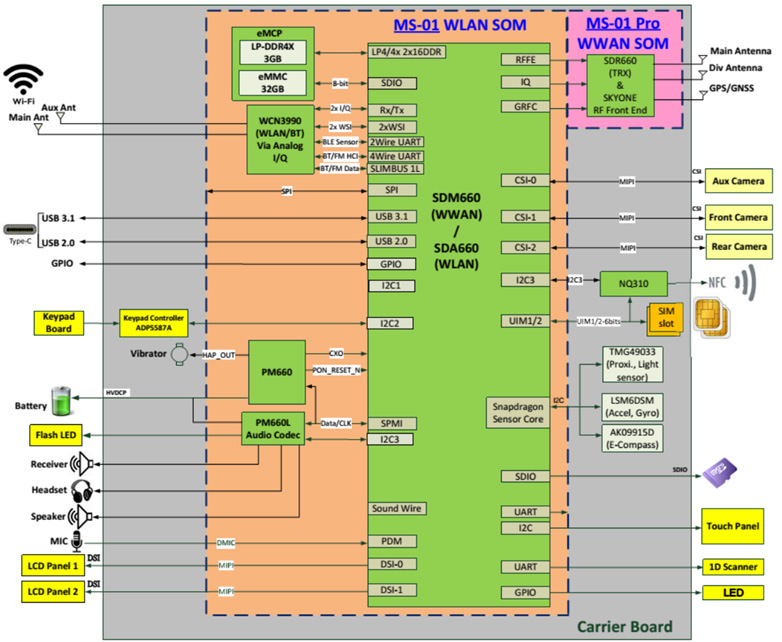

D660/D660Pro SOM Typical Connection Block Diagram

Specifications

CategoryItemDescription
PlatformChipsetQualcomm® Snapdragon™ SDA660/SDM660
CPU8x Qualcomm® Kryo™ 260 CPU,Up to 2.2 GHz
GPUQualcomm® Adreno™ 512 GPU, OpenGL® ES 3.2, Vulkan, DX12 FL 12, OpenCL 2.0 full profile
DSPQualcomm® Hexagon™ 680 DSP
OSAndroid 9
Memory and StorageLPDDR4x 3GB + eMMC 32GB/ LPDDR4x 4GB + eMMC 64GB
MultimediaDisplay2x MIPI-DSI 4-lane, Up to 2560 × 1600 10 bit at 60 Hz
CameraQualcomm Spectra™ 160 Camera ISP: Dual 14-bit ISPs, 3x MIPI-CSI 4-lane, up to 25MP single or 16MP dual cameras
Decode4K30 8 bit VP9/H264/VP8/MPEG4 and 10 bit HEVC
Encode4K30 HEVC/H264/VP8/MPEG4
ConnectivityWiFi/BT802.11a/b/g/n/ac 2.4/5Ghz 2×2 MIMO & Bluetooth 5.0
Wireless WAN

(D660Pro Only)

SDR660 Transceiver, Downlink Carrier Aggregation (2CA)
1 SKU to support worldwide bands
• GSM / WCDMA / CDMA / LTE-FDD / LTE-TDD
• GPS/GLONASS/Beidou/Galileo
InterfaceInterface1 X USB 3.1, 1 X USB 2.0, 1 X SDIO 3.0, 2 X UIM , 1 X JTAG, 1 X Vibrator Driver, 3 X Flash LED Driver , 3 X LED Driver, 7 X BLSP, GPIO
DimensionSizeD660: 40 x 35 x 2.89 mm
D660Pro:40 x 55 x 2.89 mm
System EnvironmentPower+4.2V/3A input
Operating Tempearture-25℃ ~ +75℃
Storage Temperature-30℃ ~ +85℃
Relative Humidity5%~95%, non-condensing
