D660/D660Pro Development Kit

The Qualcomm Snapdragon 660 platform is a fast mid-range ARM-based SoC largely found on tablets and handheld devices.Designed to support a leap in performance supporting on-device artificial intelligence, advanced photography and enhanced gaming, in addition to long battery life and fast LTE speeds.It is a ideal platform for developers to design their products quickly.

D660/D660Pro Development Kit Major Target Markets

Rugged Handheld

Rugged Tablet

Mobile POS

Vehicle Computer

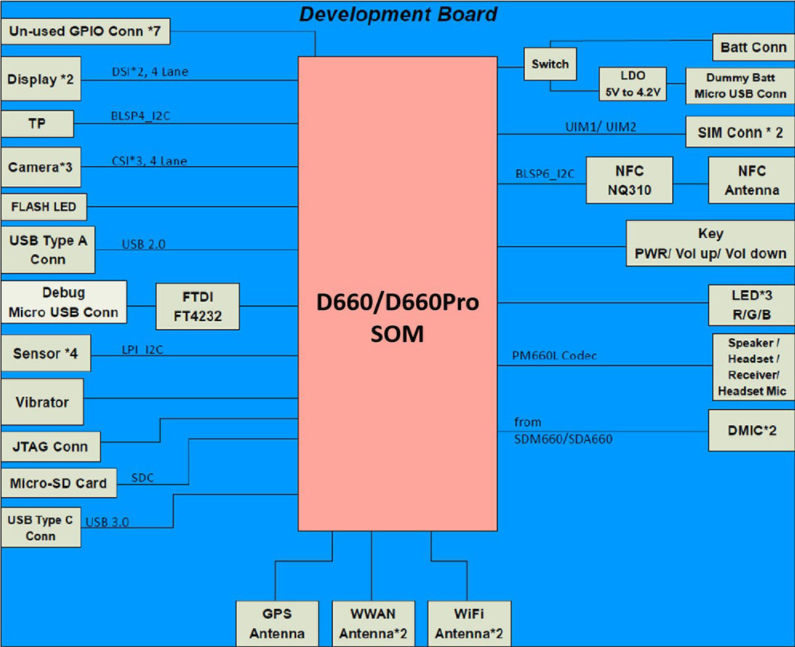

D660/D660Pro Development Kit Hardware Block Diagram

ItemDescription
ProcessorQualcomm® Kryo™ 260 CPU, Octa-core CPU
Qualcomm® Adreno™ 512 GPU
Qualcomm® Hexagon™ 680 DSP
MemoryLPDDR4x 3GB + eMMC 32GB / LPDDR4x 4GB + 64GB (Optional)
Display1 x LCD & Touch Panel, 5 inch
1 x LCD Connector
Camera3 x OV13855
Audio1 x 3.5mm headset
1 x Speaker wafer Connector
2 x DMICs
1 x External Codec Connector
Sensor1 x Ambient Light Sensor
1 x 6-axis Accelerometer + Gyro Sensor
1 x Proximity Sensor
1 x E-Compass Sensor
1 x Pressure Sensor
ButtonPower Button / Volume Down Button / Volume Up Button
Connectivity1 x WWAN Main Antenna (D660Pro only)
1 x WWAN Aux Antenna (D660Pro only)
1 x GPS Antenna (D660Pro only)
1 x NFC Connector
1 x WiFi & BT Main Antenna
1 x WiFi Aux Antenna
LEDBlue Led / Green Led / Red Led / Camera Flash Led
Other Interfaces1 x Dummy Battery by Micro USB Connector
1 x USB 3.1 type C
1 x USB 2.0 type A
1 x USB 2.0 Micro B (Debug only)
1 x FORCED_USB Boot Switch
2 x SIM Cards
1 x Micro-SD Connector
1 x JTAG
1 x Vibrator
9 x GPIO Connectors
Power Source5V/2A
OSAndroid 9
Operating EnvironmentOperation Temperature: --20℃ ~ +65℃
Storage Temperature: -30℃ ~ +85℃
Size15cm X 16cm
TypeCategoryDocument NameUpdate Date
Public Documents---
Private DocumentsGet the Private Documents >

Get Support

Help Center

Technical Support

(for cusmtomer)

Thundercomm TurboX™ D660Pro Development Kit
Thundercomm TurboX™ D660Pro Development Kit is a fast mid-range ARM-based SoC largely found on tablets and handheld devices. Designed to support a leap in a performance supporting on-device artificial intelligence, advanced photography, and enhanced gaming, in addition to long battery life and fast LTE speeds. It is an ideal platform for developers to design their products quickly.
Thundercomm TurboX™ D660 Development Kit
Thundercomm TurboX™ D660 Development Kit is a fast mid-range ARM-based SoC largely found on tablets and handheld devices. Designed to support a leap in a performance supporting on-device artificial intelligence, advanced photography, and enhanced gaming, in addition to long battery life and fast LTE speeds. It is an ideal platform for developers to design their products quickly.
