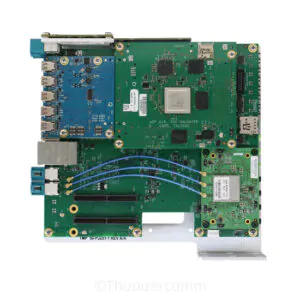

SA6155P Automotive Development Platform

To help automakers bring highly differentiated and customizable in-car experiences to all tiers, the Qualcomm® Snapdragon™ automotive development platform (ADP) based on the Qualcomm® Snapdragon™ SA6155P processor features is integrated with heterogeneous computing, high-performance artificial intelligence (AI) capabilities, and scalability with a unified software framework. It supports higher levels of computing and intelligence needed for advanced capabilities featured in next generation vehicles, including highly intuitive AI experiences for in-car virtual assistance, natural interactions between the vehicle and driver, contextual safety use cases, immersive graphics, multimedia, computer vision, premium audio, advanced wireless technologies, extraordinary camera capabilities, entertainment, and more.

FeatureDescriptionComment

Power

+6 V to +20 V
+12 VDC Typical
Protection: Over / Under Voltage, Over Current, Reverse Polarity, Load Dump

CPU

Octa Core, 2x Kryo Gen 4 + 6x ARM

PMIC

1xPMM6155AU

GPU

Adreno 608

Memory

2x 16 LPDDR4x @ 1600 MHz

DSP

Q6 DSP with 2xHVX @ 800 MHz

Storage

1x UFS2.1, eMMC 5.1

USB

1x USB2.0, 1x USB3.1

PCIe

1x PCIe Gen3 x1
1x PCIe Gen3 x4
2x PCIe Gen3 x2 OR 1x PCIe Gen 3X1
2x Board-2-board connectors with support for WiFi/BT sideband signals (SA6155 only supports PCIe
Gen2)

Video Output

5x DisplayPort2x via DSI to DP – (SA8195 / SA8155 / 1x for SA6155) 1x DP with MST support (SA8195 / SA8155 /
SA6155) 1x DP (SA8195 only) 1x eDP (SA8195 only)

Video Input

4x MIPI CSI 4 Lane

Audio

6x Analog out
4x line / Mic Inputs
NXP Mercury

Broadcast Radio Tuner

AM / FMNXP Mercury

Wired Networking

1x Gigabit Ethernet w/ EAVB-

Wireless Networking

WiFi & BT

Video Decode / Encode

SensorsSimilar to Vertigo sensor set

Test & Debug

JTAG: SOC, Mercury, VIP
Current Measurement
USB Debug UART
Mercury and VIP may be Muxed Embedded power measurement FTDI UART

Bluetooth

Frequency:2402~2480MHz;
Output Power:<12dBm;

WiFi

Frequency:2.412~2.484GHz, 5.18~5.905GHz;
Output Power:2.4GHz <20dBm, 5GHz <15dBm;

Specifications and features are subject to change without notice. Qualcomm Adreno, Qualcomm AI Engine, Qualcomm Hexagon, Qualcomm Kryo, Qualcomm Snapdragon, and Qualcomm Spectra are products of Qualcomm Technologies, Inc. and/or its subsidiaries.
