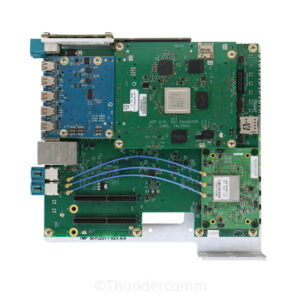

SA6155P Automotive Development Platform
To help automakers bring highly differentiated and customizable in-car experiences to all tiers, the Qualcomm® Snapdragon™ automotive development platform (ADP) based on the Qualcomm® Snapdragon™ SA6155P processor features is integrated with heterogeneous computing, high-performance artificial intelligence (AI) capabilities, and scalability with a unified software framework. It supports higher levels of computing and intelligence needed for advanced capabilities featured in next generation vehicles, including highly intuitive AI experiences for in-car virtual assistance, natural interactions between the vehicle and driver, contextual safety use cases, immersive graphics, multimedia, computer vision, premium audio, advanced wireless technologies, extraordinary camera capabilities, entertainment, and more.
Applications:
| Feature | Description | Comment |
|
Power |
+6 V to +20 V +12 VDC Typical |
Protection: Over / Under Voltage, Over Current, Reverse Polarity, Load Dump |
|
CPU |
Octa Core, 2x Kryo Gen 4 + 6x ARM | |
|
PMIC |
1xPMM6155AU | |
|
GPU |
Adreno 608 | |
|
Memory |
2x 16 LPDDR4x @ 1600 MHz | |
|
DSP |
Q6 DSP with 2xHVX @ 800 MHz | |
|
Storage |
1x UFS2.1, eMMC 5.1 | |
|
USB |
1x USB2.0, 1x USB3.1 | |
|
PCIe |
1x PCIe Gen3 x1 1x PCIe Gen3 x4 2x PCIe Gen3 x2 OR 1x PCIe Gen 3X1 |
2x Board-2-board connectors with support for WiFi sideband signals (SA6155 only supports PCIe Gen2) |
|
Video Output |
5x DisplayPort | 2x via DSI to DP – (SA8195 / SA8155 / 1x for SA6155) 1x DP with MST support (SA8195 / SA8155 / SA6155) 1x DP (SA8195 only) 1x eDP (SA8195 only) |
|
Video Input |
4x MIPI CSI 4 Lane | |
|
Audio |
6x Analog out 4x line / Mic Inputs |
NXP Mercury |
|
Broadcast Radio Tuner |
AM / FM | NXP Mercury |
|
Wired Networking |
1x Gigabit Ethernet w/ EAVB | - |
|
Wireless Networking |
WiFi | |
|
Video Decode / Encode |
Sensors | Similar to Vertigo sensor set |
|
Test & Debug |
JTAG: SOC, Mercury, VIP Current Measurement USB Debug UART |
Mercury and VIP may be Muxed Embedded power measurement FTDI UART |
|
WiFi |
Frequency:2.412~2.484GHz, 5.18~5.905GHz; Output Power:2.4GHz ＜20dBm, 5GHz ＜15dBm; |
Specifications and features are subject to change without notice. Qualcomm Adreno, Qualcomm AI Engine, Qualcomm Hexagon, Qualcomm Kryo, Qualcomm Snapdragon, and Qualcomm Spectra are products of Qualcomm Technologies, Inc. and/or its subsidiaries.
