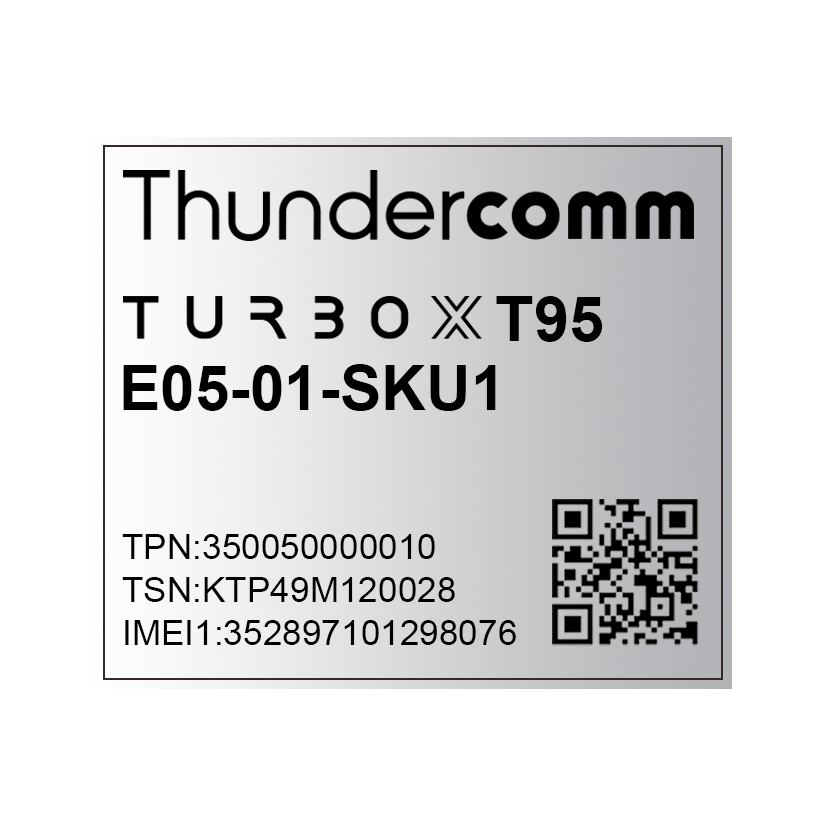

T95 SOM

Global LTE Cat-M1/NB2/EGPRS module rides the IoT

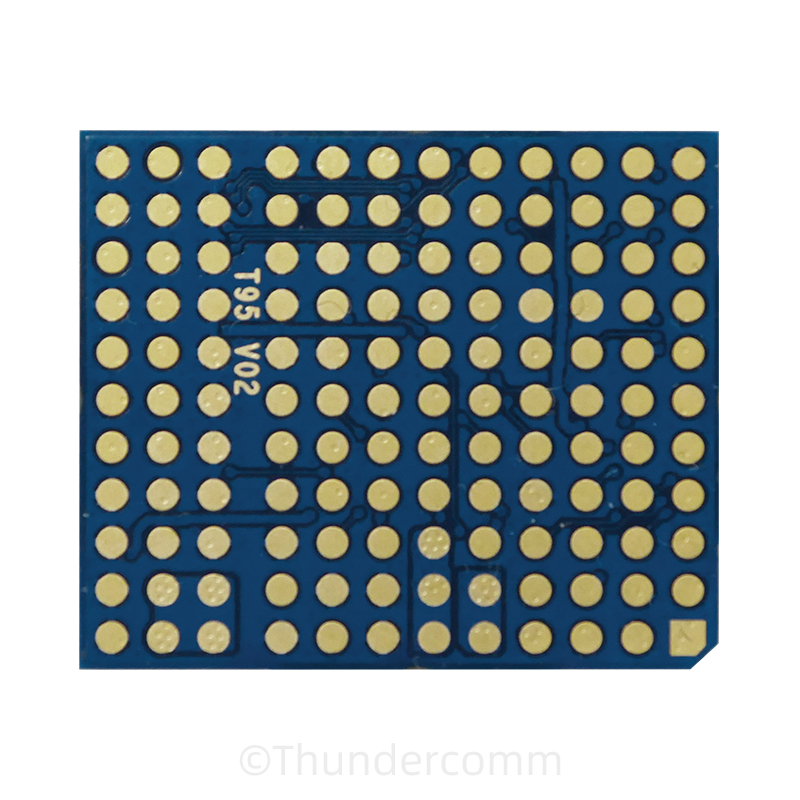

The TurboX T95 SOM (System On Module)is based on new generation of NB-loT Modem and purpose-built for the low power wide area Internet of Things (IoT) applications. It integrates all key innovations required to build cellular-enabled IoT products and services into a single module, including 3GPP Rel. 14 compliant LTE Cat M1/Cat NB2, E-GPRS connectivity, an ARM Cortex A7 application processor, integrated GNSS, hardware-based security, capable of cloud services, and rich set of development tools. With a cost-effective LGA form factor of 19 mm×16 mm×2.2 mm and high integration level, T95 enables users to easily design their applications and take advantage from the module’s low power consumption and mechanical intensity. Comparing with its last generation, the T95 SOM reduces power consumption by about 70%, BOM cost by about 50% and total chipset size by about 50%.The T95 SOM is ideal for battery-powered IoT devices to keep nearly 10 years or longer in the IoT applications.

Overview

T95 SOM Applications

Portable Radio Transceiver

Wearable

Tracker

Sensors

Utility Meters

T95 SOM Features

Global multi-mode:

Cat M1 & Cat NB2 & EGPRS

AT Command

Integrated GNSS:

GPS, GLONASS, Beidou, Galileo, QZSS

Ultra-low power:

3uA in PSM mode

T95 SOM

Global multi-band:

>23 bands worldwide

Wi-Fi Position

Rich Network Stack:

LWM2M, CoAP, MQTT, FTP, TLS

Device Management:OTA

Specifications

SpecificationCategoryT95G-EAT95G-NA
ChipsetCPUCortex-A7 up to 800 MHz with 256 KB L2 cache
MemoryDRAM/NANDInternally DRAM:32 MB/Internally Flash:64MB
Air InterfaceModeLTE CatM1/NB2 Power Class 3 + EGPRSLTE CatM1/NB2 Power Class 3
RF BandsCat-M1:B1/B2/B3/B4/B5/B8/B18/B19/ B20/B26/B28 Cat-NB2:B1/B2/B3/B4/B5/B8/B18/B19 /B20/B28 EGPRS: 850/900/1800/1900 MHzCat-M1: B2/B4/B5/B12/B13/B25 Cat-NB2:B2/B4/B5/B12/B13/B66/B 71/B85
GNSSGPS/Beidou/GLONASS/QZSS
Data RatePeak Download Speed588 kbps (Rel.14 Cat-M1), 127kbps (Rel.14 Cat-NB2)
Peak Upload Speed1119 kbps (Rel.14 Cat-M1), 158.5 kbps (Rel.14 Cat-NB2)
Connectivity and Peripheral InterfaceBLSP4x BLSP supports UART, SPI, and I2C
GPIO/PWM8 x GPIO , 2 x PWM
UIM1 x UIM1 single voltage (1.8 V)
AntennaLTE and GNSS Antenna with LGA pads
I2S2x I2S
USB1 x USB 2.0 device mode only
CertificationRegulatory&CarrierCE”/VDF”/DT”FCC*/IC”/GCF”/PTCRB*/AT&T*/VzW”
DimensionsSize/Package16 x19x 2.2mm, LGA Package
PowerVoltage Range3.3 V to 4.3V,Typ.3.8V
Temperature RangeOperation-30°C to + 75°C(TBD)
Storage-40°C to + 85°C
SoftwareOperating SystemThreadX OS
SDKsLTE IoT SDK

Dev Kit

Connectivity

  • UIM
  • Antenna: LTE,GNSS,Wi-Fi

Sensor

  • 6-Axis: Acc & Gyro
  • Ambient & Proximity
  • Temperature & Humidity
  • Pressure

Storage

  • External NOR Flash:8MB

Audio

  • Codec: Mic, Speaker, 3.5mm Audio Jack

Peripheral

  • USB 2.0
  • Expansion Connectors:SPI, Uart, i2C, PWM
  • 3.7V Battery Connector
