C7230 Development Kit

Turbox C7230 Development Kit provides a feature-rich Android development platform that is designed to provide an ideal starting point for IoT products require high computing power, 5G connection, advanced camera capability, and superior graphics performance.
  • Qualcomm® Snapdragon™ QCS7230 processor
  • Qualcomm® Adreno™ 650 GPU, Adreno 665 VPU, Adreno™ 995 DPU
  • Qualcomm® Hexagon™ DSP with dual-HVX
  • Qualcomm® Spectra™ 480 image processing
  • Compliants with the 96Boards open hardware specification
  • Supports Android 10

Applications:

TurboX C7230 Dev Kit Applications

Video Conference

AI Camera

Surveillance Camera

Edge Computing

Service Robot

Consumption/Entertainment Robot

TurboX C7230 Dev Kit Highlights

Advance Imaging capability

Gigapixel speed ISP powered by top of the line Qualcomm® Spectra™ 480 ISP with ability to process 2 Gigapixels per second. This Gigapixel speed delivers new camera features including 8K video recording, 7 camera concurrency, capture 200-megapixel photos, and simultaneously capture 4K HDR video and 64 MP (with zero shutter lag) photos.

On-device intelligence powered by Qualcomm Artificial Intelligence (AI) Engine

The TurboX C7230 Development Kit supports the leading 5th generation Qualcomm AI Engine with the brand-new Qualcomm Hexagon™ Tensor Accelerator, pushing 7 trillion operations per second(TOPS) with maximum efficiency to run complex AI and deep learning workloads at the Edge.

Advanced connectivity

Qualcomm® FastConnect™ 6800 Subsystem with Wi-Fi 6 (802.11ax), 802.11ac Wave 2, 802.11a/b/g/n.

Support for 5G including 5G mmWave and sub-6 GHz based of Qualcomm® Snapdragon™ X55 5G Modem-RF System via a companion module. Using 5G technology mission critical and wide scale deployments with low end-to-end latency is possible.

Heterogenous computing with efficient power budgets

The TurboX C7230 Development Kit provides powerful heterogeneous computing capabilities using the octa core Qualcomm® Kryo™ 585 CPU, powerful Qualcomm® Adreno™ 650 GPU, multiple DSPs (compute, audio, and sensor) and ISPs. The TurboX C7230 Development Kit is designed to support large industrial and enterprise robots as well as small battery-operated robots with challenging power and thermal dissipation requirements.

Flexible design options for commercialization

In addition to a feature packed development kit, the platform offers a range of solutions for commercialization from off-the-shelf System-on-Module (SoM) solutions to speed commercialization, to the flexibility for chip-on-board designs for cost-optimization at scale.

Advance Security

Qualcomm® Secure Processing Unit (SPU) offers vault-like security providing Secure Boot, Hardware root of trust , cryptographic accelerators, Qualcomm® Trusted Execution Environment and camera security. Qualcomm® Crypto Engine Core is FIPS 140-2 certified.

Component C7230 Development Kit
SOM Platform Qualcomm® QCS7230
Qualcomm® Kryo™ 585: 6 core Kryo(1x 2.84GHz,3x 2.4GHz,2x 1.8GHz)
Qualcomm® Adreno™ 650 GPU, Adreno™ 665 VPU, Adreno™ 995 DPU
Qualcomm® Hexagon™ DSP with dual HVX
Qualcomm® Spectra™ 480 image processing
RAM 8GB, LPDDR5 (POP)
Storage 128 GB UFS3.0 Onboard Storage
1 x MicroSD Card Slot
Ethernet 1 x 1GbE Ethernet
Wireless WLAN 802.11a/b/g/n/ac/ax 2.4/5GHz 2x2 MIMO
Bluetooth 5.0, on-Board WLAN/BT Antennas
USB 1 x USB 2.0 Micro B (Debug only)
1 x USB 3.0 Type C (OTG Mode)
2 x USB 3.0 Type A (Host Mode Only)
Display 1 x HDMI 1.4 (Type A - full) on Board Connector
Audio 2 x Class-D on Board Speaker Amplifier, WSA881x
1 x on Board PDM MIC
Sensor Accelerometer + Gyro Sensor
Expansion interfaces Expansion connectors:
HS1:1 x 60 pin high-speed connector (SDC I/F, 1 x 4L MIPI DSI, USB 2.0, CCI I2C x2, 2L+4L-MIPI CSI)
HS2:1 x 60 pin high-speed connector (4L-MIPI CSI x 2, SPI x 1, PCIe 3.0 gen3 1L, USB 3.0 x1, GPIO x 8)
HS3:1 x 60 pin high-speed connector (4L-MIPI CSI x 2, 4L-MIPI CSI x1(plus 2L CSI in HS1), RF CLK x 2, 2L-PCIe 3.0 x 1, 2L-PCIe 3.0 x 1 (plus PCIe 1L in HS2), 4L-MIPI DSI x 1)
LS1:1 x 96boards 40 pin low-speed connector (UART x 2, SPI, I2S/PCM, I2C x 2, GPIO x 12, DC powers)
LS2:1 x 96boards 40 pin low-speed connector (Speaker x 2, DMIC I/F x 3, CAN, I2S, GPIOs, PWM, ADC, I2C, DC powers)
LS3:1 x 96boards 40 pin Low-Speed connector (SPI x 2, SSC I2C, sensor interrupt x 5, GPIOs, RTC clock, DC powers)
LED 7 x LED Indicators
4 x User Controllable
2 x For radios (BT and WLAN activity)
1 x Power indicator
Buttons Power
Volume Up/Down
Force USB Boot
Dip Switch x 2 (6pin+4pin)
Power source 12 V @2.5A adapter with a DC plug
Plug specification is inner diameter 1.75mm and outer diameter 4.75mm
OS support Android 10
Size 85 mm x 54 mm meeting 96Boards Consumer Edition Standard form dimensions specifications

Get Support

Help Center

Technical Support

(for cusmtomer)

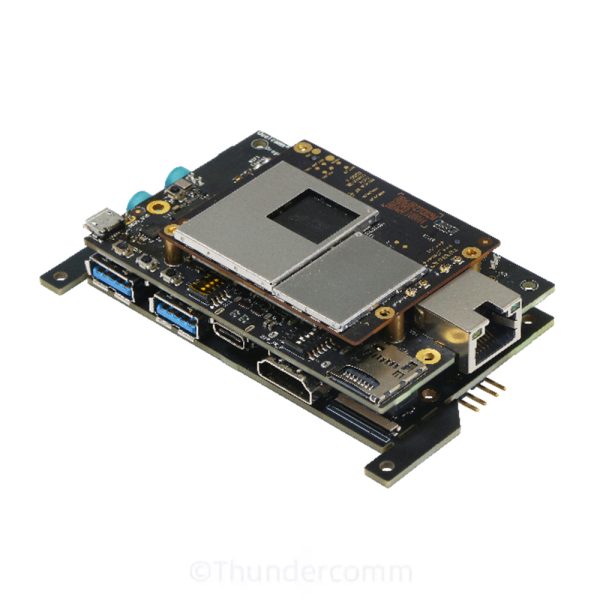

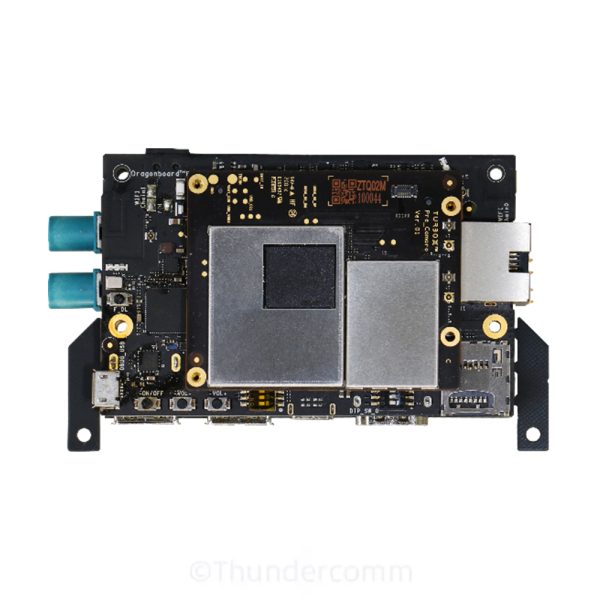

TurboX C7230 Development Kit (Core Kit)
