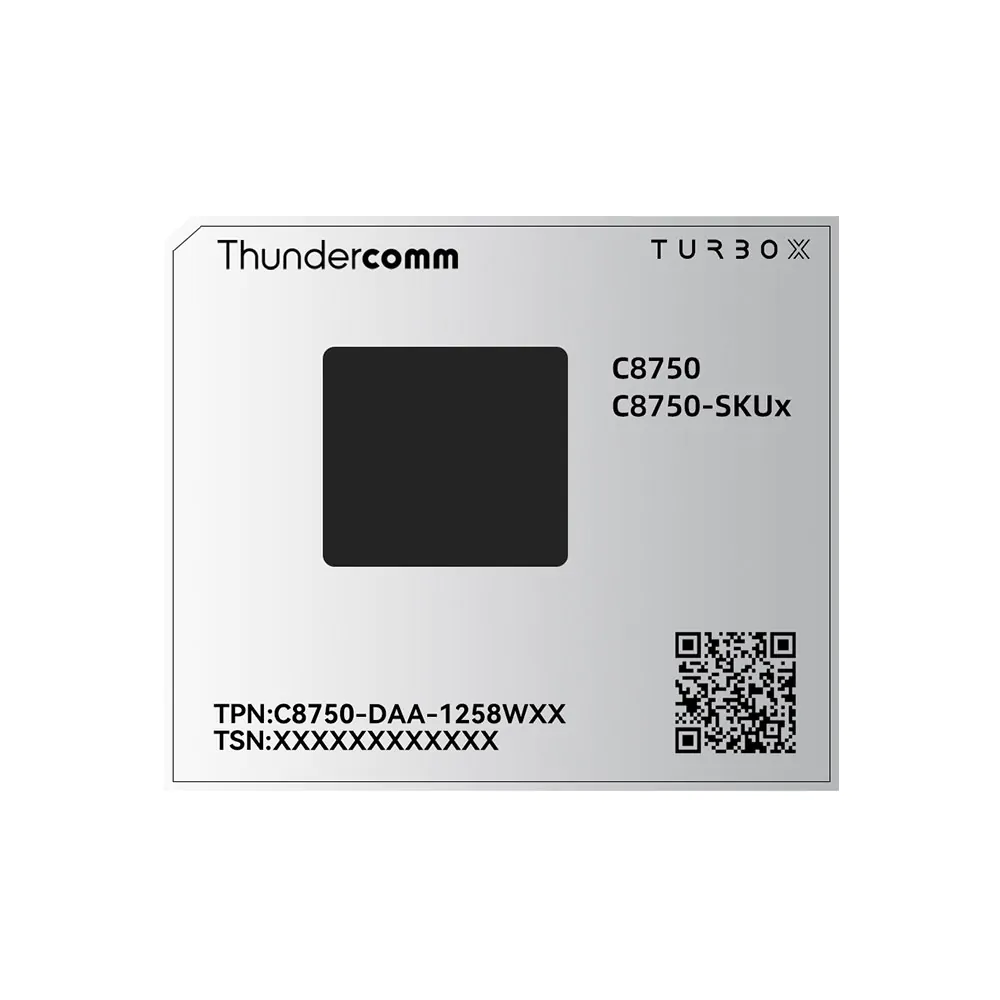

The Thundercomm TurboX C8750 SOM is a highly integrated System on Module (SOM) powered by the next-generation flagship Qualcomm® CQ8750S* processor. Built on a cutting-edge 3nm process, it supports both Android and Linux operating systems. TurboX C8750 supports Android, featuring powerful computing, extreme edge AI processing, and robust video and graphics. It is an ideal platform for IoT products that demand powerful computing, advanced imaging, and exceptional graphics rendering.
*For EVT sample, the SoC is SM8750P.

Overview

TurboX C8750 SOM Applications

Smart Camera

Video Conference

Automated Manufacturing Robots

Autonomous Mobile Robots(AMRs)

Collaborative Robots

Delivery Robots

Urban Air Mobility (UAM) Transportation

Edge Computing

TurboX C8750 SOM Features

8th Gen AI Engine

Over 10x performance boost to previous gen

Next Gen Oryon™ CPU

up to 1.5x over previous gen

3A+IQ upgrades;3 ISP, 3 x 48MP@30FPS

HW sHDR, ASE

C8750 SOM

Hypervisor enables multiple trusted VMs (TVMs)

3 times GPU performance improvement compared to the previous generation

4K240/8K60 decoding,
4K120/8K30 encoding AV1 decoder

Specifications

Category Description
Platform Qualcomm® CQ8750S
Oryon™ CPU, 8 Oryon-core: Prime core, up to 4.32GHz ; Performance cores, up to 3.53GHz
Adreno™ 830 GPU
GPU Spectra™ ISP
Memory 16GB LPDDR5x + 128GB UFS3.1
AI Performance On-device personalization and multimodal support
Support for mix precision (INT8+INT16)
Support for all precisions (INT4, INT8, INT16, FP16)
Connectivity No built-in Wi-Fi
Display On-Device Display Support: 4K@60Hz, QHD+@240Hz
Maximum External Display Support: 8K@30Hz, 1080@240Hz
Camera 3 x 48 MP@30FPS ISPs
4 x CSI D-PHY-1.2 4-lane
2 x CSI C-PHY-2.0 3-trio compatible with D-PHY 4-lane
5 x concurrent (3 IFEs + 2 IFE-lites)
Video 4K240/8K60 – Video Decode
4K120/8K30 – Video Encode
PCIe 1 X PCIe Gen3 2-lane
USB 1X USB 3.1 Gen2 with DP1.4
Operating Environment Operating Temperature: -35℃ ~ +75℃
Voltage 3.2V ～ 4.5V
Form Factor LGA
Dimension 39mm x 33mm x 2.75mm (excluding height of the bottom shielding case)
OS Support Android 15, Linux*
Certificate RoHS*/Reach*/WEEE*/TSCA*

* Planning
