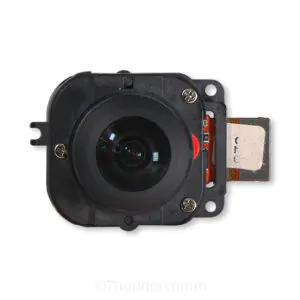

IMX577 Camera Module (Single Module)

12M Camera Module (FOV 200°) —— The camera module is designed for using in cellular phone , sports camera ,car camera , snap camera , IP camera and any need small camera module Function. The camera module consists diagonal 7.857mm (Type 1/2.3) CMOS active pixel type image sensor with a square pixel array and 12.47M effective pixels and Lens F/NO. 2.08 ,Field of View Angle (Diagonal) 200 Diag. Furthermore,it realizes 10-bit/12-bit digital output for shooting high-speed and high-definition moving pictures by horizontal and vertical binning and subsampling. Realizing high-sensitivity, low dark current, this module also has an electronic shutter function with variable storage time.

*Need to be used with IMX577 Camera Board

ItemSpecification
Module Size35.54mm(L)×24.55mm(W)x16.89mm(H)
Lens DiameterØ20mm (Lens outside diameter(max))
Field of View Angle (@IMX577)200° (Diagonal)
200° (Horizontal)
200° (Vertical)
Focusing Range0.4M – INF
Module SensorIMX577(1/2.3 Inch)
Module LensFocal Length 1.42 mm±3%
F/NO. 2.08
Module Image QualityCenter≥ 2400 TVL @0.8M
Corner (0.8F) ≥ 1800 TVL @0.8M
