S605 SBC

Thundercomm TurboX™ S605 SBC is a vision intelligence platform made for the smarter IoT devices at the edge.This platform includes advanced camera processing software, machine learning and computer vision software development kits (SDKs), and proven connectivity and security technologies.It can speed up the products development.

S605 SBC Major Target Markets

Smart City

Smart Camera

Smart Surveillance

360 Camera

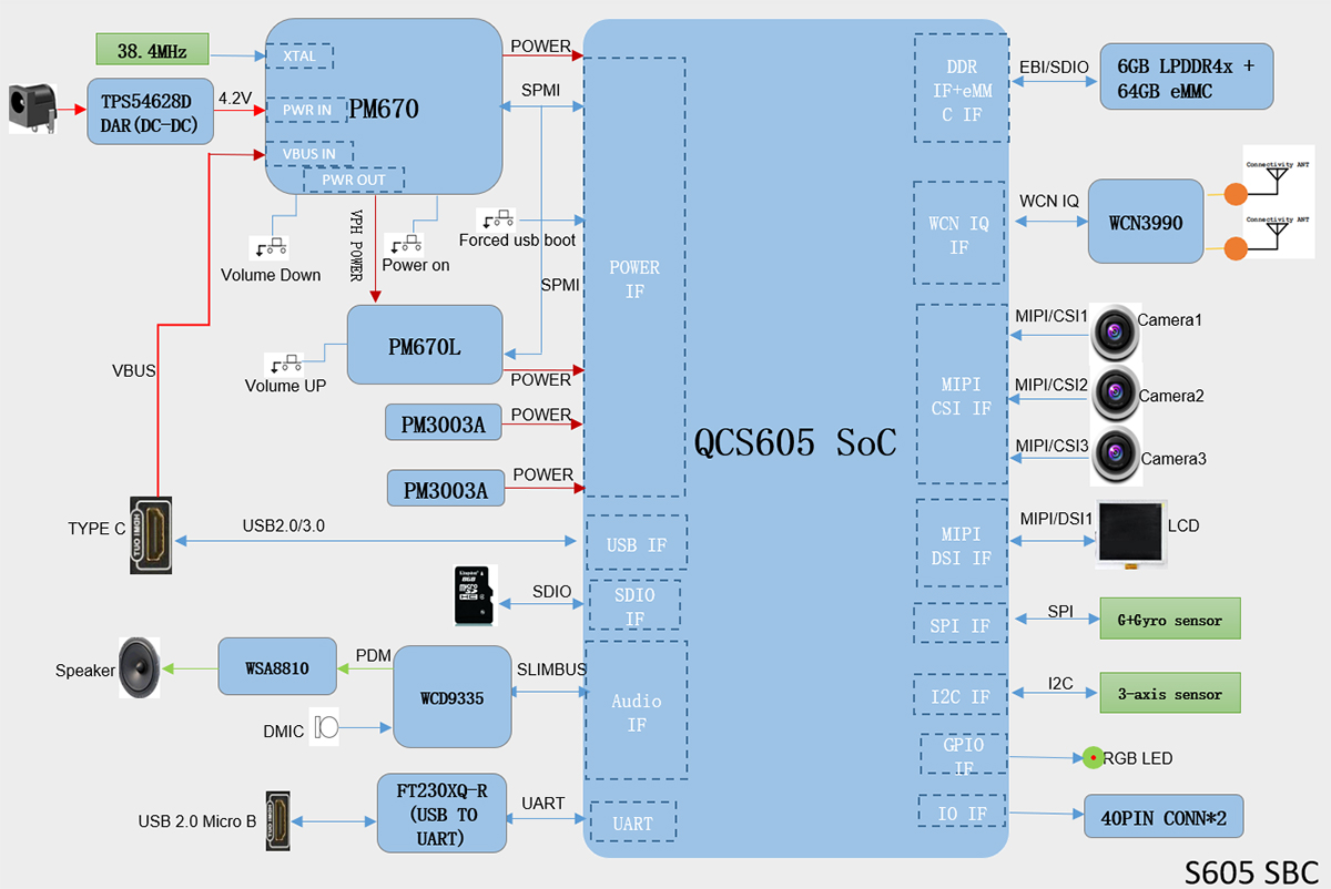

S605 SBC HW Block Diagram

CategoryItemDescription
PlatformChipsetQualcomm® RedDragon™ QCS605
CPU8x Qualcomm® Kryo™ 300 CPU,Up to 2.5 GHz
GPUQualcomm® Adreno™ 615, OpenGL® ES 3.2, Vulkan, OpenCL
DSPQualcomm® Hexagon™ 685 DSP
OSAndroid 8.1
Memory and StorageLPDDR4x 6GB + eMMC 64GB
MultimediaDisplay2x MIPI-DSI 4-lane, Up to 2560 × 1600 10 bit at 60 Hz
DisplayPort 1.4+ data concurrency over USB
Camera2x ISP 14 bit + 1x Lite ISP: 32 MP (2x ISP, 16 + 16 MP), 3x MIPI-CSI 4-lane, 2x ISP 14 bit + 1x Lite ISP, up to 32MP
Decode4K60 10-bit: HEVC/VP9/H.264 HDR 10
Encode4K60 8-bit: HEVC/H.264 + 1080P60
ConnectivityWiFi/BT802.11a/b/g/n/ac 2.4/5Ghz 2×2 MIMO & Bluetooth 5.0
InterfaceInterface1 x USB 3.1 Type C;1 x USB 2.0 Micro B; 1 x MicroSD card slot;
3 x Camera Connector;2 x LCD Connector; 1 x Touch Panel Connector;
1x JATG Debug; 1x 3.5mm headset;
1 x 40 Pin Expansion Connector(SPI,LPI_SPI,I2S,I2C,UART, GPIO)
1 x 40 Pin Audio Connector(DMIC, AMIC ,SPEAKER, LINE,GPIO)
DimensionSize106mm*66mm
System EnvironmentPower+12V/3A input
Operating Tempearture-20℃ ~ 70℃
Storage Temperature-20℃ ~ 80℃
Relative Humidity5%~95%, non-condensing
TypeCategoryDocument NameUpdate Date
Public DocumentsProduct Brief[TC_S605_1110]_TurboX S605 SBC_Product Brief_V1.0.pdf-
Private DocumentsGet the Private Documents >

Get Support

Help Center

Technical Support

(for cusmtomer)

Thundercomm TurboX™ S605 SBC
Thundercomm TurboX™ S605 SBC is a vision intelligence platform made for the smarter IoT devices at the edge.This platform includes advanced camera processing software, machine learning and computer vision software development kits (SDKs), and proven connectivity and security technologies.It can speed up the products development.

Thundercomm TurboX™ S605 SBC

IMX577 Camera Module (Single Module)
12M Camera Module (FOV 200°) —— The camera module is designed for using in cellular phone , sports camera ,car camera , snap camera , IP camera and any need small camera module Function. The camera module consists diagonal 7.857mm (Type 1/2.3) CMOS active pixel type image sensor with a square pixel array and 12.47M effective pixels and Lens F/NO. 2.08 ,Field of View Angle (Diagonal) 200 Diag. Furthermore,it realizes 10-bit/12-bit digital output for shooting high-speed and high-definition moving pictures by horizontal and vertical binning and subsampling. Realizing high-sensitivity, low dark current, this module also has an electronic shutter function with variable storage time.
