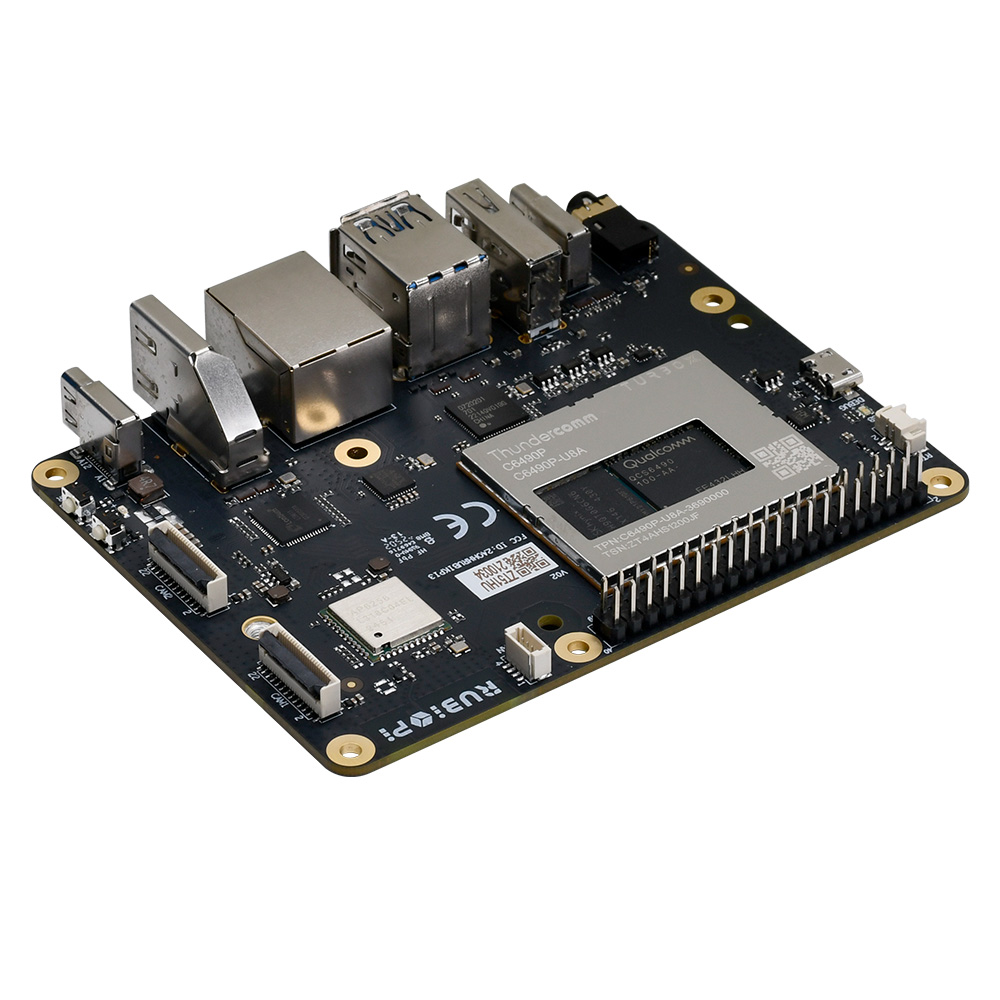

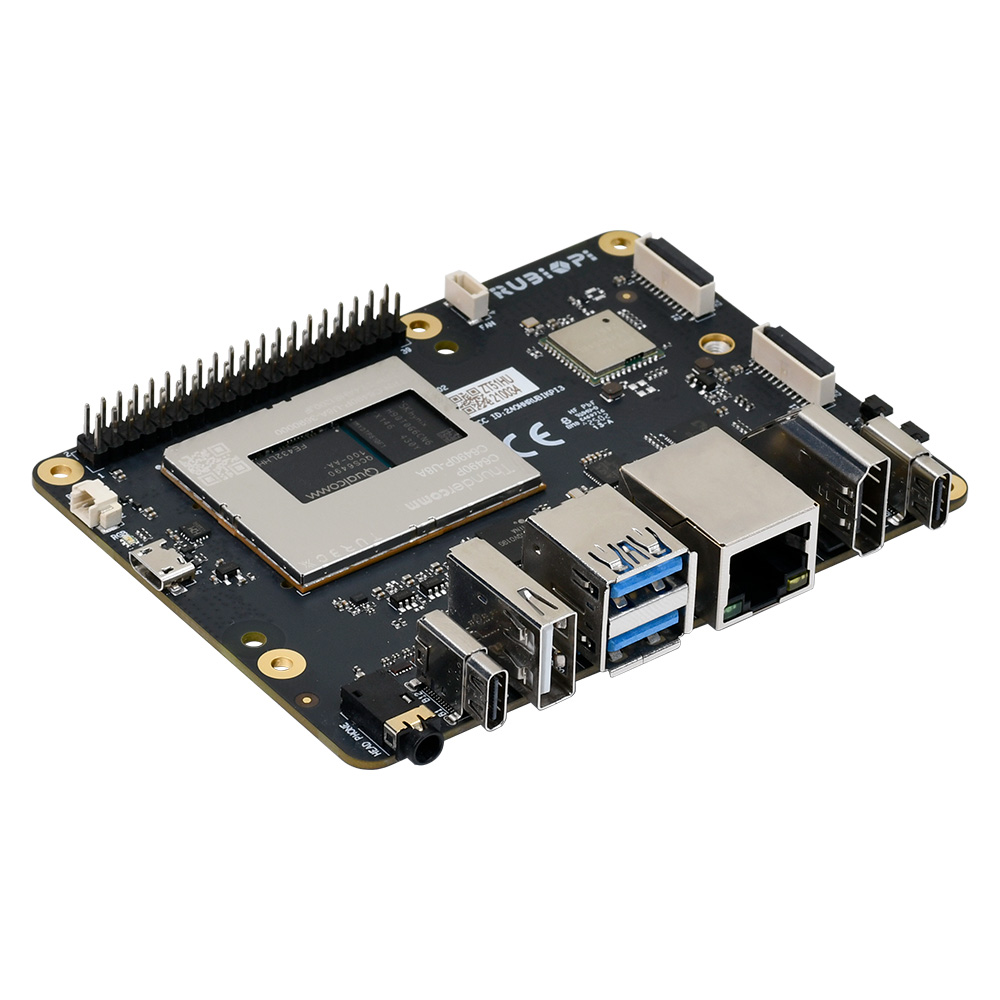

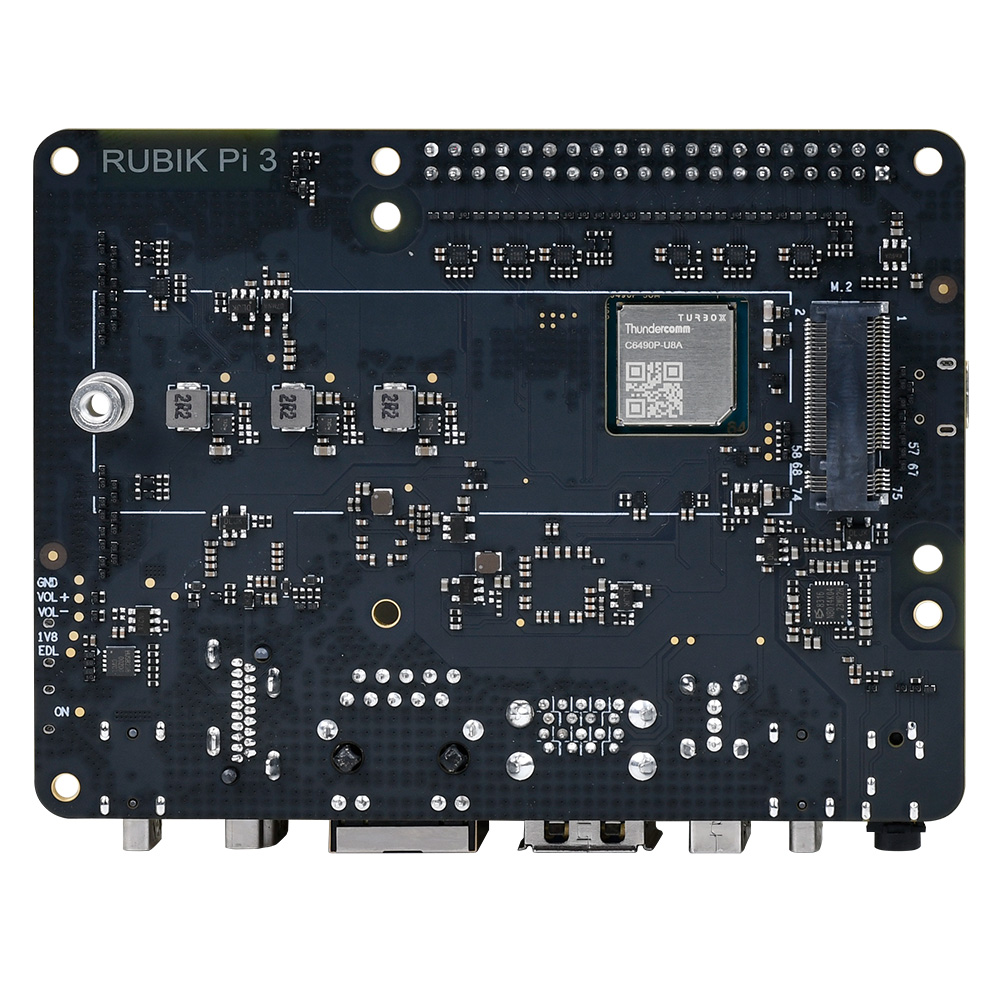

RUBIK Pi 3, a lightweight development board based on Qualcomm Dragonwing™ QCS6490 platform, is the first Pi built on Qualcomm AI platforms for developers.
RUBIK Pi 3 supports multiple operating systems such as Android, Linux, and LU, with SDKs from Thundercomm to provide developers with a better experience. With excellent AI performance at 12 TOPS, Qualcomm Dragonwing™ QCS6490 can be paired with Qualcomm AI Hub to allow developers to personally experience the impact of AI evolution.
RUBIK Pi 3 boasts a rich array of interfaces and functions, including USB Type-A (1x 2.0, 2x 3.0), USB 3.1 Gen 1 Type-C with DP (4K@60), camera, HDMI OUT (4K@30), 1000M Ethernet port, 40-pin header connector, 3.5mm headphone jack, Wi-Fi 5, BT 5.2, M.2 M-key connector, Micro USB, and RTC, to meet diverse development needs. It also has designed interfaces and is compatible with a variety of embedded development board peripherals, which helps reduce implementation difficulty and cost for developers
 |  |  |  |
|---|
😍RUBIK Pi 3 Advantage
 | Qualcomm® Linux® First open-source Linux based on Qualcomm Dragonwing™ QCS6490 platform for developers |  | Compatibility Compatible with peripherals of most open-source ecosystem development boards |
 | Compact Design With a portable size of 100mm x 75mm, enabling easy direct application in products |  | AI Capability 12 TOPS On-device AI capability |
 | Easy to Expand • C5430P/C6490P/C8550 SOM are P2P compatible • Easy to build customized EVK |  | Open-source Community A vibrant and collaborative group of enthusiasts, developers, and educators |
 | Multiple OS support Qualcomm open-source Linux, Android, Ubuntu on Qualcomm IoT Platform, Debian 13 |  | Comprehensive Documentation Accessible documentations, including official guides, tutorials, datasheets, and FAQs |
📒RUBIK Pi 3 Specifications
| Category | RUBIK Pi 3 Feature |
|---|---|
| Platform | Qualcomm Dragonwing™ QCS6490 |
| Memory | RAM 8 GB LPDDR4x``ROM 128 GB UFS 2.2 |
| Video | 1 x HDMI 1.4 output (up to 4K 30 Hz) 1 x DP over USB Type-C (up to 4K 60 Hz) 2 x camera connector (4-lane MIPI CSI D-PHY) |
| Audio | 1 x 3.5mm headphone jack |
| Connectivity | 1 x USB Type-C (USB 3.1 Gen 1) 2 x USB Type-A (USB 3.0) 1 x USB Type-A (USB 2.0) 1 x 1000M Ethernet (RJ45) 1 x UART for debug (over Micro USB) 1 x M.2 Key M connector (PCIe 3.0 2-lane) 40-pin LS connector supporting various interface options: - Up to 28 x GPIO - Up to 2 x I2C - Up to 3 x UART - Up to 3 x SPI - 1 x I2S (PCM) - 1 x PWM channel |
| Others | 1 x Power on button 1 x EDL button 1 x RGB LED 2-pin RTC battery connector 4-pin PWM fan connector |
| Wireless connection | Wi-Fi: IEEE 802.11 a/b/g/n/ac Bluetooth: BT 5.2 On-board PCB antenna |
| Power supply | Power Delivery over Type-C, 12V 3A |
| Operating environment | Operating temperature: 0-50℃ |
| Dimensions | 100mm x 75mm x 25mm |
| OS support | Android 13 Qualcomm® Linux® Debian 13 Canonical Ubuntu for Qualcomm platforms* |
*:Planning
