HDMI OUT

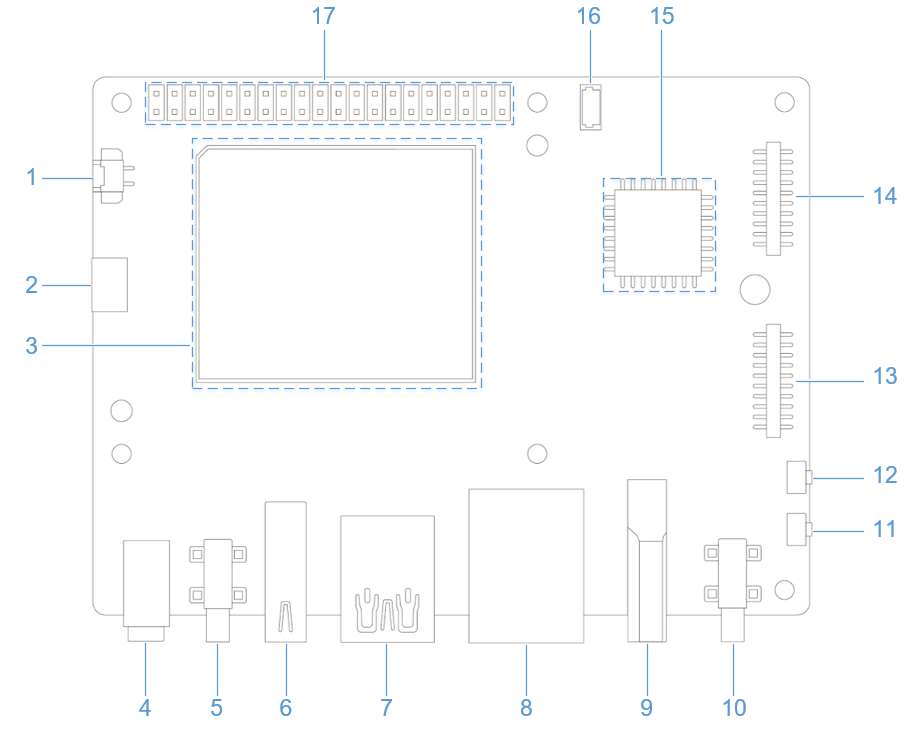

The HDMI connector is component No.9 in the following figure.

RUBIK Pi 3 HDMI specifications are as follows:

• HDMI 1.4
• 3840 x 2160@30 fps
• DSI 0 to HDMI (LT9611)
• Supports resolution auto-adjustment
• Supports hot swapping

Refer to Peripheral Compatibility List for the verified accessories.

HDMI OUT debugging

RUBIK Pi 3 uses the LT9611 DSI-to-HDMI bridge chip.

The following table lists the configurations required for integrating the bridge.

Description	DTSI Node
Set the DSI-to-HDMI bridge panel as Primary	&sde_dsi { qcom, dsi-default-panel = <&dsi_ext_bridge_1080p>; }
Configure reference power supply entries for the bridge chip	&sde_dsi { vddio-supply = <&vreg_18c_ip62>; vdda-9p9-supply = <&vreg_11oc_9p88>; vdda-9p9-supply = <&vreg_11oc_9p88>; }
Configure panel reset GPIOs for the bridge chip	lt9611: lt,lt9611 { reset-options = <&tlmm 21 0>; }
Configure the DSI host driver in the external bridge mode to work with the third-party DSI-to-HDMI bridge chip	qcom,mdss-dsi-ext-bridge-mode;

note

Run the sudo -i command to switch to the root user.

Obtain lt9611 logs

Run the following command to obtain LT9611 logs:

dmesg | grep lt9611

Check the logs. The following message indicates that HDMI OUT is functioning properly.

This log records the initialization of the LT9611 chip and the HDMI connection process, from firmware version detection to CEC initialization, indicating that the chip has started normally.

1. The firmware version of the chip is 0xe2.17.02. This indicates that during initialization, the driver successfully reads the version information.

2. The Consumer Electronics Control (CEC) function adapter of the LT9611 has been successfully registered.

3. CEC initialization is complete, which means that the CEC module of LT9611 is functioning properly.

4. The chip successfully reads the Hot Plug Detection (HPD) status, and a value is returned, confirming the connection of the HDMI device.

5. The chip detects the video signal parameters: horizontal resolution 1920 pixels, vertical resolution 1080 pixels, and pixel clock frequency 148500 kHz (148.5 MHz). This is a typical 1080p resolution (Full HD) with a 60 Hz refresh rate configuration.

[    5.492765] lt9611 9-0039: LT9611 revision: 0xe2.17.02
[    5.570258] lt9611 9-0039: CEC adapter registered
[    5.582944] lt9611 9-0039: CEC init success

[    8.233028] lt9611 9-0039: success to read hpd status: 13
[    8.233044] lt9611_device_connect_status_notify: send msg[Hdmi Connection] ret[32]
[    8.345015] lt9611 9-0039: hdisplay=1920, vdisplay=1080, clock=148500
[    8.836662] lt9611 9-0039: video check: hactive_a=1920, hactive_b=1920, vactive=1080, v_total=1125, h_total_sysclk=401, mipi_video_format=170

Obtain DSI logs

The output DSI information can also be used for debugging. DSI stands for Display Serial Interface, which is typically related to display drivers for mobile devices or embedded systems (such as MIPI DSI). The following command is used to view kernel logs related to DSI for debugging display drivers or hardware issues.

dmesg | grep dsi

Sample output:

[    6.831249] i2c 9-0039: Fixed dependency cycle(s) with /soc@0/display-subsystem@ae00000/dsi@ae9400
[   15.070444] lt9611 9-0039: failed to find dsi host
[   17.855362] lt9611 9-0039: failed to find dsi host
[   18.007167] platform ae01000.display-controller: Fixed dependency cycle(s) with /soc@0/display-su0
[   18.014168] platform ae01000.display-controller: Fixed dependency cycle(s) with /soc@0/display-su0
[   18.014317] lt9611 9-0039: Fixed dependency cycle(s) with /soc@0/display-subsystem@ae00000/dsi@ae0
[   18.014460] platform ae94000.dsi: Fixed dependency cycle(s) with /soc@0/geniqup@ac0000/i2c@a840009
[   18.014514] platform ae94000.dsi: Fixed dependency cycle(s) with /soc@0/display-subsystem@ae000000
[   18.372993] lt9611 9-0039: failed to find dsi host
[   18.803189] msm_dpu ae01000.display-controller: bound ae94000.dsi (ops dsi_ops [msm])

View regulator information

Run the following command to view the regulator status and voltage.

cat /sys/kernel/debug/regulator/regulator_summary

View interface information

To retrieve the debug dump output (display interface number, VSync count, underload count, and interface mode), run the following command:

cat /sys/kernel/debug/dri/0/encoder*/status

Sample output:

intf:1  wb:-1  vsync:    2580     underrun:       0    frame_done_cnt:0mode: INTF_MODE_VIDEO
intf:-1  wb:2  vsync:       0     underrun:       0    frame_done_cnt:0mode: INTF_MODE_WB_LINE

Common DPU debug information

The common Display Processing Unit (DPU) debug information is explained as follows:

Run the following command to check the DPU clock rate:

cat /sys/kernel/debug/clk/clk_summary | grep disp_cc

Set the DPU to performance mode.

cd /sys/kernel/debug/dri/0/debug/core_perf/
echo 1 > perf_mode
