Chapter 1. Tool Installation

TurboX Easy Flash is a tool created by Thundercomm to help SOM developers easily flash device image, backup and restore data, etc. Follow the steps below to install.

Step 1.Get the latest Windows installer.

Download

Step 2.Follow the steps shown in the Figure 1-1 to install the tool.

Figure 1-1. Tool Installation

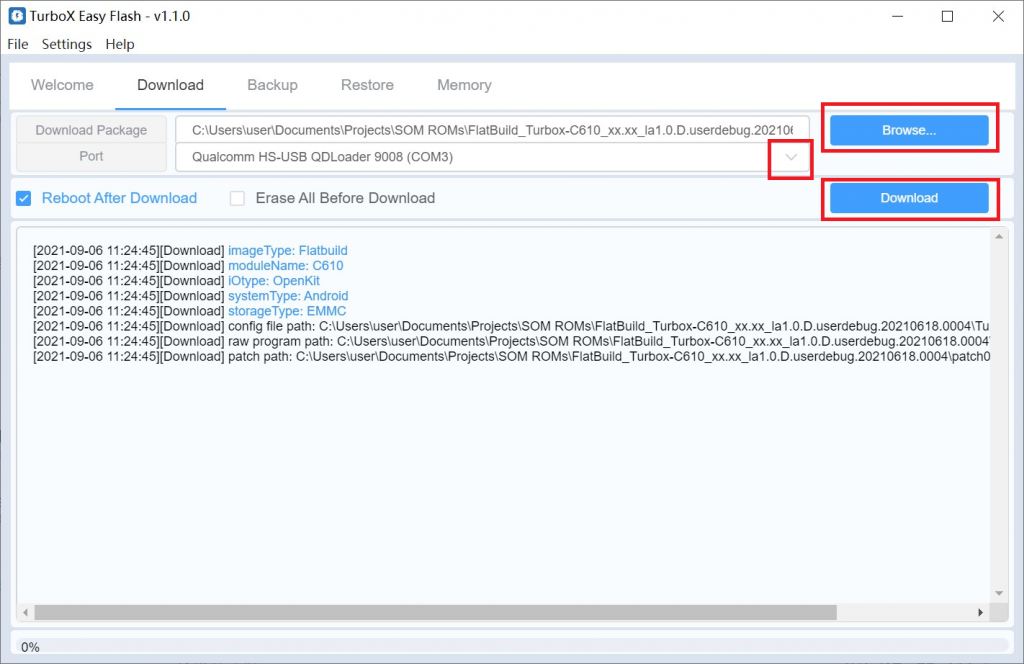

Chapter 2. Flash Image

This chapter introduces the detailed steps to flash flatbuild/metabuild/fastboot images with the help of Turbox Easy Flash.

Step 1. Unzip the image package to a definite folder.

Step 2. Click Browse… and navigate to the unzipped file folder as Download Package, and the tool will automatically detect the download type (flatBuild, metabuild, or fastboot). If the image package version is too old, the tool makes intelligent speculations based on the content of the package, and the Download Select dialog box (refer to Figure 2-2) will pop up for users to double check the selection result.

NOTE: You can select “Auto Backup Restore” to backup factory data before download and restore factory data after download automatically. It is often used to avoid factory data lost when downloading, especially you select “Erase All Before Download“, but it will cost more time in downloading process.

Step 3. Select the target device port (e.g., “Qualcomm HS USB QDLoader 9008”) for the Port if the download package type is flatbuild or metabuild, or device serial number for the Port if download package type is fastboot.

Step 4. Click Download button to flash device images.

NOTE: If you failed to flash device with flatbuild or metabuild image or the device cannot boot normally, please make device go into EDL (Emergency Download) mode and retry. Please see FAQ chapter on how to make device go into EDL mode.

Chapter 3. Backup and Restore

The Turbox Easy Flash can also be used to back up and restore factory data. This chapter gives a brief introduction to the functions.

3.1.Backup

Step 1. Select what you want to backup.

• All Partitioins: Backup all partitions of your device, which can be used as a flash package. You need to get a valid flash package at first, then make device go into EDL mode and specify the config file (Turbox_download_config.xml) in your unzipped flash package folder.
• Persist Partition: Backup the persist partition which used to store all the factory data, such as Wi-Fi MAC address, serial number, etc. You need to select device serial number as Device Id.
• Modem Data: Backup the modem data, also called QCN, such as modem RF calibration data, etc. You need to select Qualcomm HS USB port number as the Port.

Step 2. Click Browse… button and navigate to a directory to save the backup package.

Step 3. Click the Backup button to start the backup process.

Step 4. The backup is successful with the following files generated in your backup directory.

3.2.Restore

Step 1. Boot up the device and select the Device id and Port for the target device.

Step 2. Click Browse… button and select the zip package or QCN file to be restored.

Step 3. Click the Restore button to start the restoring process.

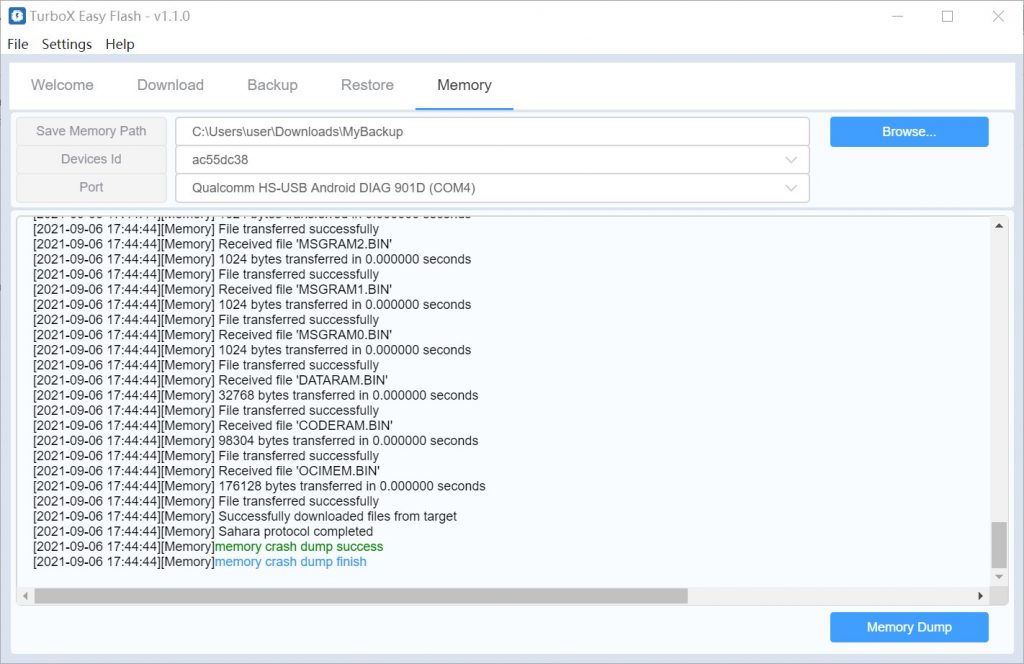

Chapter 4. Memory Dump

Turbox Easy Flash can also be used to dump memory data when device crashed.

Step 1. Click Browse… and navigate to the folder that you want to save your memory dump data.

Step 2. Select Qualcomm HS USB port as Port.

Step 3. Click Memory Dump button to dump memory data.

Chapter 5. FAQ

How to make device go into EDL mode?

You can make SOM DK device go into EDL mode (Emergency DownLoad mode) by adb command “adb reboot edl” or follow the steps below when adb command does not work:

1. disconnect the USB cable and power cable from DevKit board.
2. pressing Force_USB_Boot button, connect the power cable to DevKit board.
3. keep pressing Force_USB_Boot button, press Power_ON button.
4. after waiting for 5 seconds, release Force_USB_Boot button.
5. connect the USB cable to DevKit board

How to install Windows USB driver?

If you have connected the device with a Windows Host via a USB cable, the device may not be recognised by Windows if USB driver has not been installed before. You can download Windows USB driver here and install to the Windows Host by yourself.

Revision History

Revision	Date	Description
1.0	May 14, 2021	Initial release.
1.1	June 10, 2021	Add the Partition Backup and Memory Dump chapters.
1.2	July 23, 2021	Added FAQ chapter.
1.3	June 8, 2022	Added Auto Backup Restore function in firmware downloading.
1.4	Dec 29, 2022	Added ‘How to install Windows USB dirver’ in FAQ chapter.
