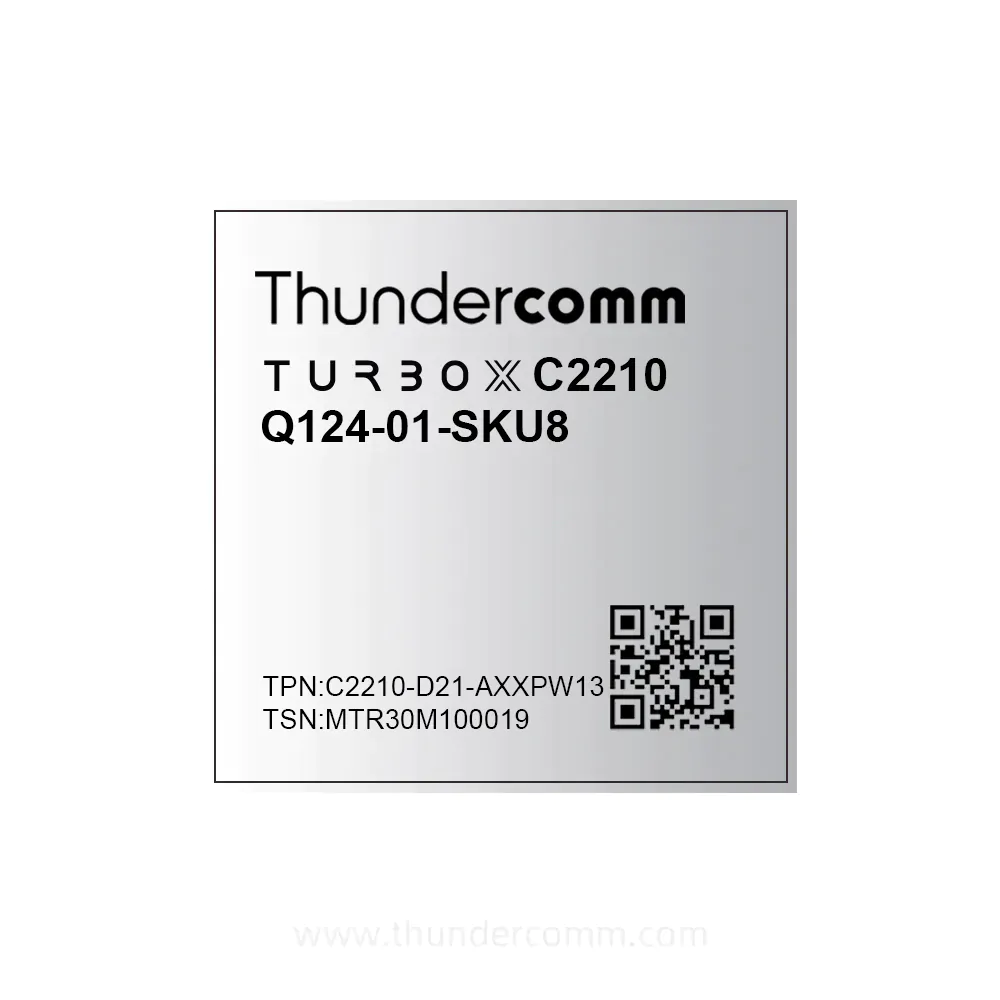

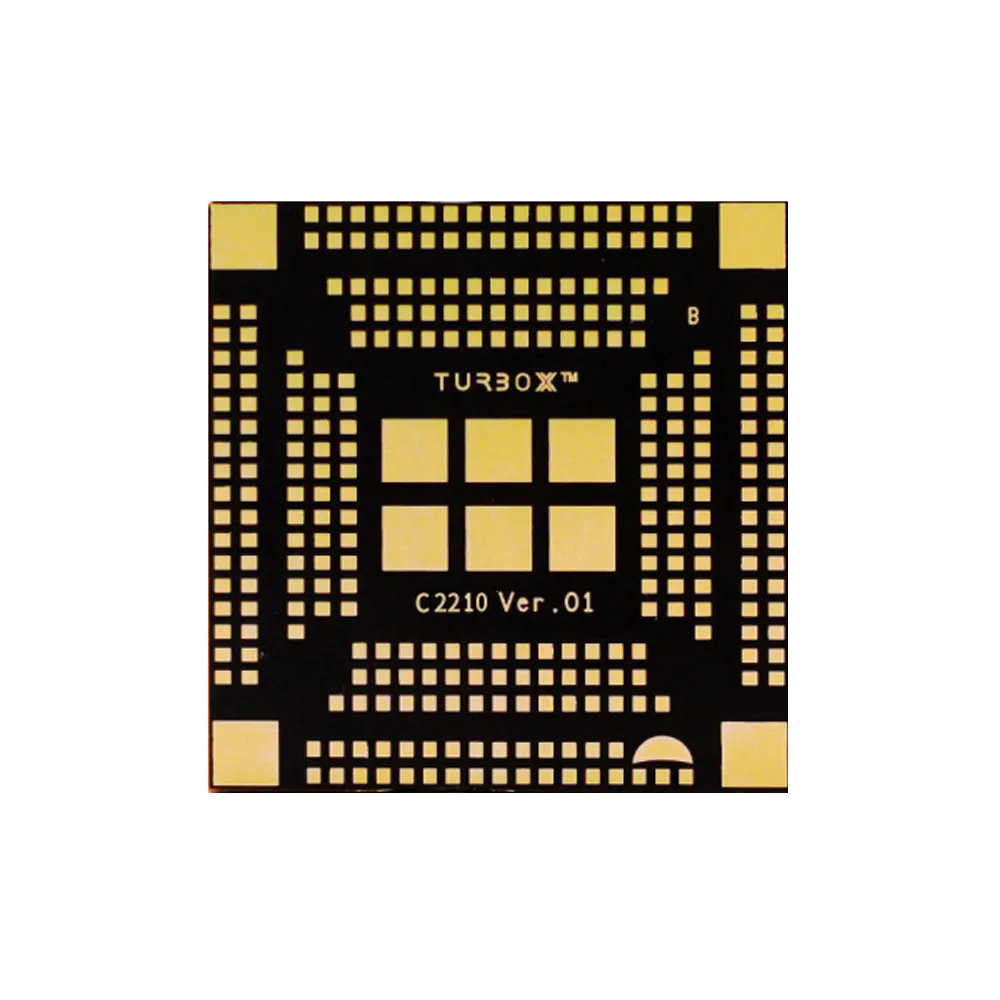

C2210 SOM

TurboX C2210 SOM (System on Module) is designed based on the Qualcomm® QRB2210 platform. This brings high value features to entry-level devices with better performance and improved power consumption. TurboX C2210 SOM supports Linux system and can fit variety of products like Entry-tier Robotics, Smart Home Dock, Smart Camera and Rugged Handheld , etc.


TurboX C2210 SOM Applications

Entry-tier Robotics

Smart Home Dock

Smart Camera

Rugged Handheld

TurboX C2210 SOM Features

Discrete memory facilitates memory configuration for cost saving

Video: 1080P@30FPS encode /1080P@30FPS decode

Low Power Sensor core: supports always-on use cases at reduced power level and cost

C2210 SOM

Display support: HD+, 720×1680 at 60Hz, 10 bit end-to-end, and up to four hardware layers composition

Dual ISPs (Image Signal Processors: two 4-lane CSIs (4/4 or 4/2/1) D-PHY 1.2 at 2.5 Gbps per lane

Connectivity: WLAN 802.11a/b/g/n/ac, Dedicated GNSS RF receiver


Category Description
Region/Operator Global
Platform Qualcomm® QRB2210
Quad-core Arm Cortex-A53 ,64-bit , 2.0GHz
Adreno™ 702 GPU
Hexagon™ QDSP6 v66
Memory 1GB LPDDR4x + 8GB eMMC;
WLAN WLAN 1×1 802.11a/b/g/n/ac
GNSS Support GPS, Glonass, BeiDou, Galileo, QZSS, and SBAS;
Reserve GNSS_IQ to extend support Qualcomm GNSS RF IC (WGR7640);
Encode 1080P@30FPS 8-bit HEVC (H.265)
1080P@30FPS 8-bit H.264
Decode 1080P@30FPS 8-bit H.264
1080P@30FPS 8-bit HEVC (H.265), VP9
Concurrency 1080P@30FPS decode + 720P@30FPS encode
Display Interfaces 1x 4-lane DSI D-PHY 1.2, up to HD+ (720 x 1680) at 60 Hz
Camera Interfaces 2x 4-lane CSI D-PHY 1.2 at 2.5 Gbps per lane
Other Interfaces 1 x USB 3.1 Type C/USB 2.0; 9 x QUP; 1 x SD Card; 1x I2S, MIC & speaker
Operation Temperature -25℃ ~ +75℃
Dimensions (mm) 34mm x 35mm x 2.9mm
Operating System Linux
Regulatory standards FCC/CE/IC/KC/JATE/TELEC
Other Regulatory Standards RoHS/REACH/WEEE/HF
