C2210 Development Kit

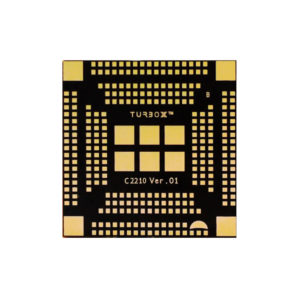

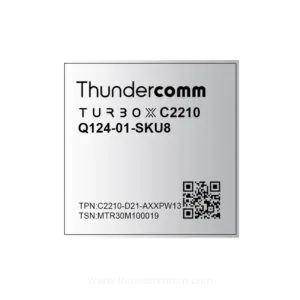

The TurboX C2210 Development Kit is designed based on the C2210 SOM (System On Module) . This is the next generation entry-tier IoT platform based on the Qualcomm® QRB2210 chipset. It brings high-value features to entry-tier devices with better performance and improved power consumption. The C2210 SOM support Linux system and can fit variety of products like entry-tier Robotics, Smart Home Dock, Smart Camera and Rugged Handheld, etc. The Development Kit provides customers with hardware interfaces and software SDK to validate functions easily and build the prototype quickly.

Applications:

TurboX C2210 Development Kit Main Components

• Main IO board: functioning together with various SOMs, the board supports multiple interfaces to connect LCD panels, camera modules, SD cards, SIM cards, and USB devices, as well as on-board UART debug port, buttons, LED, etc.
• Interposer board: functioning together with C2210 SOM, the board can support multiple RF antenna ports.
• Audio board: dedicated board for Audio features.
• Sensor board: the board features A+G sensor, M sensor, barometer sensor, ALS+PRO sensor, NFC (Near Field Communication) sensor. Many other interfaces are reserved for feature versions.
• Camera with FPC (OV13B10).
• Wi-Fi and GNSS antennas.
• Power adaptor.

TurboX C2210 Development Kit Applications

Entry-tier Robotics

Smart Home Dock

Smart Camera

Rugged Handheld

Category Description
Platform C2210 SOM
Camera Interfaces Dual 14-bit ISP, 2 x MIPI-CSI 4lane Connectors, 1 x OV13B10 Camera
Display Interfaces 1 x 5.0“ TFT-LCD with 4L-MIPI DSI D-PHY, 1 x HDMI Out
Audio Interfaces 1 x 3.5mm headset, 4 x Digital Mics, 1 x Line out with PA, 1 x EAR out with PA
Other Interfaces 1 x USB 3.0 Type C; 1x Micro USB(For UART Debug); 2 x SIM Card; 1 x PWM; 1 x SD card; 1 x RTC; 1 x Battery Connector; 1x NFC; 1 x CAN; 1 x UART (for RS232/RS485); 1 x ALS/PROXIMITY SENSOR; 1 x ACCELEROMETER+GYRO Sensor; 1x Magnetic Sensor; 1 x Pressure Sensor; 1x WiFi Antenna; 1 x GNSS Antenna
Operating Environment Operation Temperature: -25℃ ~ +75℃; Operation Humidity: 5%~95%, non-condensing
Dimension 185 x 150mm
OS Support Linux
Type Category Document Name Update Date
Public Documents Product Brief - -
Private Documents Get the Private Documents >

Help Center

Technical Support

(for cusmtomer)

TurboX C2210 Development Kit
Coming Soon
Package List: C2210 SOM & Interposer + Main IO Board + Audio Board + Sensor Board + Camera + Speaker + Antennas + Power Adapter
Lead Time:Expected to ship within 3 weeks after payment complete.

TurboX C2210 Development Kit

TFT-LCD Display Module
5" HD TFT-LCD Display Module with Multi Touch Panel.
Package List: Display Module
