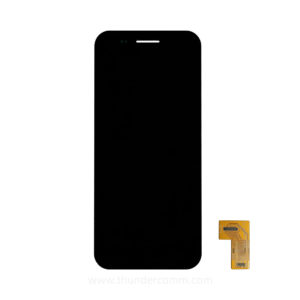

TFT-LCD Display Module

5″ HD TFT-LCD Display Module with Multi Touch Panel.

Applications:

LCM module spec

Item Specification Unit
LCD Size 4.99 inch
Overall Dimension 68.22*132.02*2.645mm (except FPC length) mm
Active Area 62.10*110.40mm mm
Resolution 720*3(RGB)*1280dots -
Dot Pitch 0.02875mm X 0.08625mm mm
Viewing Direction ALL -
Display color 16.7M colors -
Display Mode TFT LCD, Transmissive Mode Normally black -
LCD Driver ILI9881C -
Interface Mode MIPI Video 4-lane -
Inversion Mode Column inversion -
Driver IC RAM Size Ramless -
Weight TBD g typ. -
Operating Temperature From -20 to +70 °C (dry) -
Storage Temperature From -30 to +80 °C (dry) -
TFT-LCD Display Module
5" HD TFT-LCD Display Module with Multi Touch Panel.
Package List: Display Module
