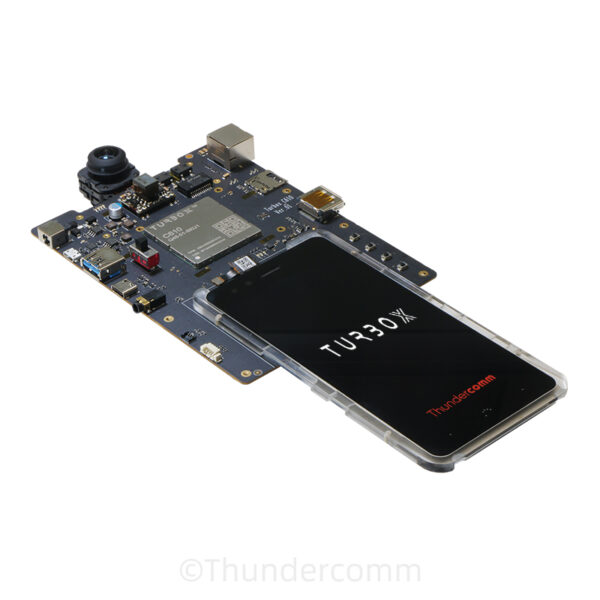

C610/C410 Open Kit

The TurboX C610/C410 Open Kit is a cost-effective solution to evaluate the performance and build the prototype of the smart cameras and intelligent IoT devices quickly. The Open Kit features rich interfaces, including USB Type A, HDMI in, Ethernet, and camera mezzanine-board expansions enabling the Kit “open” for building camera-based devices, including panorama, smart camera and video conference camera. The Open Kit supports Linux and Android operating system, combining powerful artificial intelligence and machine learning to address increasing demand for smart cities, commercial and enterprise, homes and vehicles applications.

CategoryDescription
SOM on boardTurboX C610/C410 SOM
Camera Mezzanine BoardMezz A: 2 x IMX577
Mezz B: 1 x IMX415 + 1 x HDMI IN
Display Interfaces1 x DP; 1 x 5.0" TFT-LCD;
Audio Interfaces1 x 3.5mm headset
6 x Digital Mics(From External Codec)

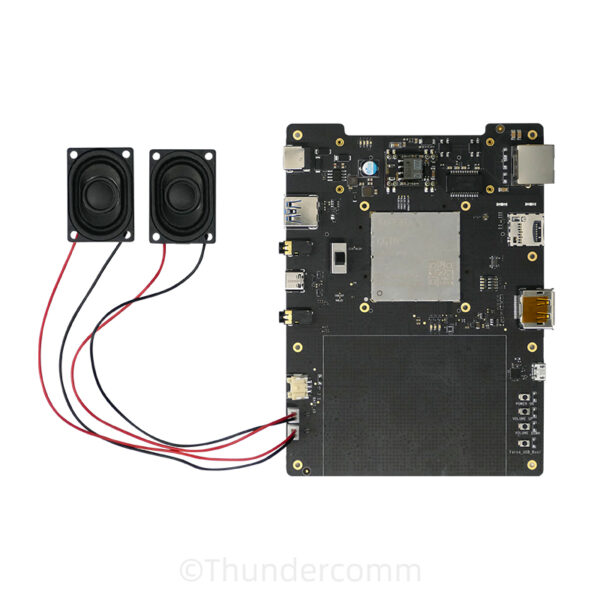

2 x Speaker out (From Codec)

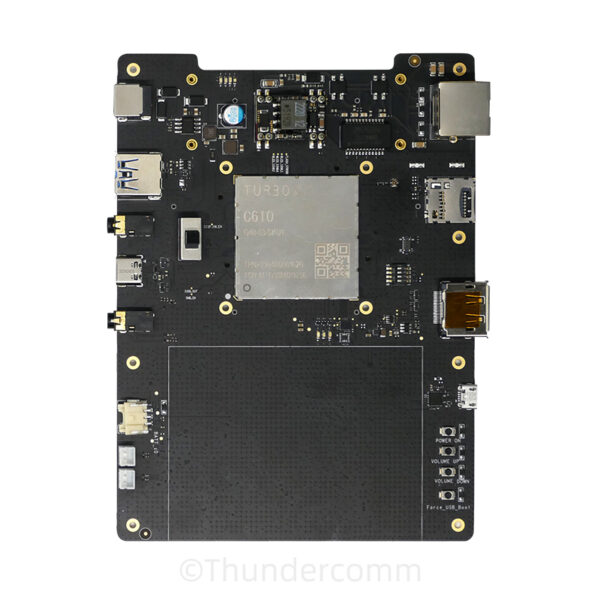

General Interfaces on Mother Board1 x USB 3.1 Type C
1 x USB 2.0 Type A
1 x Micro USB(For Debug)
1 x SD card;
1 x GbE Ethernet
1 x ACCELEROMETER+GYRO Sensor
1 x Wifi/Bt Antenna Connector
6 x LEDs
4 x Keys (Vol Up/Down, Force USB Boot, Power)
Dimension120 x 250 mm
OS SupportLinux, Android
TypeCategoryDocument NameUpdate Date
Public DocumentsProduct Brief[tc-g-1121]_Turbox C610 C410 SOM_Product Brief_V2.1.pdf-
Private DocumentsGet the Private Documents >

Get Support

Help Center

Technical Support

(for cusmtomer)

TurboX C410 Open Kit
The TurboX C410 Open Kit is a cost-effective solution to evaluate the performance and build the prototype of the smart cameras and intelligent IoT devices quickly. The Open Kit features rich interfaces, including USB Type A, HDMI in, Ethernet, and camera mezzanine-board expansions enabling the Kit “open” for building camera-based devices, including panorama, smart camera and video conference camera. The Open Kit supports Linux and Android operating system, combining powerful artificial intelligence and machine learning to address increasing demand for smart cities, commercial and enterprise, homes and vehicles applications.
TurboX C610 Open Kit
The TurboX C610 Open Kit is a cost-effective solution to evaluate the performance and build the prototype of the smart cameras and intelligent IoT devices quickly. The Open Kit features rich interfaces, including USB Type A, HDMI in, Ethernet, and camera mezzanine-board expansions enabling the Kit “open” for building camera-based devices, including panorama, smart camera and video conference camera. The Open Kit supports Linux and Android operating system, combining powerful artificial intelligence and machine learning to address increasing demand for smart cities, commercial and enterprise, homes and vehicles applications.

TurboX 610/410 Open Kit

TFT-LCD Display Module
5" HD TFT-LCD Display Module with Multi Touch Panel.
Mezz A board for C610/C410 Open Kit IMX577 Camera Module
IMX577 Camera Board for C610/C410 Open Kit, Support Dual IMX577 module
IMX577 Camera Module (Single Module)
12M Camera Module (FOV 200°) —— The camera module is designed for using in cellular phone , sports camera ,car camera , snap camera , IP camera and any need small camera module Function. The camera module consists diagonal 7.857mm (Type 1/2.3) CMOS active pixel type image sensor with a square pixel array and 12.47M effective pixels and Lens F/NO. 2.08 ,Field of View Angle (Diagonal) 200 Diag. Furthermore,it realizes 10-bit/12-bit digital output for shooting high-speed and high-definition moving pictures by horizontal and vertical binning and subsampling. Realizing high-sensitivity, low dark current, this module also has an electronic shutter function with variable storage time.
Mezz B board for C610/C410 Open Kit IMX415 Camera module
IMX415 Camera Board, Support one IMX415 modulee and HDMI IN Port
IMX415 Camera Module
The camera module is designed for Smart Video Collaboration Camera. The camera module consists diagonal 6.43mm (Type 1/2.8) CMOS active pixel type image sensor with a square pixel array and 8.46M effective pixels and Lens F/NO. 2.0 ,Field of View Angle (Horizontal) 130 Diag, and also with very optimized TV distortion (<15%). Furthermore,it includes VCM system to achieve auto focusing. This Module realizes 10-bit/12-bit digital output for shooting high-speed and high-definition moving pictures by horizontal and vertical binning and subsampling. Realizing high-sensitivity, low dark current, this module also has an electronic shutter function with variable storage time.
