T95 Development Kit

The TurboX T95 development kit is designed based on the Thundercomm latest NB‑IoT module-T95 SOM(MDM9205) for the IoT. Besides the hardware reference design and LTE IoT SDK, with support of external WIFI chip/sensors/audio codec/LCD functionalities, the dev kit can help customers develop their products faster, better and lower cost to the market. It can support the development of a wide range of devices, with applications in verticals like asset trackers, health monitors, security systems, smart city sensors, alarm panels, and smart meters, as well as a range of wearable trackers.

T95 Development Kit Applications

Portable Radio Transceiver

Wearable

Tracker

Sensors

Utility Meters

SpecificationCategoryT95G-EAT95G-NA
ChipsetCPUCortex-A7 up to 800 MHz with 256 KB L2 cache
MemoryDRAM/NANDInternally DRAM:32 MB/Internally Flash:64MB
Air InterfaceModeLTE CatM1/NB2 Power Class 3 + EGPRSLTE CatM1/NB2 Power Class 3
RF BandsCat-M1:B1/B2/B3/B4/B5/B8/B18/B19/B20/B26/B28

Cat-NB2:B1/B2/B3/B4/B5/B8/B18/B19/B20/B28

EGPRS: 850/900/1800/1900 MHz

Cat-M1: B2/B4/B5/B12/B13/B25*

Cat-NB2:B2/B4/B5/B12/B13/B66*/B71*/B85*

GNSSGPS/Beidou/GLONASS/QZSS
Data RatePeak Download Speed588 kbps (Rel.14 Cat-M1), 127kbps (Rel.14 Cat-NB2)
Peak Upload Speed1119 kbps (Rel.14 Cat-M1), 158.5 kbps (Rel.14 Cat-NB2)
Connectivity

and Peripheral

Interface

BLSP4x BLSP supports UART, SPI, and I2C
GPIO/PWM8 x GPIO , 2 x PWM
UIM1 x UIM1 single voltage (1.8 V)
AntennaLTE and GNSS Antenna with LGA pads
I2S2x I2S
USB1 x USB 2.0 device mode only
Voice*VoLTE/CS VoiceVoLTE over Cat-M1VoLTE over Cat-M1; CS Voice for GSM
CertificationRegulatory&CarrierCE"/VDF"/DT"FCC*/IC"/GCF"/PTCRB*/AT&T*/VzW"
DimensionsSize/Package16 x19x 2.2mm, LGA Package
PowerVoltage Range3.3 V to 4.3V,Typ.3.8V
Temperature RangeOperation-30°C to + 75°C
Storage-40°C to + 85°C
SoftwareOperating SystemThreadX OS
SDKsLTE IoT SDK

* Ongoing, " Planning

Dev Kit

Connectivity

• UIM

• Antenna: LTE,GNSS,Wi-Fi

Audio

• Codec: Mic, Speaker, 3.5mm Audio Jack

Sensor

• 6-Axis: Acc & Gyro

• Ambient & Proximity

• Temperature & Humidity

• Pressure

Peripheral

• USB 2.0

• Expansion Connectors:SPI, Uart, i2C, PWM

• 3.7V Battery Connector

TypeCategoryDocument NameUpdate Date
Public DocumentsProduct Brief[TC_T95_1120]_TurboX T95 SOM_Product Brief_20210323_V2.0.pdfMarch 23, 2021
Private DocumentsGet the Private Documents >

Get Support

Help Center

Technical Support

(for cusmtomer)

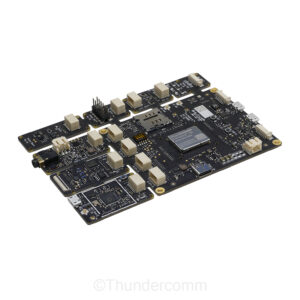

TurboX T95 Development Kit
Main IO(with T95 module) + external cards + power supply + antenna(for both LTE and GPS)
