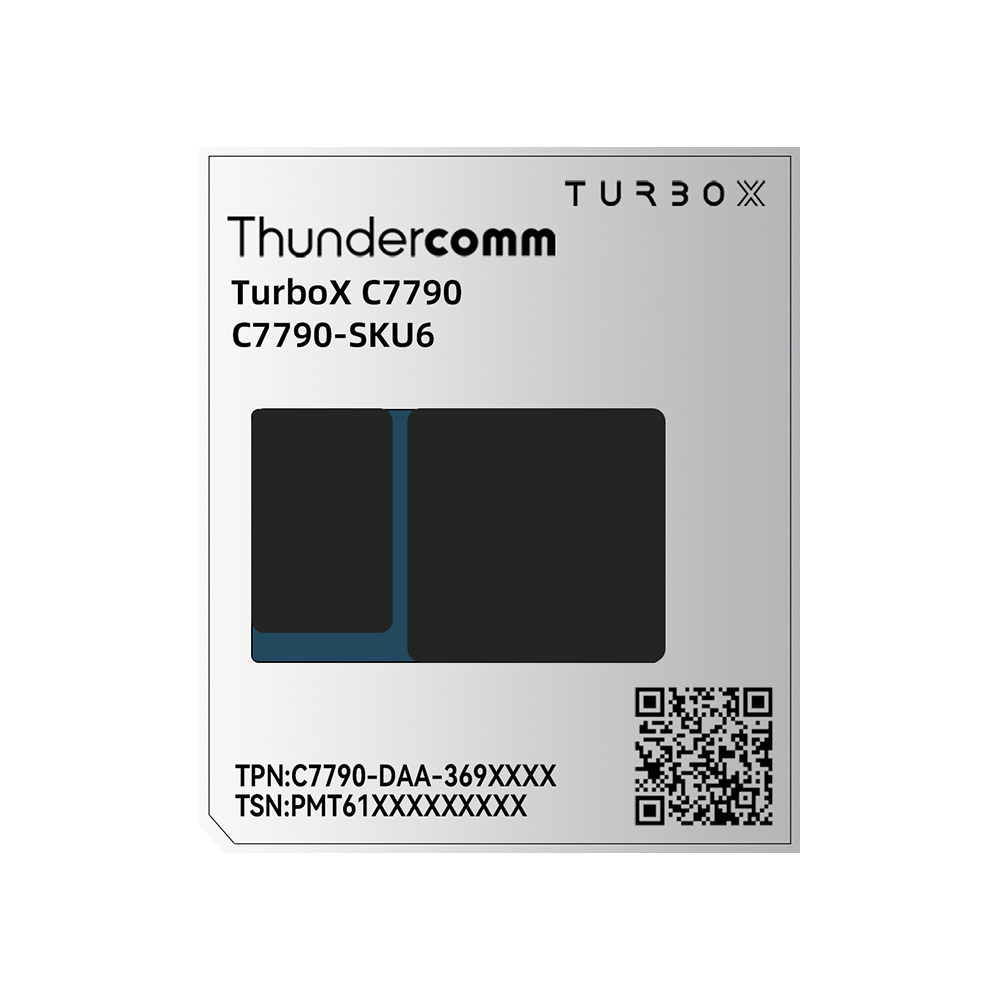

The Thundercomm TurboX C7790 SOM is a highly integrated System on Module (SOM) powered by Qualcomm Dragonwing™ Q-7790 (CQ7790S). Built on a cutting-edge 4nm process, it supports both Android and Linux operating systems. TurboX C7790 supports Android, featuring powerful computing, extreme edge AI processing, and robust video and graphics. It is an ideal platform for IoT products that demand powerful computing, advanced imaging, and exceptional graphics rendering.

Overview

TurboX C7790 SOM Applications

Smart Camera

Video Conference

Automated Manufacturing Robots

Autonomous Mobile Robots (AMRs)

Collaborative Robots

Delivery Robots

Urban Air Mobility (UAM) Transportation

Edge Computing

TurboX C7790 SOM Features

AI AT THE EDGE

24 TOPS of compute power, enabling smart features without cloud latency or added infrastructure.

IMMERSIVE VISUAL EXPERIENCE

Deliver ultra-smooth WQHD+ 144Hz playback, rich graphics

C7790 SOM

CAMERA INTELLIGENCE

Support high-quality imaging with triple ISP, 48 MP capture

STREAMLINED DEVELOPMENT

Accelerate time to market with Android and Linux support, OTA updates

Specifications

Item C7790 SOM
Platform Qualcomm Dragonwing™ Q-7790 (CQ7790S)
OS Support Linux, Android*
Memory 1) UFS 3.12) LPDDR5X SDRAM, 2 x 16-bit wide; mass production up to 4200 MHz
Display 2 x MIPI DSI D-PHY-1.2 4-lane
Support dual MIPI DSI ports
Maximum resolution: WQHD + 144 Hz/WFHD + 180 Hz
HDMI 2.1 with HDCP 2.2 support
Camera 4x MIPI CSI D-PHY v1.2 /C-PHY v2.0
Qualcomm spectra ISP supports connectivity to multiple cameras due to four C-PHY/D-PHY
Real-time sensor input resolution: 21 + 21 + 21
Four concurrent MIPI-CSI configurable in 4 + 4 + 4 + 4 configuration
Encode/Decode VPU – fifth-generation UHD video processing unit
Video decode: Up to 4K120 for H.264/H.265
Video encode: Up to 4K60 for H.264/H.265/VP9
Support for VC1 decode
Video concurrency: UHD30 decode (8/10) + UHD30 encode (8)
HDR playback: Support for HDR10 and HDR10+
HFR capture: 720p at 240 fps
Audio eNPU/AI accelerator: Embedded AI accelerator for LPI and low-power use cases
DSP offload for audio playback, including USB digital audio and Bluetooth audio
USB 1 x USB 3.1 Gen2 with DP1.4
PCIe 1 x PCIe Gen3 1-lane
1 x PCIe Gen3 2-lane
QUP QUPs, SSC QUPs
SDIO SDC (SD3.0)
SD card
Debug port 1 x Debug UART 1 x JTAG
Power Voltage: 3.2V ~ 4.8V
Dimensions and Form Factor Size: 39mm x 33mm x 3.35mm
Weight: 8g
Interface form factor: LGA-628
Operating Temperature -30°C to +75°C
Certificate RoHS*/Reach*/WEEE*/TSCA*

*Planning

1) Please note that storage devices such as UFS, eMMC, NAND, etc. have a limit to the total amount of data that can be written. Exceeding this limit can cause damage to the storage device.

2) For custom configuration options, contact our sales team.
