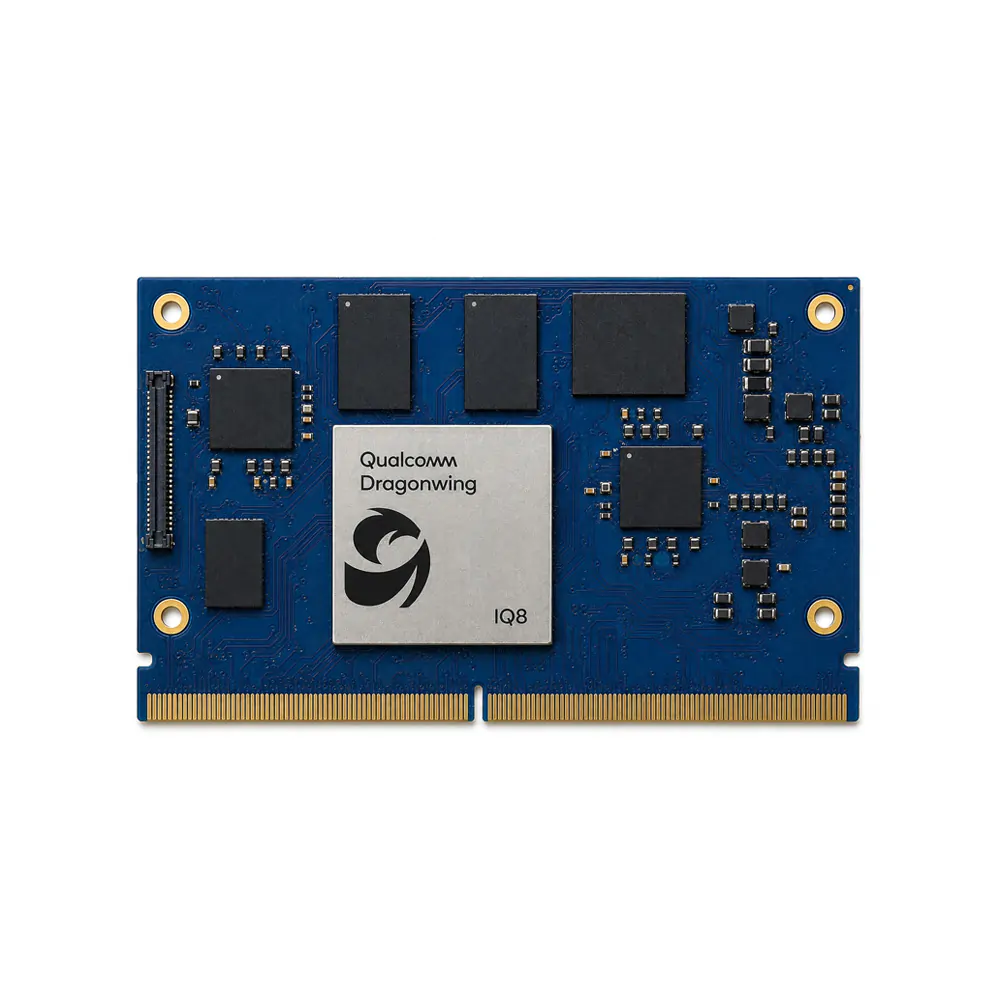

TurboX I8275 is an 82 mm x 50 mm SMARC mechanically compatible edge AI SOM family based on Qualcomm Dragonwing IQ8/QCS8275. It combines AI computing, multi-camera processing, 4K video acceleration and high-speed expansion for machine vision, robotics and industrial IoT applications.
The product family is planned to cover multiple I8275-AC and I8275-AA configurations for different performance and operating-temperature requirements. The initial release will use the I8275-AC configuration, providing up to 20 TOPS of AI performance, 16 GB LPDDR5X memory and 128 GB UFS 3.1 storage. Planned I8275-AA variants will extend the family to up to 40 TOPS.
Initial I8275-AC SOM samples are targeted for late November to early December 2026, subject to PCB availability, board bring-up and validation.

Overview

TurboX I8275 SOM Applications

Industrial Applications

  • Industrial Machine Vision
  • AOI & Quality Inspection
  • Industrial Robots
  • Autonomous Mobile Robots (AMRs)
  • Edge AI Computing
  • Industrial AI Gateways

Commercial Applications

  • Smart Cameras
  • Video Conferencing Systems
  • Smart Retail
  • AI Kiosks
  • Digital Signage
  • Intelligent Video Analytics

TurboX I8275 SOM Features

TurboX I8275 SOM Features
Multi-SKU roadmap covering I8275-AC and I8275-AA
Up to 20 TOPS at launch, with up to 40 TOPS planned
16 GB LPDDR5X and 128 GB UFS 3.1
Three 4-lane MIPI CSI camera interfaces
MIPI DSI and DisplayPort 1.4 MST
TurboX I8275 SOM
Accelerated 4K video encoding and decoding
PCIe Gen4, USB 3.1/2.0 and Gigabit Ethernet
External Wi-Fi, Bluetooth and 5G through carrier expansion
82 mm x 50 mm SMARC mechanically compatible form factor
Qualcomm Linux support

Specifications

Category Description*
Platform Qualcomm Dragonwing IQ8 / QCS8275-0-AA
CPU: Kryo Gen 6, 2x Prime @ 2.35GHz + 2x Gold @ 2.10GHz + 4x Silver @ 1.95GHz
GPU: Adreno 623 @ 877MHz
AI: Hexagon Tensor Processor; HMX @ 1.2GHz / HVX @ 1.5GHz
Multimedia: Spectra 692 ISP / Adreno DPU1199 / Adreno VPU623
AI 40 TOPS
Memory 16 GB LPDDR5X
Storage 128 GB UFS 3.1
Connectivity No-RF; external Wi-Fi / BT / 5G through carrier expansion
Display 1x 4-lane MIPI DSI
1x DP v1.4
Camera 3x 4-lane MIPI CSI
Video Video decode up to 4K at 135 fps
Video encode up to 4K at 85 fps
PCIe 1x PCIe Gen4 4-Lane, 1x PCIe Gen4 2-Lane
USB 1x USB 3.1
1x USB 2.0
Ethernet 1x GbE
Interfaces QSPI, UART, I2C, SPI, I2S/TDM/PCM, GPIO
Debug Debug UART
Operating Environment Industrial: -40°C ~ +85°C; commercial: -30°C ~ +75°C
Power 12V IN
Format SMARC mechanical compatible
Dimension 82mm x 50mm
OS Qualcomm Linux
Category Description*
Platform Qualcomm Dragonwing IQ8 / QCS8275-0-AC

CPU: Kryo Gen 6, 2x Prime @ 2.05GHz + 2x Gold @ 1.90GHz + 4x Silver @ 1.80GHz

GPU: Adreno 623 @ 599MHz

AI: Hexagon Tensor Processor; HMX @ 672MHz / HVX @ 960MHz

Multimedia: Spectra 692 ISP / Adreno DPU1199 / Adreno VPU623
AI 20 TOPS
Memory 16 GB LPDDR5X
Storage 128GB UFS 3.1
Connectivity No-RF; external Wi-Fi / BT / 5G through carrier expansion
Display 1x 4-lane MIPI DSI

1x DP v1.4
Camera 3x 4-lane MIPI CSI
Video Video decode up to 4K at 135 fps

Video encode up to 4K at 85 fps
PCIe 1x PCIe Gen4 4-Lane, 1x PCIe Gen4 2-Lane
USB 1x USB 3.1

1x USB 2.0
Ethernet 1x GbE
Interfaces QSPI, UART, I2C, SPI, I2S/TDM/PCM, GPIO
Debug Debug UART
Operating Environment Industrial: -40°C ~ +85°C; commercial: -30°C ~ +75°C
Power 12V IN
Format SMARC mechanical compatible
Dimension 82mm x 50mm
OS Qualcomm Linux

* Subject to change
