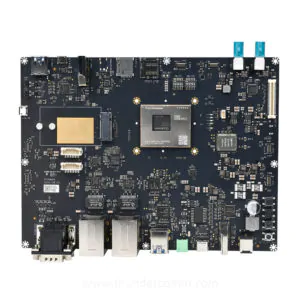

C8550 Development Kit

Thundercomm TurboX C8550 Development Kit is a high performance Development Kit which is powered by next Gen Flagship Qualcomm® Snapdragon™ QCS8550 processor. It supports Android, featuring in advanced AI increases, huge camera and video advancements and evolved graphics capability. It is an ideal platform for IoT products require high computing power, advanced camera capability, and superior graphics performance.
TurboX C8550 Development Kit supports customers accelerate product development process and can be widely used in Smart Camera, Video Conference, Automated Manufacturing Robots, Autonomous Mobile Robots(AMRs), Collaborative Robots, Delivery Robots, Urban Air Mobility (UAM) Transportation, Edge Computing and other application scenarios.

Applications:

TurboX C8550 Development Kit Applications

Smart Camera

Video Conference

Automated Manufacturing Robots

Autonomous Mobile Robots(AMRs)

Collaborative Robots

Delivery Robots

Urban Air Mobility (UAM) Transportation

Edge Computing

Category Description
SOM on board TurboX C8550 SOM
Display Interfaces 1 x HDMI OUT
1 x DP V1.4 over Type-C
Audio Interfaces 2 x Speaker out
1 x HDMI In with Audio (Over I2S interface)
1 x HDMI Out with Audio (Over I2S interface)
Camera Interface 3 x 4 Lanes D-PHY Camera (one is AON camera)
1 x 3 Trio C-PHY Camera
2 x 2 Lanes D-PHY Camera
2 x GMSL
General Interfaces on Mother Board 1 x USB 3.1 Type C
7 x USB 3.0 Type A
2 x Micro USB for debug (one for 5G moudle debug)
1 x SDIO Wi-Fi module
1 x TF card socket(no-PoR)
1 x SIM card socket
2 x 1000M Ethernet Port
1 x M.2 for 5G module or SSD module
1 x HDMI Out
1 x HDMI In
2 x DMIC connector, support up to 8 DIMCs
2 x DB9 connectors, one for RS232, one for RS485
1 x CAN
1 x HS connector
1 x 3.5mm connector
1 x Fan connector
Power Supply DC in 24V
Operating Operation Temperature: -35℃ ~ +75℃
Operation Humidity: 5%~95%, non-condensing
Dimension 150mm x 200mm
OS Support Android 13 / LE
LU - in planning
Type Category-1 Catagory-2 Document Name
Public Documents SOM Product Brief [tc-P-1110-en]_TurboX_C8550_SOM_Product_Brief_V1.0.pdf
Dev Kit Quick Start Guide [tc-P-2110]_TurboX_C8550_DK_Quick_Start_Guide_V1.0.pdf
Private Documents Get the Private Documents >

Get Support

Help Center

Technical Support

(for cusmtomer)

TurboX C8550 Development Kit
Package List: QCS8550SOM+Main IO+power supply+ USB cable+2*speaker+1*OV9282 with FPC+1*IMX577 with FPC
Lead Time:Pre-sale, expected to ship in early September.

$1599
