CM450/C450 SOM

Cost-effective compute module gives broad access to networks in all regions of the world.

The CM450 SOM (System On Module)is designed based on the Qualcomm 450 mobile platform.It brings high-value features to mid-tier devices, designed to support all-day battery life, fast LTE connectivity, enhanced camera, advanced graphics, and more. The ultra-compact form factor of the module can be fit into any mobile device such as translator,handheld pos and tablet. It is ideal platform for OEMs to rapidly develop cost-effective cellular devices to the market.

Overview

CM450/C450 SOM Applications

Translator

Dash Camera

Dash camera

POS

Digital Signage

Vending Machine

CM450/C450 SOM Features

Mic Array:

4 or 3 far field and noise cancellation

Video:

4K@30 fps Encode & Decode, WDR

Low Power Sensor Core:

Support new always-on use cases at reduced power levels and cost

CM450/C450 SOM

Global multi-bands:

Support DL 2X20MHz CA, DL MIMO 2×2

Quick Charge 3.0 technology

Dual image signal processors (ISPs) support superior mobile camera experiences

Specifications

CategoryDescription
PlatformSnapdragon™ SDM 450,Octa-Core, 64-bit, 1.8GHz
Qualcomm® Adreno™ 506 GPU
Qualcomm® Hexagon™ QDSPv56
MemoryLPDDR3 2GB+eMMC 16GB / LPDDR3 3GB+32GB
WWANGlobal bands supported:
LTE FDD:B1,B2,B3,B4,B5,B7,B8,B12,B13,B17,B18,B19,B20,B26,B28
LTE TDD: B38,B39,B40,B41,B71
WCDMA:B1,B2,B3,B4,B5,B6,B8,B19
CDMA:BC0
GSM:850/900/1800/1900MHz
Cat 6 Modem with 2x20MHz CA, DL MIMO 2 × 2:
ConnectivityWIFI 802.11 ac/a/b/g/n & BT 4.x (BR/EDR + BLE)
Encode1080P@60fps (H.264/H.265/VP8)
Decode1080P@60fps (H.264/H.265/ VP8/VP9)
Display Interfaces2x MIPI-DSI 4-lane ;FHD(1920*1200)@60fps
Camera Interfaces3x MIPI-CSI, 4-lane, 2.1 Gbps per lane; supports CMOS and CCD sensors Up to 24 MP sensors
Other Interfaces1 x Slimbus; 1 x USB 3.0; 1 x SDIO; 2 x I2S; 8 x BLSP; GPIOs
Operating EnvironmentOperation Temperature: -25℃ ~ +75℃ Operation Humidity: 5%~95%, non-condensing
Voltage3.8V ~ 4.2V

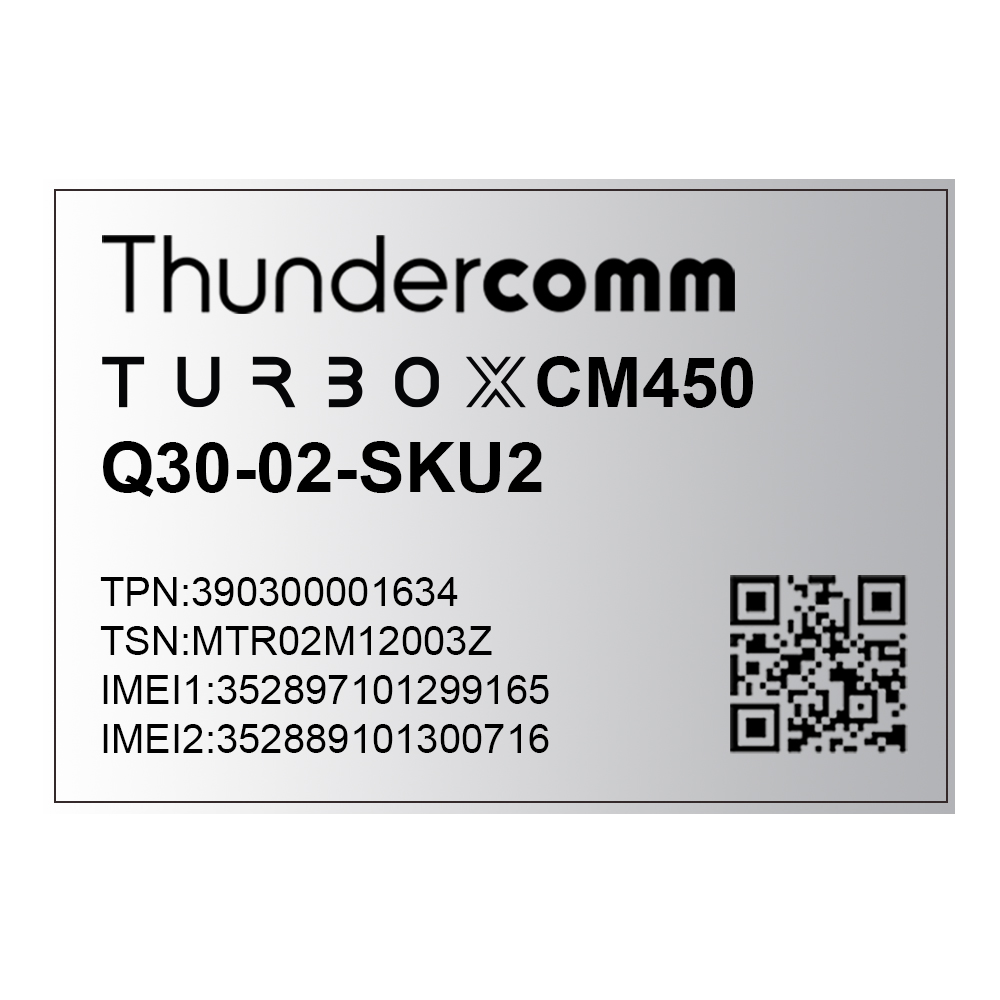

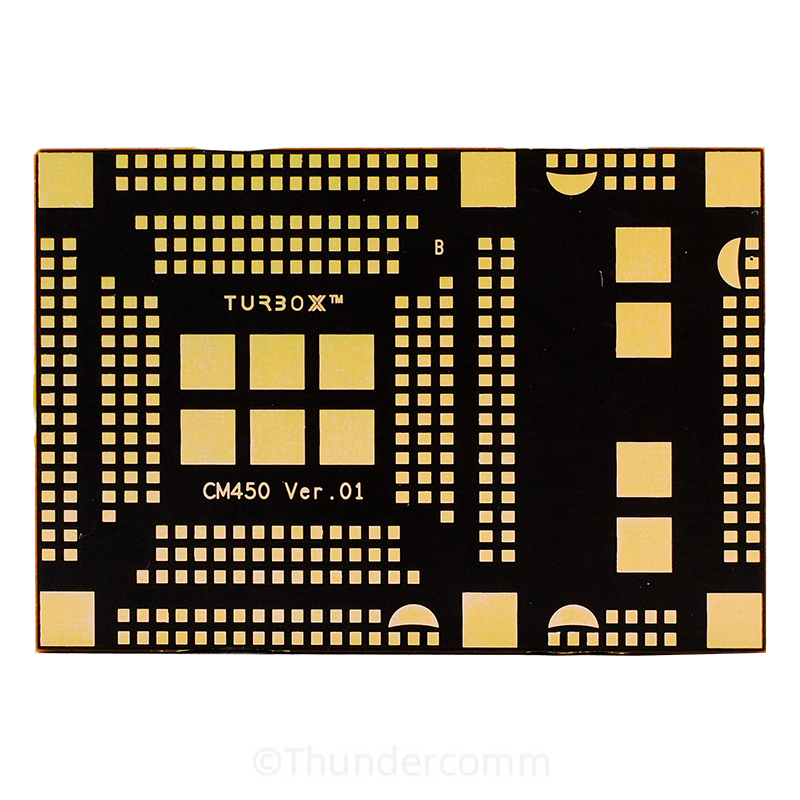

DimensionLGA: 35 x 51 x 2.3mm(Modem version)

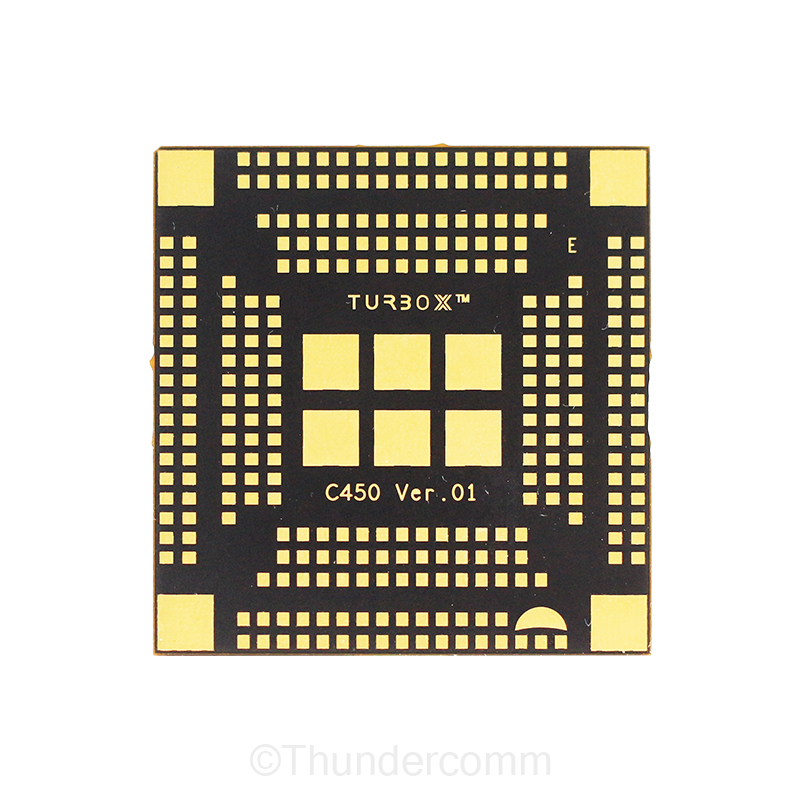

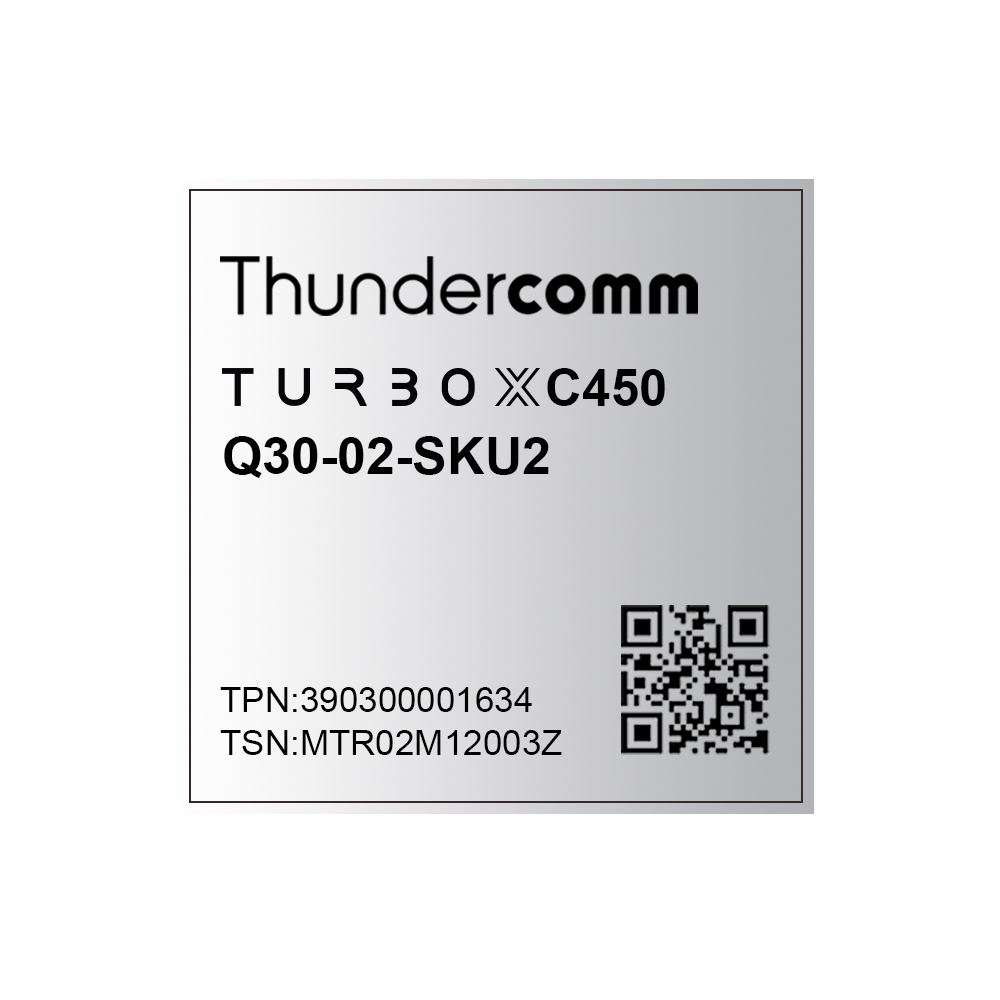

LGA: 35 x 34 x 2.3mm(Wifi only)
OS SupportAndroid 10
