A cost-effective compute module gives broad access to networks in all regions of the world.

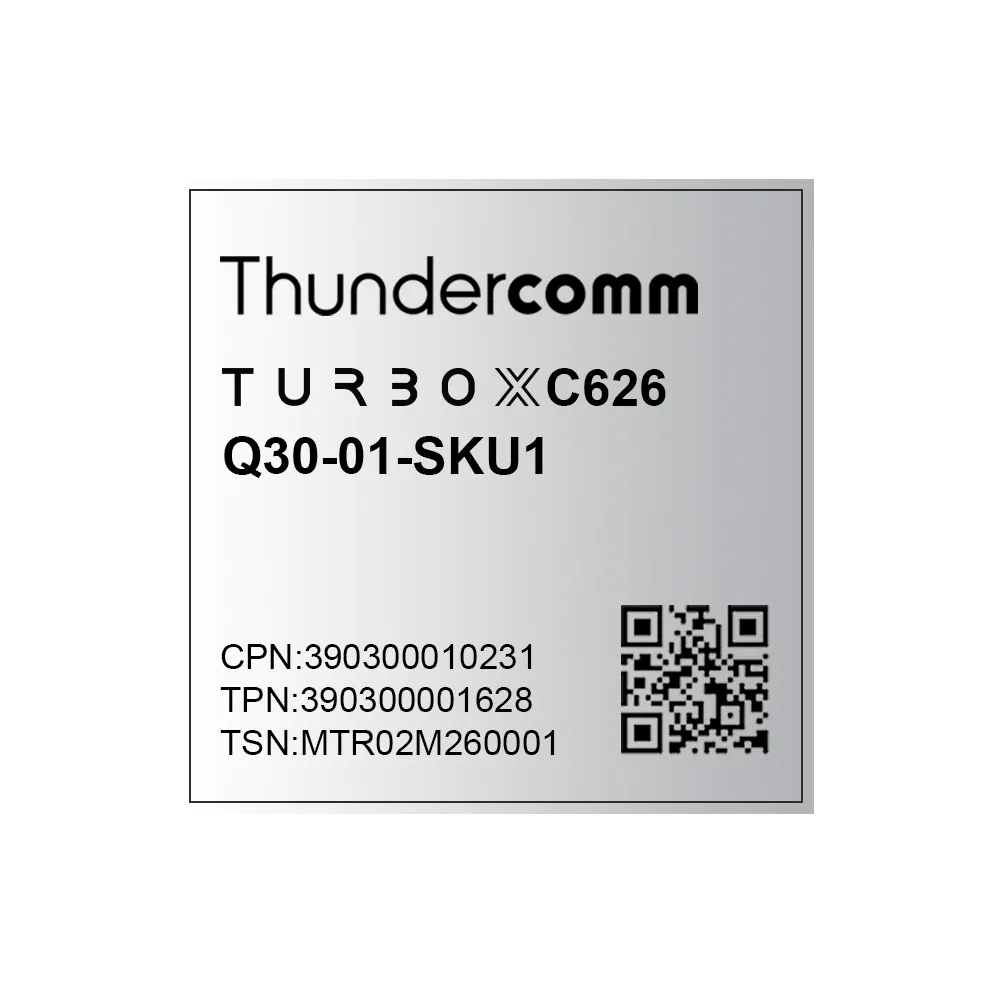

The TurboX CM625/C626 SOM (System On Module）is designed based on the Qualcomm 625 mobile platform. It brings high-value features to mid-tier devices, designed to support all-day battery life, fast LTE connectivity, enhanced camera, advanced graphics, and more. The ultra-compact form factor of the module can be fit into any mobile device such as translator, handheld pos, or tablet. It is an ideal platform for OEMs to rapidly develop cost-effective cellular devices to the market.

Product Overview

CM625/C626 SOM Applications

Translator

Dash Camera

POS

Digital Signage

Vending Machine

CM625/C626 SOM Features

Mic Array

4 or 3 far field and noise cancellation

Video

4K@30 fps Encode & Decode, WDR

Low Power Sensor Core

Support new always-on use cases at reduced power levels and cost

CM625/C626 SOM

Global multi-bands

Support DL 2X20MHz CA, DL MIMO 2×2

Quick Charge 3.0 technology

Dual image signal processors (ISPs) support superior mobile camera experiences

Dev Kit

Display

  • HDMI Out
  • Mipi Display
  • LVDS,eDP

Peripheral

  • Ethernet
  • USB 3.0/USB 2.0
  • SD Card
  • Expansion Connector:Uart,SPI,I2S,PWM

Audio

  • WCD9335 Codec: Mic, Speaker, Headset

Connectivity

  • Wifi & NFC
  • External Antenna:LTE,GNSS Wifi

Camera

  • Autofocus Module with flash LED

Specifications

Category Description
Platform Snapdragon™ MSM8953,Octa-Core, 64-bit, 2.2GHz
Qualcomm® Adreno™ 506 GPU
Qualcomm® Hexagon™ QDSPv56
Memory LPDDR3 2GB+eMMC 16GB / LPDDR3 3GB+32GB
WWAN Global bands supported:
LTE FDD:B1,B2,B3,B4,B5,B7,B8,B12,B13,B17,B18,B19,B20,B26,B28
LTE TDD: B38,B39,B40,B41,B71
WCDMA:B1,B2,B3,B4,B5,B6,B8,B19
CDMA:BC0
GSM:850/900/1800/1900MHz
Cat 6 Modem with 2x20MHz CA, DL MIMO 2 × 2:
Connectivity WIFI 802.11 ac/a/b/g/n
Encode 4K@30fps (H.264/H.265/VP8)
Decode 4K@30fps (H.264/H.265/ VP8/VP9)
Display Interfaces 2x MIPI-DSI 4-lane ；FHD(1920*1200)@60fps
Camera Interfaces 3x MIPI-CSI, 4-lane, 2.1 Gbps per lane; supports CMOS and CCD sensors Up to 24 MP sensors
Other Interfaces 1 x Slimbus; 1 x USB 3.0; 1 x SDIO; 2 x I2S; 8 x BLSP; GPIOs
Operating Environment Operation Temperature: –25℃ ~ +75℃ Operation Humidity: 5%~95%, non-condensing
Voltage 3.8V ~ 4.2V
Dimension LGA: 35 x 51 x 2.3mm(Modem version)
LGA: 35 x 34 x 2.3mm(Wifi only)
OS Support Android 10
