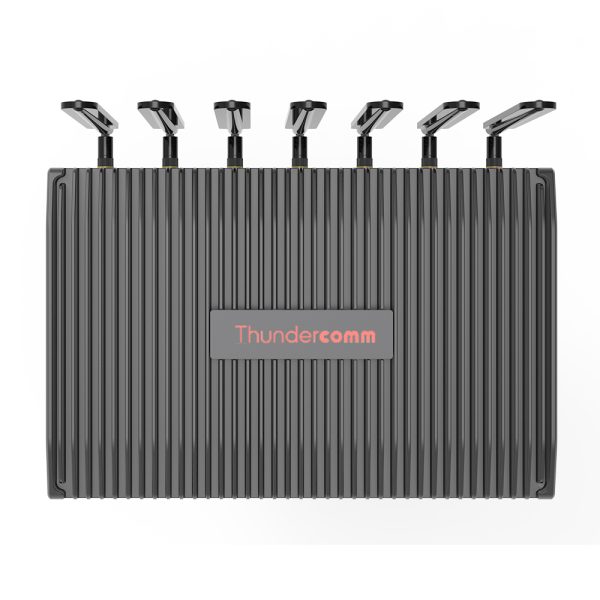

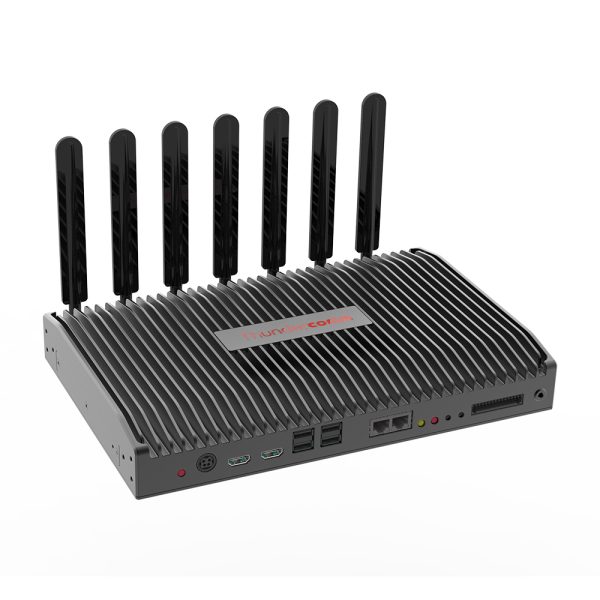

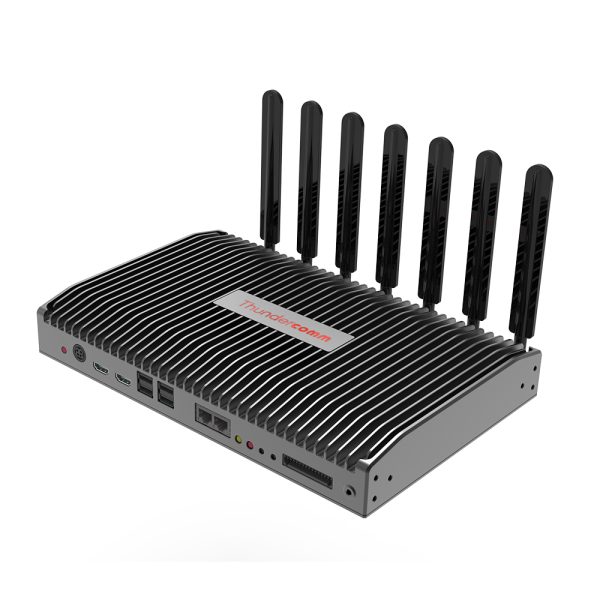

EB6 Edge AI Box

EB6 Edge AI Box is an edge computing device that can provide ultra-high AI performance with 15 TOPS of SoC and extensible 70 TOPS AI performance accelerator card. Support 24 channels FHD video decoding. The industrial-grade design, assures reliability and stability of the product. Ultra-high AI performance and embedded with OSware.Edge, supports edge-cloud synergy, remote AI algorithm and application deployment, FOTA, which make it widely applied to the fields of applications like smart healthcare, smart building, smart grid, smart traffic, smart factory, etc.

Applications:

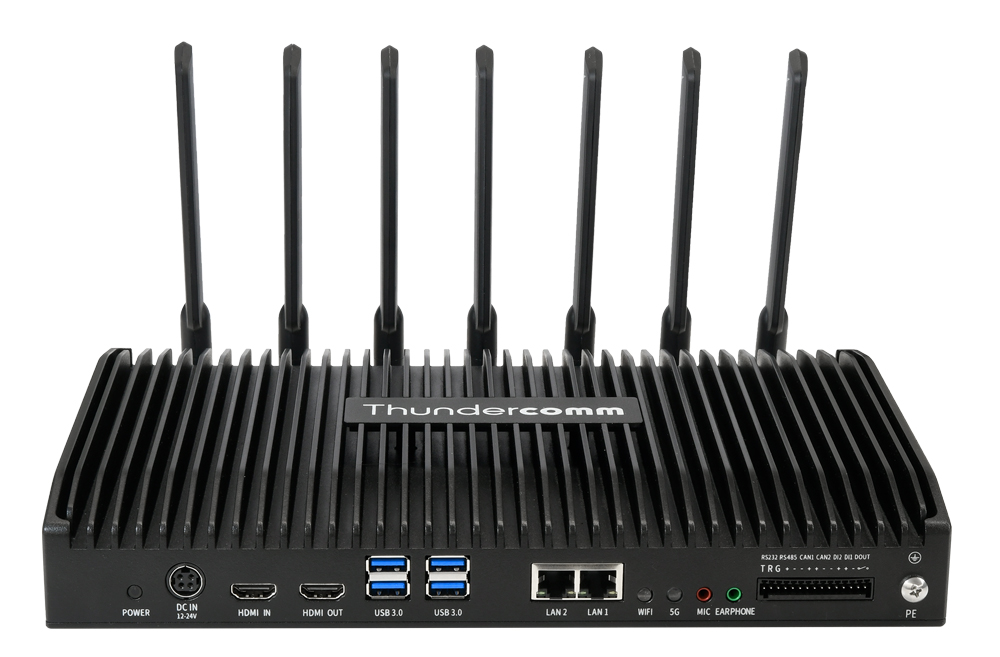

EB6 Edge AI Box Features

  • Support 15 TOPS AI performance and 24 channels FHD video decoding
  • Support extensible AI performance accelerator card 70 TOPS (INT8) / 35 TFLOPS(FP16)
  • Wide temperature range, industrial design, stable performance and solid structure
  • Support 5G, Wi-Fi6, G-bits Ethernet network
  • Rich and high scalability interfaces
  • End-to-end security mechanism to ensure device security
  • Device-edge-cloud synergy

EB6 Edge AI Box Application Scenarios

Smart Healthcare
● Real-time image analysis
● Al assisted detection
● Operational quality control
● Al automatic reporting and data annotation
● Remote expert consultation

Smart Building
● Advanced face recognition:
Detection error rate<0.01%(over 10K)
● 200,000 embedded base libraries:
-Epidemic prevention and mask detection
-People and license plate access control
-Connection with turnstile

Smart Grid
● Safety protection for high-risk operations
● Automatic alarm for firework detection
● Real-time warning of remote monitoring
● Electrical equipment status monitoring
● End to end solution

Smart Traffic
● Multi-stream computer vision algorithm
● Edge analysis for pedestrian and traffic flow
● ADAS,DMS and face recognition
● Support OTA and remote monitoring
● Road traffic safety prevention, reduce traffic accidents

Smart Factory
● Monitoring of uniforms and safety helmets
● Electronic fence perimeter protection
● Real-time monitoring of operational safety
● Quick implementation and deployment
● End to end solution

Category Description
Platform OS Linux
SoC CPU: 8 cores CPU, CPU clock speed up to 2.84GHz.
Artificial Intelligence (AI) Engine 15TOPS.
Video Processor: video decoding 8K@60FPS, video encoding 8K@30FPS
System Memory RAM 8GB,2x Non-POP Memory 4GB LPDDR5
Storage Flash 128GB UFS3.0
Expansion SD Card, SSD
Extensible AI performance Al card QAIC100-E, up to 70TOPS(INT8), up to 35 TFLOPS(FP16)
Peripheral interface HDMI out 1x HDMI out, support 1080P@60FPS
HDMI in 1x HDMI in,4K@60FPS
Audio in/out 1x MIC, 1x Earphone
Ethernet 2x Gigabit ethernet(10M/100M/1000M)
USB 4x USB 3.0 Type-A
Micro SD 1x Micro SD slot
SIM 1x Nano SIM card slot
COM Port 1x RS232, 1x RS485
CAN 2x CAN bus
DI/DO 2x DI(Photocoupler), 1x DO(Switch: Short/OFF, Vdcmax:220V,Vacmax:250V)
Wireless Connectivity WiFi M.2, 802.11a/b/g/n/ac/ax, 2x2 MIMO
5G M.2 5G module(optional), multimode support:2G/3G/4G/5G NR sub-6
GPS GPS, Beidou and others
Mechanical Dimension 305mmx200mmx44mm
Mount Desktop, Wall mount, Rack mount
Environment Operation Temperature Standard Temperature:-20℃~+60℃, Extendable temperature:-40℃~+60℃
Storage Temperature & Humidity -40℃~+70℃, 10%~90%, non-condensing
Waterproof IP40
Anti-Vibration 0.5Grms@5~500Hz, random
Certification CE, FCC, JATE/TELEC, CCC/SRRC, RoHS/Reach/WEEE
