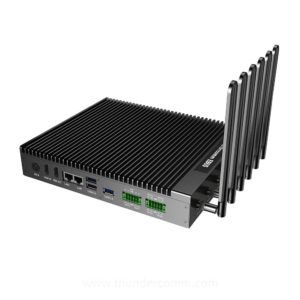

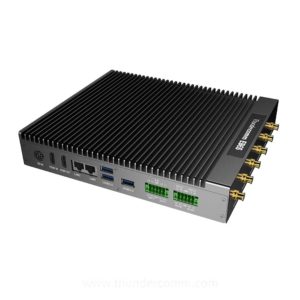

EB6S Edge AI Station

EB6S Edge AI Station is an edge computing device that can provide ultra-high AI performance with 15 TOPS of SoC and extensible 70/200 TOPS AI performance accelerator card. Support 24 channels FHD video decoding. The industrial-grade design assures reliability and stability of the product. Embedded with OSware.Edge, supports edge-cloud synergy, remote AI algorithm and application deployment, FOTA, which make it widely applied to the fields of applications like smart healthcare, smart building, smart grid, smart traffic, smart factory, etc.

Applications:

Amazon Qualified Device
EB2/EB3G2/EB5/EB6S Edge AI Station are AWS-qualified edge devices. Customers can use AWS IoT Greengrass on those Edge AI Stations, to extend cloud capabilities to on-premise devices, which can be closer to the source of information to collect and analyze data, autonomously respond to local events, and communicate securely with each other on the local network.
AWS Partner Solutions Finder >

EB6S Edge AI Station Features

  • Support 15 TOPS AI performance and 24 channels FHD video decoding
  • Support extensible AI performance accelerator card 70/200 TOPS (INT8) , 35/100  TFLOPS(FP16)
  • Wide temperature range, industrial design, stable performance and solid structure
  • Support 5G, Wi-Fi6, G-bits Ethernet network
  • Rich and high scalability interfaces
  • End-to-end security mechanism to ensure device security
  • Device-edge-cloud synergy

EB6S Edge AI Station Application Scenarios

Smart Healthcare
● Real-time image analysis
● Al assisted detection
● Operational quality control
● Al automatic reporting and data annotation
● Remote expert consultation

Smart Building
● Advanced face recognition:
Detection error rate<0.01%(over 10K)
● 200,000 embedded base libraries:
-Epidemic prevention and mask detection
-People and license plate access control
-Connection with turnstile

Smart Grid
● Safety protection for high-risk operations
● Automatic alarm for firework detection
● Real-time warning of remote monitoring
● Electrical equipment status monitoring
● End to end solution

Smart Traffic
● Multi-stream computer vision algorithm
● Edge analysis for pedestrian and traffic flow
● ADAS,DMS and face recognition
● Support OTA and remote monitoring
● Road traffic safety prevention, reduce traffic accidents

Smart Factory
● Monitoring of uniforms and safety helmets
● Electronic fence perimeter protection
● Real-time monitoring of operational safety
● Quick implementation and deployment
● End to end solution

Category Description
PlatForm OS LU18.04
SoC QRB5165N
System Memory RAM 8GB,  2x Non-POP Memory 4GB LPDDR5
Storage Flash 128GB UFS3.0
Expansion 1x MicroSD Card slot; 1x M.2 Connector, support 2280 NVMe SSD(optional)
Extensible AI performance AI   card Support two kinds of Qualcomm AI card (optional), 70 / 200 TOPS(INT8), 35 /100 TFLOPS(FP16)
Peripheral interface HDMI 1x HDMI out, 1080p@60fps
1x HDMI in, 4k@30fps
Audio 2x 3.5 inch Jack for 1x MIC, 1x Earphone
Ethernet 2x RJ45, Gigabit ethernet(10/100M/1000M)
USB 3x USB 3.0 Type A , 1x USB3.1 Type C
COM Port Phoenix connector, 2x RS485, 2x RS232
DI/DO Phoenix connector, 4x DI(Photocoupler), 2x DO(Switch: Short/OFF)
SIM 1x NanoSIM card slot
Antenna 6x Antenna connector, 2x  for WIFI, 4x for  4G/5G
Wireless connection WIFI Support M.2 WIFI module (WIFI module optional)
4G/5G Support M.2 3042 4G/3052 5G NR Sub-6 module (4G/5G module optional)
Button&Indicators Buttons Power key, Reset key
LEDs Power status, WIFI status, 5G Status
Others RTC Battery CR2032 RTC Battery
Power DC Input Input DC range support from 12V to 24V
Mechanical Dimension 235mm x 200mm x 42mm
Weight Body: 1920, AC-DC adaptor: 452g
Mount Desktop, Wall mount
Environment Proof Level IP40
Operation Temperature & Humidity -20~60℃, 5%~95% non-condensing
Storage Temperature & Humidity -40~80℃, 5%~95% non-condensing
Catagory Class Type Document Name
Public Documents EB6S Edge AI Station Product Brief EB6S_Edge_AI_Station_Product_Brief.pdf
Private Documents Get the Private Documents >
