I8275 Development Kit

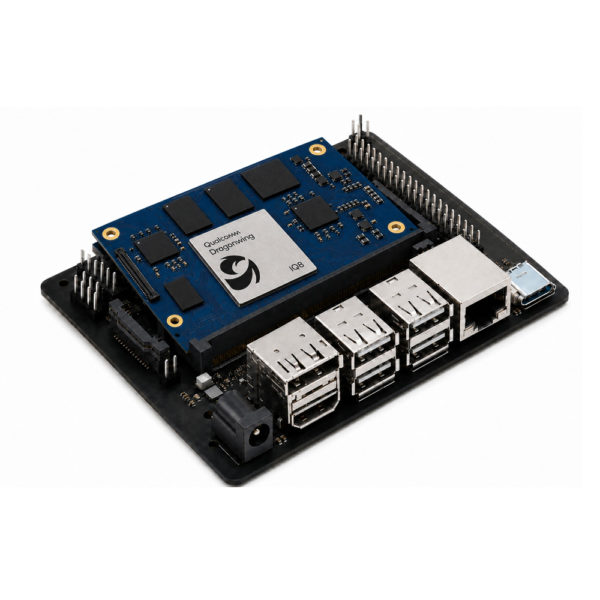

TurboX I8275 Development Kit is an evaluation platform designed to accelerate development with the TurboX I8275 SOM family. The initial configuration integrates the I8275-AC SOM, providing up to 20 TOPS of AI performance for machine vision, robotics and industrial IoT evaluation. 2 3 The 120 mm x 100 mm carrier board provides HDMI and DisplayPort outputs, three MIPI CSI camera connectors, multiple USB interfaces, Gigabit Ethernet, M.2 Key M and Key E expansion, a 40-pin expansion connector and 12V power input. Qualcomm Linux is supported for application development and system evaluation. 4 5 Initial development kit samples are targeted for late November to early December 2026, subject to PCB availability, board bring-up and validation.
Applications:
TurboX I8275 Development Kit Applications
Industrial Applications
- Industrial Machine Vision
- AOI & Quality Inspection
- Industrial Robots
- Autonomous Mobile Robots (AMRs)
- Edge AI Computing
- Industrial AI Gateways
Commercial Applications
- Smart Cameras
- Video Conferencing Systems
- Smart Retail
- AI Kiosks
- Digital Signage
- Intelligent Video Analytics
| Category | Description* |
| SOM on Board | I8275 SMARC |
| Display Interfaces | 1 x HDMI OUT
1 x DP 1.4 |
| Camera Interface | 3 x MIPI-CSI 22-pin camera Connector |
| General Interfaces on Mother Board | 1 x USB 2.0 Type-A
3 x USB 3.0 Type-A 1 x 10/100/1000 Mbps Ethernet 1 x M.2 Key M 1 x M.2 Key E 1 x 4-pin PWM fan connector 1 x 40 pins Connector |
| Power Supply | DC in 12V |
| Operating Environment | Industrial:-40 C ~ +85 C commercial: -30 C ~ +75 C |
| Dimension | 120 mm x 100 mm |
| OS Support | Qualcomm Linux |
*Subject to change
