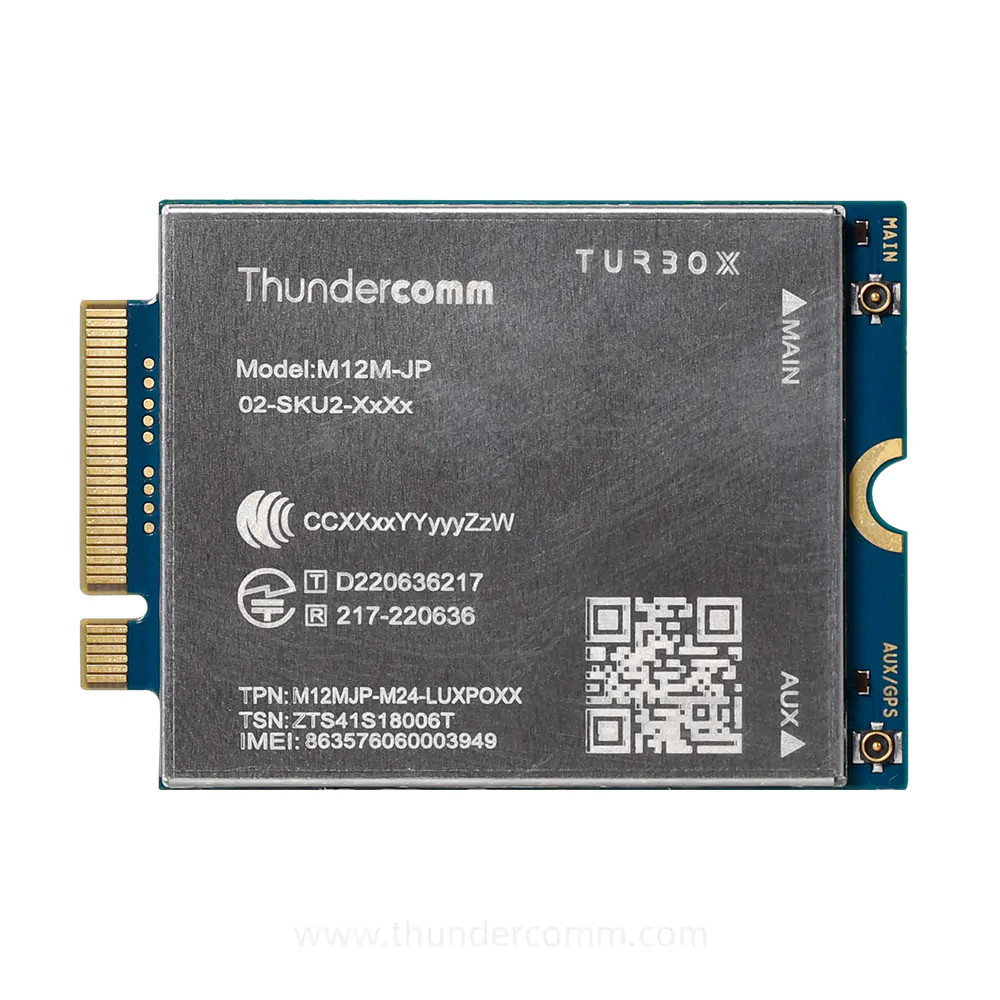

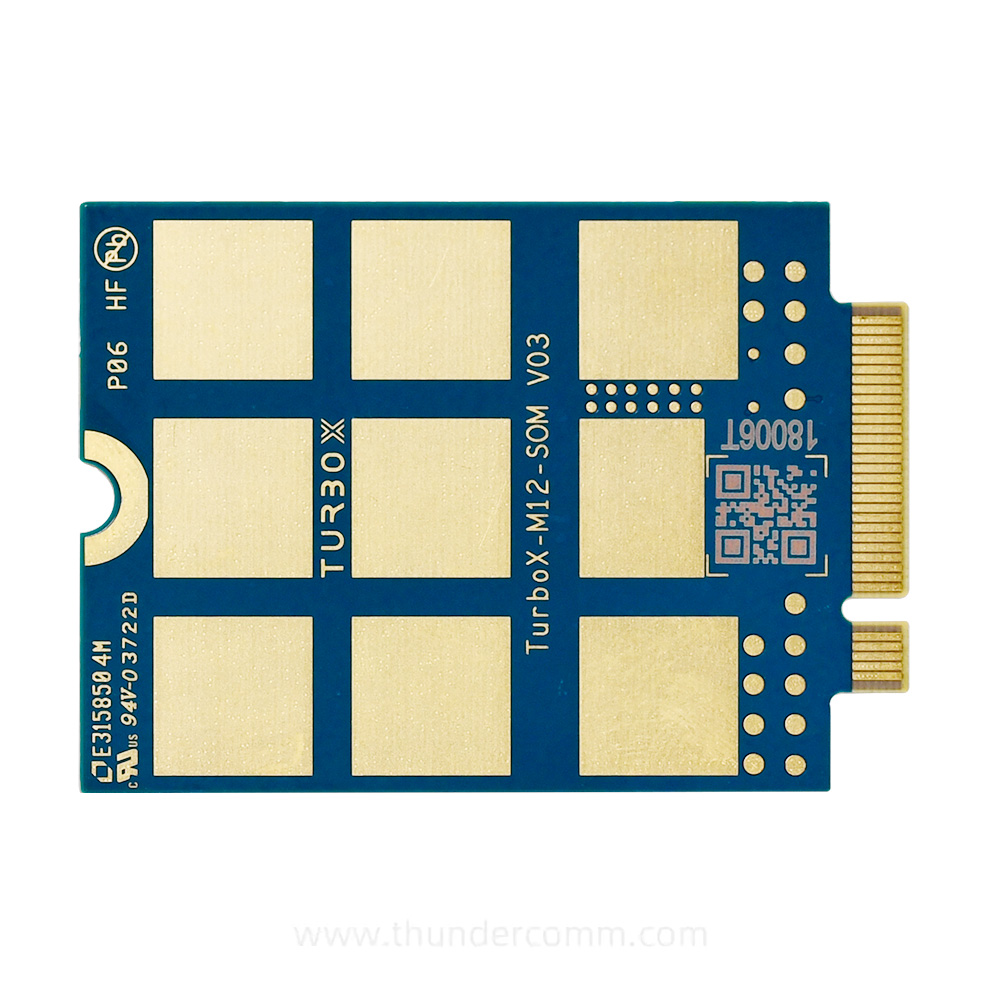

M12M-JP SOM

Thundercomm TurboX M12M series cellular module is an LTE Advanced Category 13 module integrates Qualcomm® Snapdragon™ SDX12 Chipset, targeted for the Japanese market. Compliant with 3GPP Release 12, it supports downlink peak throughput of 390Mbps and uplink 150 Mbps. Designed in M.2 Key B form factor, M12M is compatible with Thundercomm 5G T55M-EA and T62M-EA modules, facilitating migration between 4G and 5G by customers. With the integration of a rich set of protocols, software features, and industry-standard interfaces including I2C/SPI/PCM/UART /USB/eSIM (optional), etc., M12M can work with Windows/Ubuntu/Android host AP and perfectly fits a range of applications such as CPE, industrial router, home gateway, laptop, tablet, Industrial handheld etc.

Overview

M12M-JP SOM Applications

CPE/Router

Laptop

Tablet

Industrial Handheld

M12M-JP SOM Features

LTE-A Cat 13 with M.2 Key B Form Factor

B21 support targeted for Japanese market

2 separate SKUs for with/without built-in eSIM

M12M-JP SOM

Multi-constellation GNSS system support

Rich set of peripheral interfaces, e.g. PCIe Gen 2(RC), USB3.0, UART, SPI etc.

Linux, can work with Windows/Ubuntu/Android host AP

Specifications

Specification Category M12M-JP
SDX12 Chipset CPU Cortex-A7 up to 1.28 GHz with 256 KB L2 cache
DSP Hexagon DSP 6 with dual HVX-512 designed for 1 GHz Turbo
Power Management PMD9655
RF Transceiver SDR660
Memory DRAM/NAND 256MB LPDDR2 + 512MB NAND
Air Interface LTE (Cat13 UL/DL) B1/B3/B8/B18/B19/B21/B39/B41
WCDMA B1/B6/B8/B19
GNSS GPS/GLONASS/Galileo/BeiDou/QZSS L1
Data Rate Peak Download Speed 390Mbps Cat13 2CA
Peak Upload Speed 150Mbps UL 2CA
Connectivity and
Peripheral Interface
BLSP 4, 4 bits each; multiplexed serial interface functions
I2C/SPI/UART Supported (optional, multiplexed with UIM2)
Antenna Connector 2 Antennas: LTE Tx & Rx x1; LTE Rx Diversity & GNSS x1
UIM eSIM x 1 (MFF-XS) (optional) + UIM x 1 external
or UIM x 2 external
I2S/PCM Supported
USB 1 x USB 3.0 /USB 2.0
GPIOs Supported
Power ON/OFF Supported
FORCE USB BOOT Supported
Reset Pin Supported
JTAG Supported
Form Factor and
Dimensions
Form Factor M.2 Key-B Package
Dimensions 30mm x 42mm x 2.3mm
Power Voltage Range 3.1~4.4V, Typ. 3.8V
Temperature Range Operation -30°C to + 75°C
Storage -40°C to + 85°C
Software OS Support Linux, can work with Windows/LU/Android host AP
Open CPU Supported with comprehensive SDK
Environmental Standard Halogen Free, REACH, RoHS compliant
Certification JATE/TELEC/NCC/GCF/KDDI/Softbank/NTT DOCOMO

* Planning
