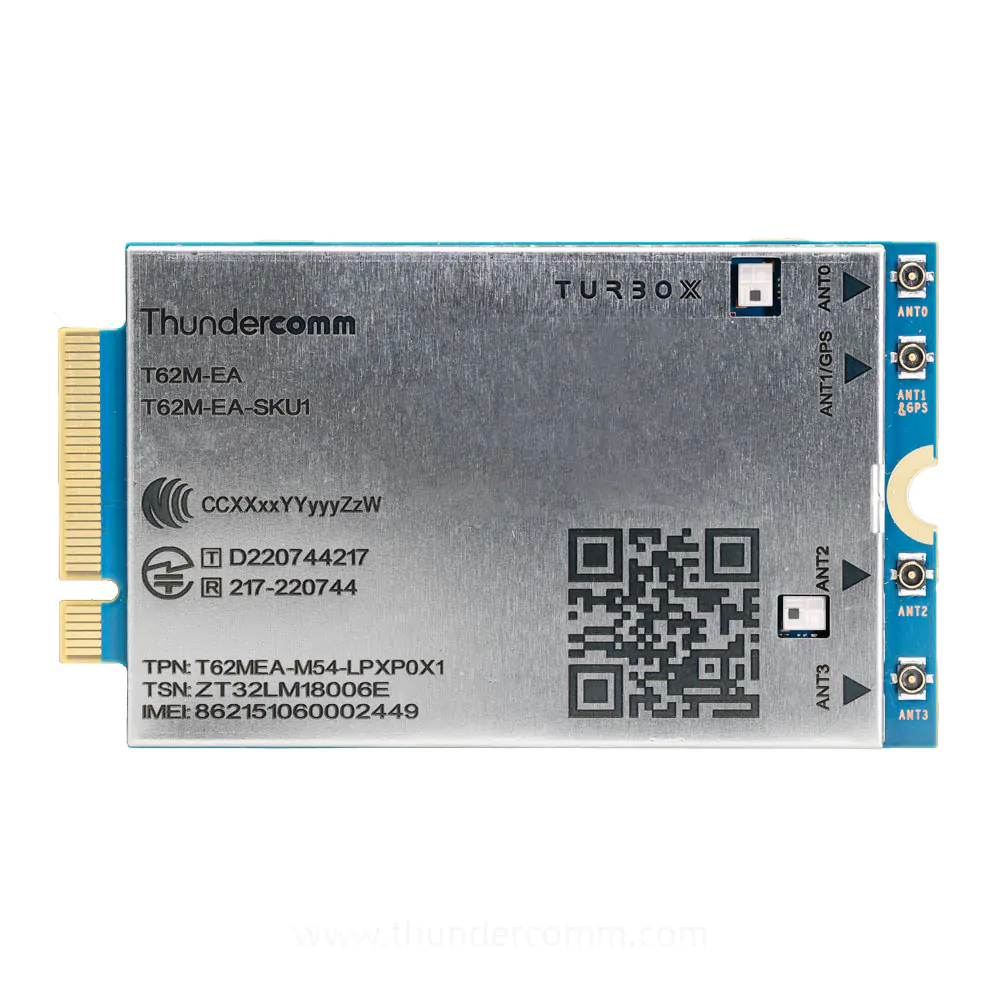

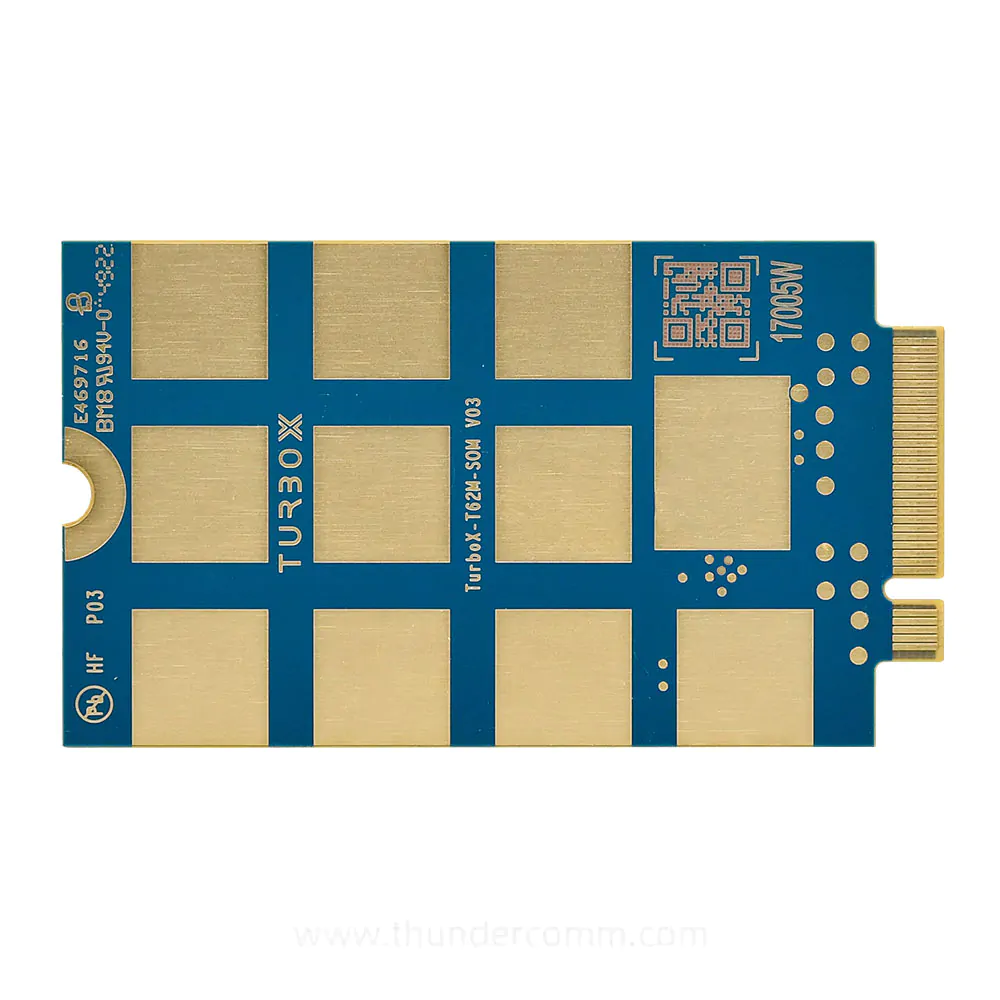

T62M-EA SOM

(For EMEA and APAC regions)

Documents

The TurboX T62M-EA cellular module integrates Qualcomm® Snapdragon™ SDX62 5G Modem-RF system, supports 5G Sub-6 GHz SA and NSA mode and backwards compatible with 4G/3G network.

Integrating 4nm process of the SDX62 chipset, T62M-EA is 3GPP Release 16 compliant with superior performance and power efficiency. It can help ODM/OEM easily bring fast connected devices to global market and perfectly apply to laptop/personal computers with rich set of Windows OS related/Security features, also CPE/MIFI/Industrial routers, mission-critical applications (ambulance, security, robotics, AR/VR, livestreaming etc.) as well as remote healthtech (surgery, diagnostic, assistance, etc.) devices.

Overview

T62M-EA SOM Applications

CPE/Router

PC/Laptop

Automated Guided Vehicle

Robotics

AR/VR

T62M-EA SOM Features

Integarted 5G/4G and 3G support

High speed interface drivers for multi-OS

PCIe, USB 3.1 or Ethernet drivers for Android/Windows/Linux

5G SA/NSA operation modes

T62M-EA SOM

Global 5G spectrum bands supported

5G Peak Download Speed: 3.2Gbps

Download MIMO: 4 x 4 MIMO

OpenCPU with Comprehensive SDK

Specifications

Specification Category Description
SDX62 Chipset CPU Arm Cortex-A7 up to 1.8 GHz
DSP Qualcomm® Hexagon™ DSP processor   at up to 1.5 GHz
Power Management PMX65
RF Transceiver SDR735
Memory DRAM/NAND 1) 4Gb DDR4 + 4Gb NAND
Air Interface 5G NR Sub-6GHz:   n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78/n79
LTE B1/B3/B5/B7/B8/B18/B19/B20/B26/B28A/B28B/B38/B40/B41/B42/B43
WCDMA B1/B5/B6/B8/B19
GNSS GPS/Beidou/GLONASS/Galileo/QZSS, L1/L5   bands supported
Data Rate Peak Download Speed 5G NR: 3.2Gbps DL 4×4 MIMO
Peak Upload Speed 5G NR: 1.1Gbps 2×2 MIMO
Connectivity and

Peripheral Interface

 Antenna Connector 4x sub-6GHz (GNSS multiplexed)
UIM 1x USIM + 1x eSIM (Optional)
PCI express 1x Gen3 1-lane (2-lane is   optional)
I2S 1x I2S/PCM
USB 1x USB 3.1 SS/USB2.0 HS
Form Factor M.2 Key B 52.0mm x 30.0mm x 2.15mm
Certification Regulatory & Carrier CCC*/SRRC*/KC*/JATE/TELEC/CE*/NCC/GCF/LGU+*/KT*/SKT*/NTT DOCOMO/Softbank/KDDI
Weight – 8.15g ±0.2g
Power Voltage Range 3.3V#~4.35V, Typ. 3.8V
Temperature Range Operation -30°C ~ +75°C
Storage -40°C ~ +85°C
Software Operating System Linux, can work with   Windows/Ubuntu/Android host AP

1) Please note that storage devices such as UFS, eMMC, NAND, etc. have a limit to the total amount of data that can be written. Exceeding this limit can cause damage to the storage device.

* Planning.

# The lowest voltage tolerance is ±5% according to PCI Express M.2 Spec.
