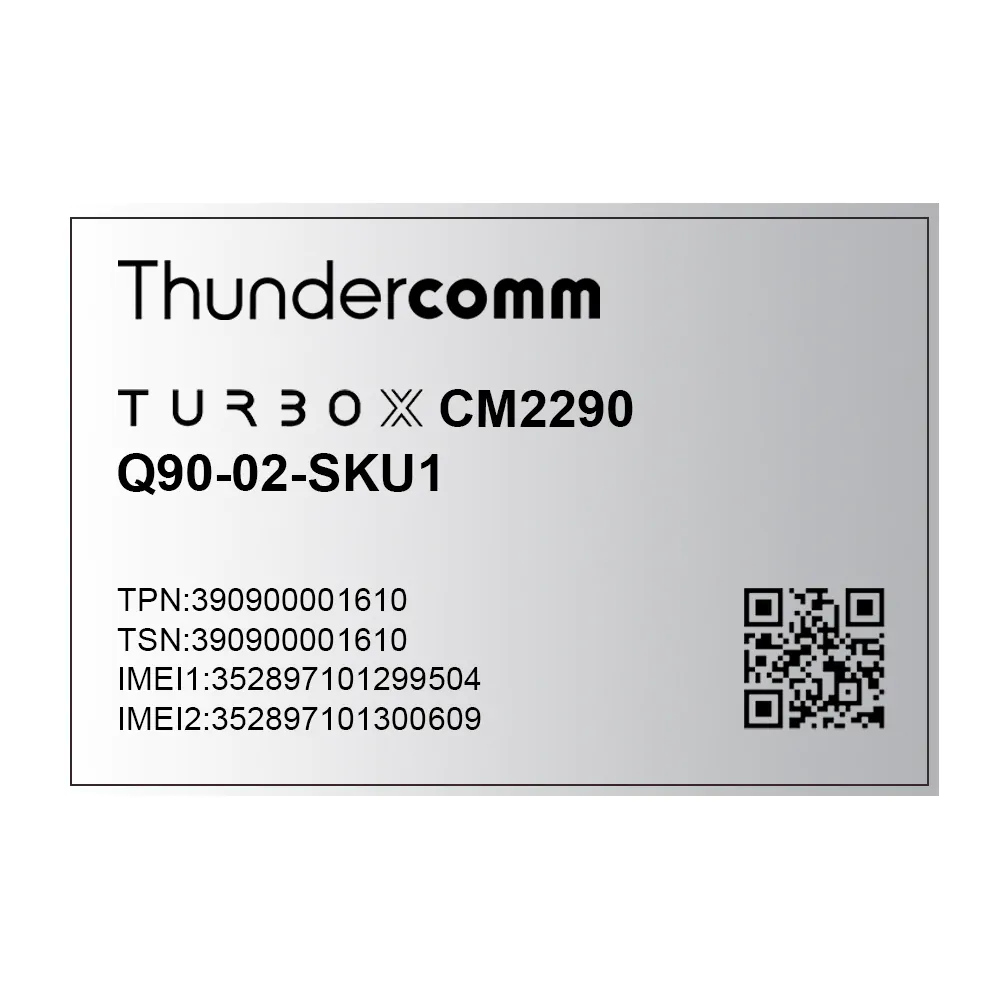

The C2290/CM2290 SOM (System on Module) is designed based on the Qualcomm® QCM2290 platform. It brings high-value features to entry-level devices, delivering greater performance, higher graphics capabilities, better quality images, and improved power performance. The form factor of the module is 34mm*35mm (C2290) and 51mm*35mm (CM2290) LGA package which can be fit into devices such as retail POS (Point-of-sale), industrial handheld, tracking and camera applications, etc. It is an ideal platform for both industrial and consumer applications requiring high rate multimedia function, and can help customers rapidly develop cost-effective cellular devices to the market.

Overview

CM2290/C2290 SOM Applications

Dash Camera

Surveillance Camera

POS

Digital Signage

Vending Machine

CM2290/C2290 SOM Features

Discrete Memory

Easy to change the memory configuration to save cost

Video

1080P@30FPS encode / 1080P@30FPS decode

Always-on Processor

Support always-on use cases at reduced power level

CM2290/C2290 SOM

Global Multi-bands

LTE Cat 4 with 150Mbps DL and Cat5 with 75Mbps UL

Display Support

HD+, 720 × 1680@60 Hz, 10-bit end-to-end, and up to four hardware layer composition

Dual image signal processors (ISPs)

Dual ISP@30FPS ZSL with 13MP + 13MP or 21MP

Specifications

CM2290-EA CM2290-NA C2290
Region/Operator EMEA, Asia North America Global
Platform Qualcomm® QCM2290 Qualcomm® QCM2290 Qualcomm® QCS2290
Quad-core Arm Cortex-A53, 64-bit, 2.0GHz Quad-core Arm Cortex-A53, 64-bit, 2.0GHz Quad-core Arm Cortex-A53, 64-bit,   2.0GHz
Adreno™ 702 GPU Adreno™ 702 GPU Adreno™ 702 GPU
Hexagon™ QDSP6 v66 Hexagon™ QDSP6 v66 Hexagon™ QDSP6 v66
Memory LPDDR4x 1GB + eMMC 8GB(Linux   only)
LPDDR4x 2GB + eMMC 16GB (default)
LPDDR4x 3GB + eMMC 16GB		 LPDDR4x 1GB + eMMC 8GB(Linux   only)
LPDDR4x 2GB + eMMC 16GB (default)
LPDDR4x 3GB + eMMC 16GB		 LPDDR4x 2GB + eMMC 16GB (default)
LPDDR4x 3GB + eMMC 16GB
OS Android 11(R), 13(T), Linux Android 11(R), 13(T), Linux* Android 11(R), 13(T)
Size & Form Factor 51mm x 35mm x 2.9mm / LGA 51mm x 35mm x 2.9mm / LGA 34mm x 35mm x 2.9mm / LGA
Operation Temperature –25℃ ~ +75℃ –25℃ ~ +75℃ –25℃ ~ +75℃
LTE (Cat4   DL/Cat5 UL) FDD: B1/B2/B3/B5/B7/B8/B20/B28(A+B) FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71 –
TDD: B34/B38/B39/B40/B41 TDD: B41 –
WCDMA B1/B2/B5/B8 – –
GSM 850/900/1800/1900   MHz – –
WLAN 802.11a/b/g/n/ac 802.11a/b/g/n/ac 802.11a/b/g/n/ac
Bluetooth BT 5.0 BT 5.0 BT 5.0
GNSS GPS, Glonass, BeiDou, Galileo, QZSS, and SBAS GPS, Galileo, and SBAS GPS, Glonass, BeiDou, Galileo, QZSS, and SBAS (Reserve   GNSS_IQ to extend support Qualcomm WGR7640)
Display Interfaces 1x MIPI-DSI 4-lane, support HD+(720 × 1680)@60FPS 1x MIPI-DSI 4-lane, support HD+(720 × 1680)@60FPS 1x MIPI-DSI 4-lane, support HD+(720 × 1680)@60FPS
Camera Interface 2x MIPI-CSI, 4 + 4 or 4 +2+1, D-PHY 1.2 at 2.5 Gbps per lane; 2x MIPI-CSI, 4 + 4 or 4 +2+1, D-PHY 1.2 at 2.5 Gbps per lane; 2x MIPI-CSI, 4 + 4 or 4 +2+1, D-PHY 1.2 at 2.5 Gbps per lane;
2x ISP (13 MP + 13 MP or 21MP) @30FPS ZSL 2x ISP (13 MP + 13 MP or 21MP) @30FPS ZSL 2x ISP (13 MP + 13 MP or 21MP)@30FPS ZSL
Video Encode: 1080P@30FPS (H.265/H.264) Encode: 1080P@30FPS (H.265/H.264) Encode: 1080P@30FPS (H.265/H.264)
Decode: 1080P@30FPS (H.265/H.264/VP9) Decode: 1080P@30FPS (H.265/H.264/VP9) Decode: 1080P@30FPS (H.265/H.264/VP9)
Other Interface 1 x USB 2.0 or USB 3.1; 9 x QUP;
1 x SD Card; 2 x UIM; 1x MI2S, 4 x DMIC, 3 x AMIC, GPIOs		 1 x USB 2.0 or USB 3.1; 9 x QUP;
1 x SD Card; 2 x UIM; 1x MI2S, 4 x DMIC, 3 x AMIC, GPIOs		 1 x USB 2.0 or USB 3.1; 9 x QUP;
1 x SD Card; 1x MI2S, 4 x DMIC, 3 x AMIC, GPIOs
Regulatory CE/GCF*/JATE*/TELEC*/KC* FCC/IC/PTCRB FCC*/CE*/IC*/JATE*/TELEC*/KC*
Other Regulatory RoHS/REACH/WEEE/HF RoHS/REACH/WEEE/HF/TSCA RoHS/REACH/WEEE/HF

* Planning or in progress
