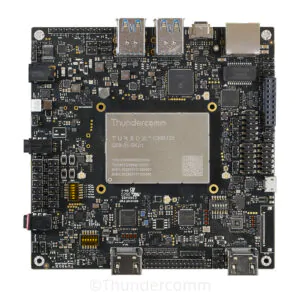

CM6125/C6125 Development Kit
The Development Kit is designed based on the pin2pin compatible SOMs: CM6125/C6125. It can support the development of Video Conference, Dash Cam, Robotics, Handheld devices,etc. Its rich hardware interfaces and software SDK can help customers validate the function and build the prototype quickly.
Applications:
| Category | Description |
| Platform | CM6125/C6125 SOM |
| Camera Interfaces | Dual 14-bit ISP,3 x MIPI-CSI 4lane Connectors 1 x OV13B10 Camera 1 x OV08A10 Camera 1 x IMX415 1 x HDMI In |
| Display Interfaces | 1 x 5.45“ TFT-LCD(earlier version: 5. 0”); 1 x LVDS; 1 x Display Port; 1 x HDMI Out(need rework);; |
| Audio Interfaces | 2 x 3.5mm headset 4 x Digital Mics (from External Codec) 2 x Digital Mics (from Internal) 2 x Speaker out (from External Codec) 1 x Speaker out (from Internal) |
| Other Interfaces | 1 x USB 3.0 Type-C; 4 x USB 3.0 Type-A; 1 x Micro USB(For Debug) 2 x SIM Card; 1 x PWM; 1 x SD card; 1 x RJ45 1 x RTC;1 x Super Cap; 1 x Battery Connector 1 x RS232/RS485/TTL; 1 x NFC 1 x ALS/PROXIMITY SENSOR; 1 x ACCELEROMETER+GYRO Sensor 1 x Magnetic Sensor; 1 x Pressure Sensor 2 x LTE Antennas; 1 x Wi-Fi/BT Antenna; 1 x GNSS Antenna |
| Dimensions | 120mm x 120 mm |
| OS Support | Android 10 |
| Catagory | Class | Type | Document Name |
| Public Documents | SOM | Product Brief | [tc-h-1114.2-en]_TurboX_C6125_CM6125_SOM_Product_Brief_V1.4.2.pdf |
| Dev Kit | Quick Start Guide | [tc-h-2111]_TurboX_C6125_CM6125_DK_Quick_Start_Guide_V1.1.pdf | |
| Private Documents | Get the Private Documents > | ||
Get Support
Help Center
Technical Support
(for cusmtomer)
CM6125 Development Kit
The Development Kit is designed based on the pin2pin compatible SOMs: CM6125. It can support the development of Video Conference, Dash Cam, Robotics, Handheld devices,etc. Its rich hardware interfaces and software SDK can help customers validate the function and build the prototype quickly.
$599
C6125 Development Kit
The Development Kit is designed based on the pin2pin compatible SOMs: C6125. It can support the development of Video Conference, Dash Cam, Robotics, Handheld devices,etc. Its rich hardware interfaces and software SDK can help customers validate the function and build the prototype quickly.
$599
TurboX CM6125/C6125 Development Kit
TFT-LCD Display Module
5.45" HD TFT-LCD Display Module with Multi Touch Panel.
Package List: Display Module
$150
