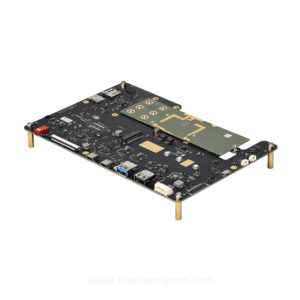

CT7280 Development Kit

Thundercomm TurboX CT7280 Development Kit is designed based on CT7280 QCARD. This is the latest IoT platform integrated with Snapdragon® 7c+ Gen 3 (SC7280) which is a 6 nm processor with superior performance and power efficiency, as well as high AI capability (8 TOPS). TurboX CT7280 support Wi-Fi 6E with DBS, Long Range Bluetooth and optional 5G NR connection capabilities. It also has a rich set of peripheral interfaces, including both USB 3.1 and USB 2.0 concurrency and PCIe. TurboX CT7280 supports Windows 11 and Windows 11 IOT. The CT7280 QCARD is a high performance Windows SOM for building PC, Tablet, Mini PC, Industrial PC , POS, providing customers with hardware interfaces and software SDK to validate functions and build the prototype quickly.


TurboX CT7280 Development Kit Applications



Mini PC

Industrial PC


Category Description
Platform Snapdragon® 7c+ Gen 3 (SC7280)
Camera Interfaces Spectra ISP 3x 22MP, 5x CSI
Display Interfaces Primary: FHD+ @ 144 DSI or eDP1.4
External:4K @60 DSC v1.2DP over USB3
Audio Interfaces 3× DMICS, 1× Headset, 1× I2S
Keypad Interfaces IT8987
USB Interfaces 1× USB3.1 Gen 1, 1× USB2.0
PCIe Interfaces 2×PCIe Gen3 (3 lanes)
WLAN Interfaces WLAN 2×2
Connectivity 5G NR Sub-6G + LTE (optional)
Power Interfaces DP Over Type-C
Other Interfaces 1× I2C, 1× SPI, 1× UART, 1× JTAG
Dimensions 200mm × 135mm
OS Support Windows11 / Windows 11 IOT
Type Category-1 Catagory-2 Document Name
Public Documents SOM Product Brief [tc-M2-1110-en]_TurboX CT7280 SOM_Product Brief_V1.0.pdf
Dev Kit Quick Start Guide [tc-M2-2110]_TurboX CT7280 DK_Quick Start Guide_V1.0.pdf
Private Documents Get the Private Documents >

Get Support

Help Center

Technical Support

(for cusmtomer)

TurboX CT7280 Development Kit
Package List: • Mainboard + CT7280 QCARD + USB Cable + Power Cable : $1999
• LCD & Cable : $300


TurboX CT7280 Development Kit
