EB5 Edge AI Station

EB5 Edge AI Station is a high-performance AI edge computing device with support for 5G and Wi-Fi 6. It adopts an industrial-grade fanless design and is deeply optimized at the operating system level to maximize product performance. Embedded with the built-in edge component OSware.Edge, it provides customers with device management, video management, AI algorithm configuration, application upgrades, edge-cloud collaboration, customization, and multi-cloud connectivity. EB5 delivers superior 15 TOPS of AI performance and up to 24 channels full HD video processing, which can be widely used in smart retail, smart buildings, smart factories, smart transportation, and many other edge AI application scenarios.

Applications:

Amazon Qualified Device
EB2/EB3G2/EB5/EB6S Edge AI Station are AWS-qualified edge devices. Customers can use AWS IoT Greengrass on those Edge AI Stations, to extend cloud capabilities to on-premise devices, which can be closer to the source of information to collect and analyze data, autonomously respond to local events, and communicate securely with each other on the local network.
AWS Partner Solutions Finder >

EB5 Edge AI Station Features

Premium performance with super high AI computing power

For intelligent edge computing, EB5 provides 15 TOPS super high AI computing power and supports up to 24 channels of 1080P HD video decoding, which is suitable for multi-channel video streaming AI analysis scenarios such as buildings, communities, schools, factories, and retail.

Deeply optimized streaming media AI analysis service

With built-in deeply optimized streaming media AI analysis service TurboX Stream, EB5 features image zero copy, hardware acceleration, batch reasoning, algorithm sharing, and supports standard libraries such as SPL, ALG, AND MBC, making AI algorithm deployment, verification, and delivery easy and fast.

Visual configuration of AI algorithms and applications

EB5 provides a visual edge management system for device management, video previewing, algorithm configuration, alarm center, and application upgrade. It also provides RESTful APIs and supports interconnection with third-party systems.

One-site management through End-edge-cloud

With the intelligent edge device and application management platform IoT Harbor, the remote monitoring and analysis of multiple EB5 operating status and resource usage can be realized to facilitate user operation and management. IoT Harbor provides RESTful APIs to support multi-cloud connection.

Industrial design for harsh conditions

Robust industrial level quality, fanless design, ultra-low power consumption, flexible deployment, plug and play, safe and reliable, easy to cope with any complex environment challenges.

Flexible expansion of rich interfaces

EB5 supports 5G, Wi-Fi 6, adaptive Gigabit Ethernet connections, RS232, RS485, CAN, USB3.0 and other industrial communication interfaces. It also supports SD cards, M.2 SSD expansion, covering different intelligent edge application scenarios.

EB5 Edge AI Station Scenarios

Smart Retail

Smart Building

Smart Factory

Smart Transportation

Smart Grid

Category Description
Platform OS Linux/Android
SoC Qualcomm® QRB5165 / Qualcomm® QCS8250
Qualcomm® Artificial Intelligence (AI) Engine (AI Performance: 15 TOPS) CPU: Qualcomm®  Kryo™ 585 CPU, CPU Clock Speed: Up to  2.84 GHz
GPU: Qualcomm® Adreno™ 650 GPU
DSP: Qualcomm® Hexagon™ 698 Processor
Image Processor Qualcomm®  Spectra™ 480 image processing
Video Processor Qualcomm®  Adreno™ 665 VPU, H264 & H265 codec support; video decoding: 8k@60fps;  video encoding: 8k@30fps
System  Memory RAM 8GB, LPDDR5
Display Output 2x HDMI out,  1080p@60fps
Storage Flash 128GB UFS3.0 on board
Expansion 1x Micro SD Card slot, support M.2 2280 NVME SSD (SSD optional)
I/O USB 4x USB 3.0 Type A , 1x USB3.1  Type C(OTG)
Micro SD 1x Micro SD slot
SIM 1x Nano SIM card slot
Ethernet 2x Gigabit  ethernet(10/100M/1000M)
COM Port 2x RS232, 2x  RS485
CAN 2x CAN bus
DI/DO 8 DI/DO(4 DI, 4  DO)
Wireless Connectivity WIFI 802.11a/b/g/n/ac/ax, 2x2 MIMO
5G M.2 5G module(optional),  multimode support: 2G/3G/4G//5G NR sub-6
Antenna 6x Antenna connector(2x for WIFI,4x for 5G)
Audio Audio 1x MIC, 1x Earphone
Debug Debug Port 1x Micro USB( for debug)
Input&Indicators Buttons Power key, Reset key
Leds Power status, WIFI status, 5G Status
Others RTC Battery CR2032 RTC Battery
Power DC Input DC 12V to 24V
Certification
CE NB, FCC, JATE/TELEC, RoHS/Reach/WEEE
Catagory Class Type Document Name
Public Documents EB5 Edge AI Station Product Brief Thundercomm_EB5_Flyer_20220317.pdf
Private Documents Get the Private Documents >

Get Support

Help Center

Technical Support

(for cusmtomer)

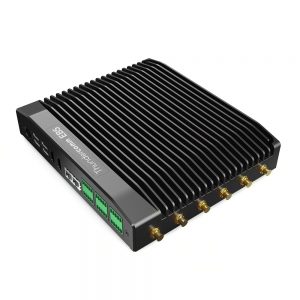

EB5 Edge AI Station (WiFi Version)
Features powerful AI and video decode capabilities. It supports device-edge-cloud synergy, remote algorithm and application deployment, FOTA and DM. Can be widely used in complex environments like building, healthcare, retail, manufacture, transport and city, etc.
Package List: EB5 Edge AI Station × 1, AC adaptor × 1, AC cable × 1, WIFI antenna × 2, Phoenix terminal × 6, Screw × 4.
EB5 Edge AI Station (5G Version)
Features powerful AI and video decode capabilities. It supports device-edge-cloud synergy, remote algorithm and application deployment, FOTA and DM. Can be widely used in complex environments like building, healthcare, retail, manufacture, transport and city, etc.
Package List: EB5 Edge AI Station × 1, AC adaptor × 1, AC cable × 1, WIFI antenna × 2, 5G antenna × 4, Phoenix terminal × 6, Screw × 4.
